Oil Fill Plug Installation

  1. GM2371788Courtesy of GENERAL MOTORS COMPANY

    Install a NEW transfer case oil fill plug (1).

  2. Once the transfer case has been filled with oil, tighten the oil fill plug to 40 N.m (30 lb ft).

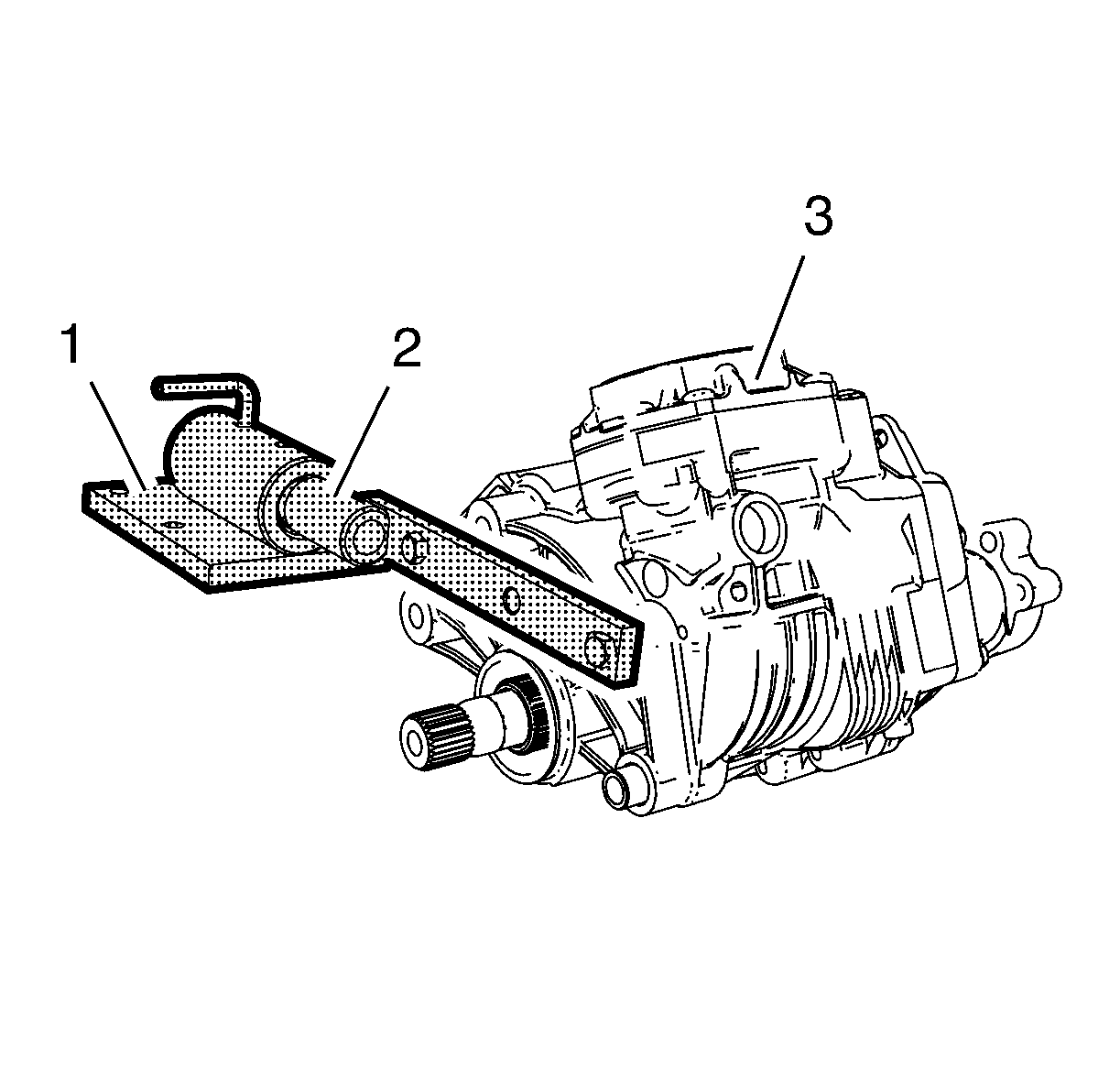

  3. GM2372719Courtesy of GENERAL MOTORS COMPANY

    Remove the transfer case (3) from DT-622-A  bracket (2) and DT-113-2-A  holder (1).
