Turn Signal Switch Bracket Replacement

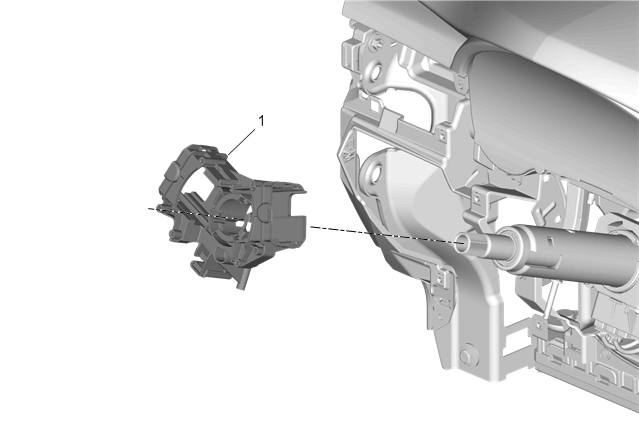

GM2768284Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Airbag Coil Replacement
  2. Turn Signal Switch Replacement
  3. Windshield Wiper and Windshield Washer Switch Replacement
1 Turn Signal Switch Bracket
Procedure
Release the plastic retaining tabs to release the turn signal switch bracket from the steering column.
