Steering Column Upper Trim Cover Replacement

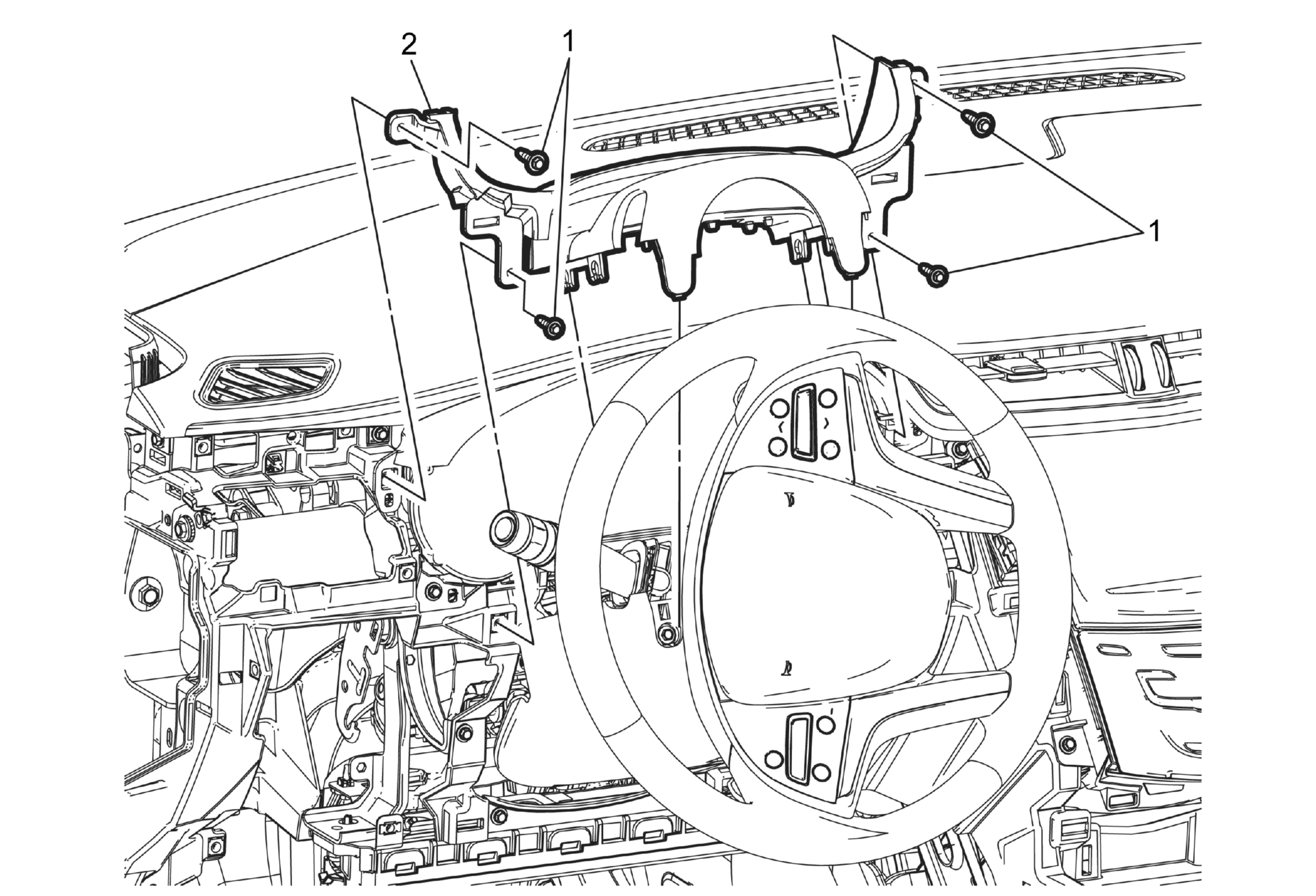

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the Instrument Panel Knee Bolster. Refer to Instrument Panel Knee Bolster Replacement . |
|
| 1 | Instrument Panel Cluster Trim Plate Bolts (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Steering Column Upper Trim Cover Procedure Use a flat bladed plastic trim tool in order to release the tabs securing the upper trim cover to the lower trim cover. |
