Steering Column Dash Inner Seal Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Intermediate Steering Shaft @ Steering Gear - Separate - Intermediate Steering Shaft Replacement

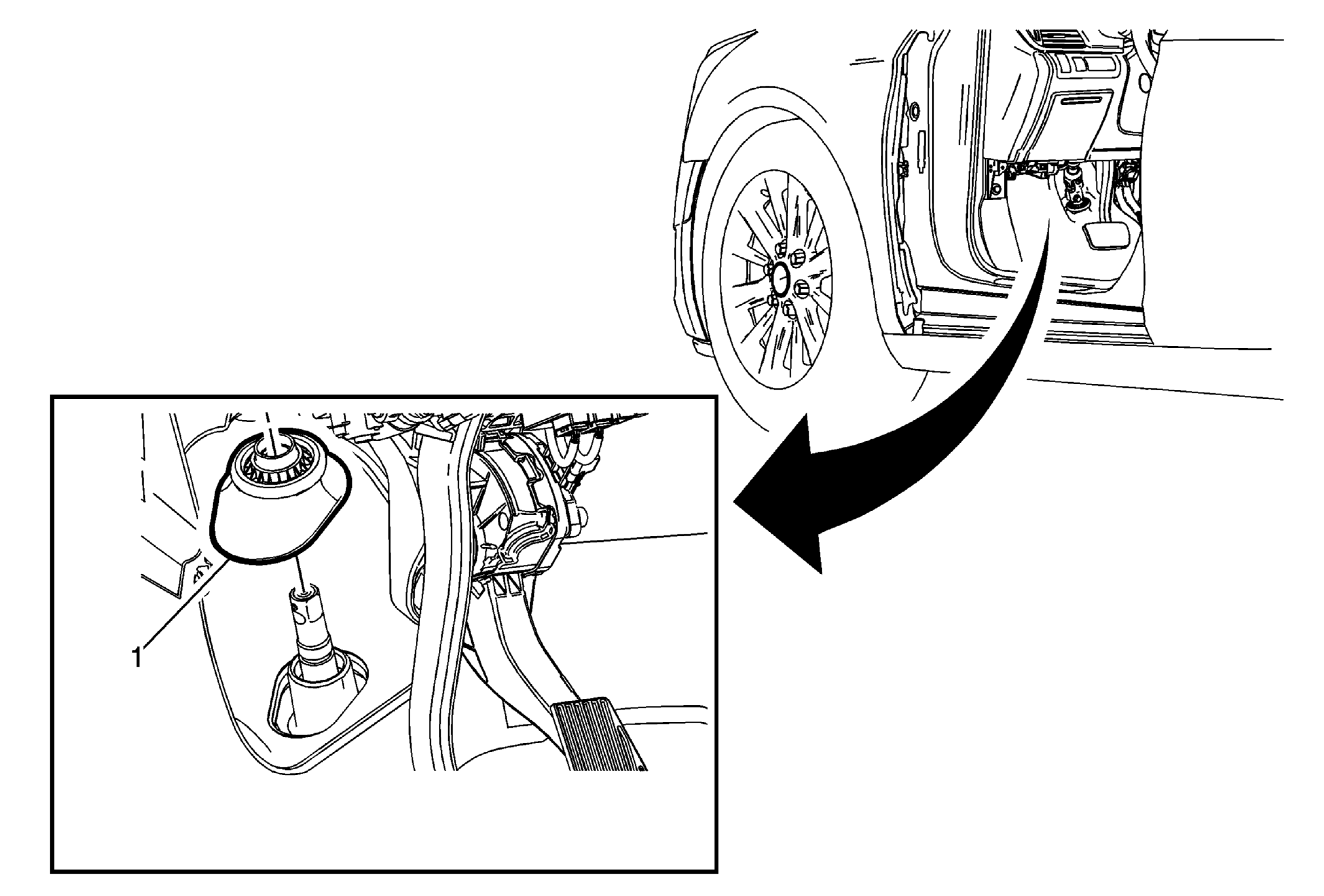

1	Steering Column Dash Inner Seal Procedure  Position the steering column dash inner seal over the steering gear and on the dash panel.Ensure the lip on the seal is positioned correctly.
