Adjust Link Replacement

WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

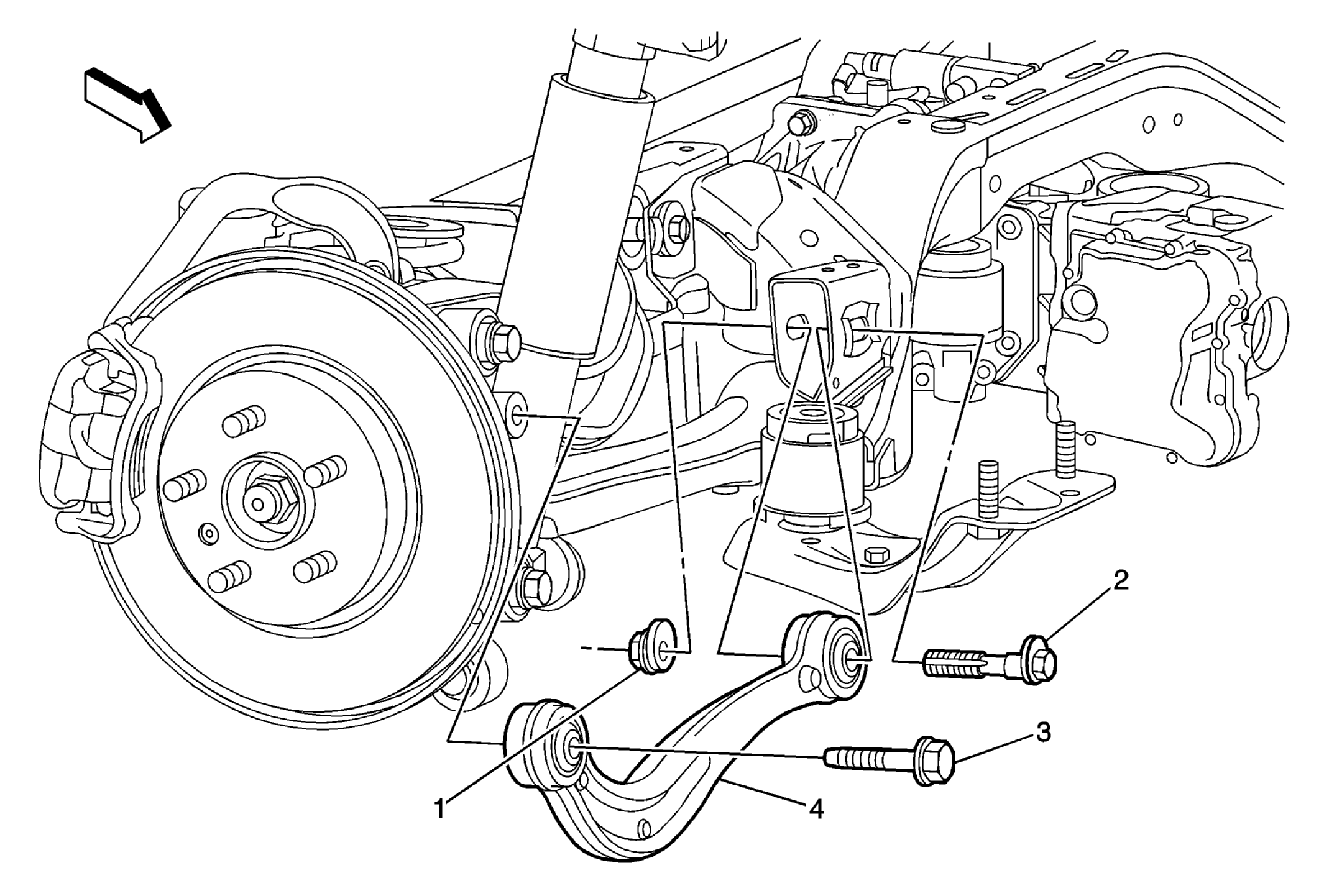

Callout	Component Name
Preliminary Procedures Raise and suitably support the vehicle. Lifting and Jacking the Vehicle Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation (With J64)Tire and Wheel Removal and Installation (With J55)
1	Rear Suspension Adjust Link Nut Procedure Remove the nut. Tighten 150 N.m (111 lb ft)
2	Rear Suspension Link Inner Bolt CAUTION: Refer to Fastener Caution . Procedure Lower the fuel tank, if necessary, to get access to rear suspension adjust link bolt. Fuel Tank Replacement (FWD)Fuel Tank Replacement (AWD) Remove the bolt.
3	Rear Suspension Link Outer Bolt CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. Procedure Remove and discard the bolt and nut. DO NOT reuse, replace with NEW only. Tighten First Pass: 150 N.m (111 lb ft) Final Pass: plus 60 - 75 degrees
4	Rear Suspension Adjust Link CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. Procedure Use a proper jack stand to load the knuckle when tightening the fasteners. After installation, check the rear alignment. Wheel Alignment Measurement
