Installation Procedure

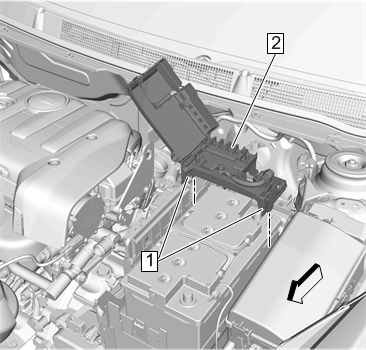

  1. GM4807612Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block (2) - Install

  2. Retaining Tab (1) - Engage [2x]

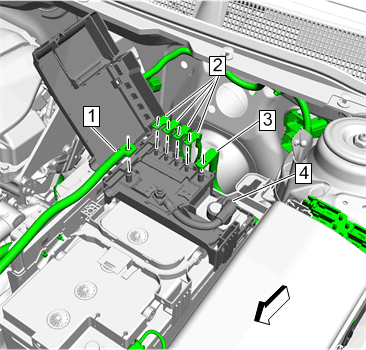

  3. GM4807611Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Battery Positive Post Clamp Nut (4) - Tighten 4.5 N.m (40 lb in)

  4. Body Harness Terminal (2) - Install [4x]
  5. Front Compartment Fuse Block Cable (3) - Install
  6. Battery Positive Cable (1) - Install

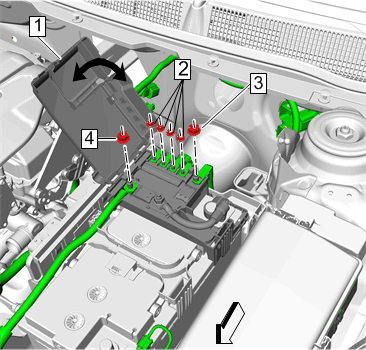

  7. GM4807610Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Nut(4) - Install and tighten 12 N.m (106 lb in)

  8. Body Harness Fastener (2) - Install and tighten [4x] 9 N.m (80 lb in)
  9. Front Compartment Fuse Block Cable Nut (3) - Install and tighten 12 N.m (106 lb in)
  10. Fuse Block Cover (1) - Close
  11. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
