Rear Seat Heater Control Module Replacement

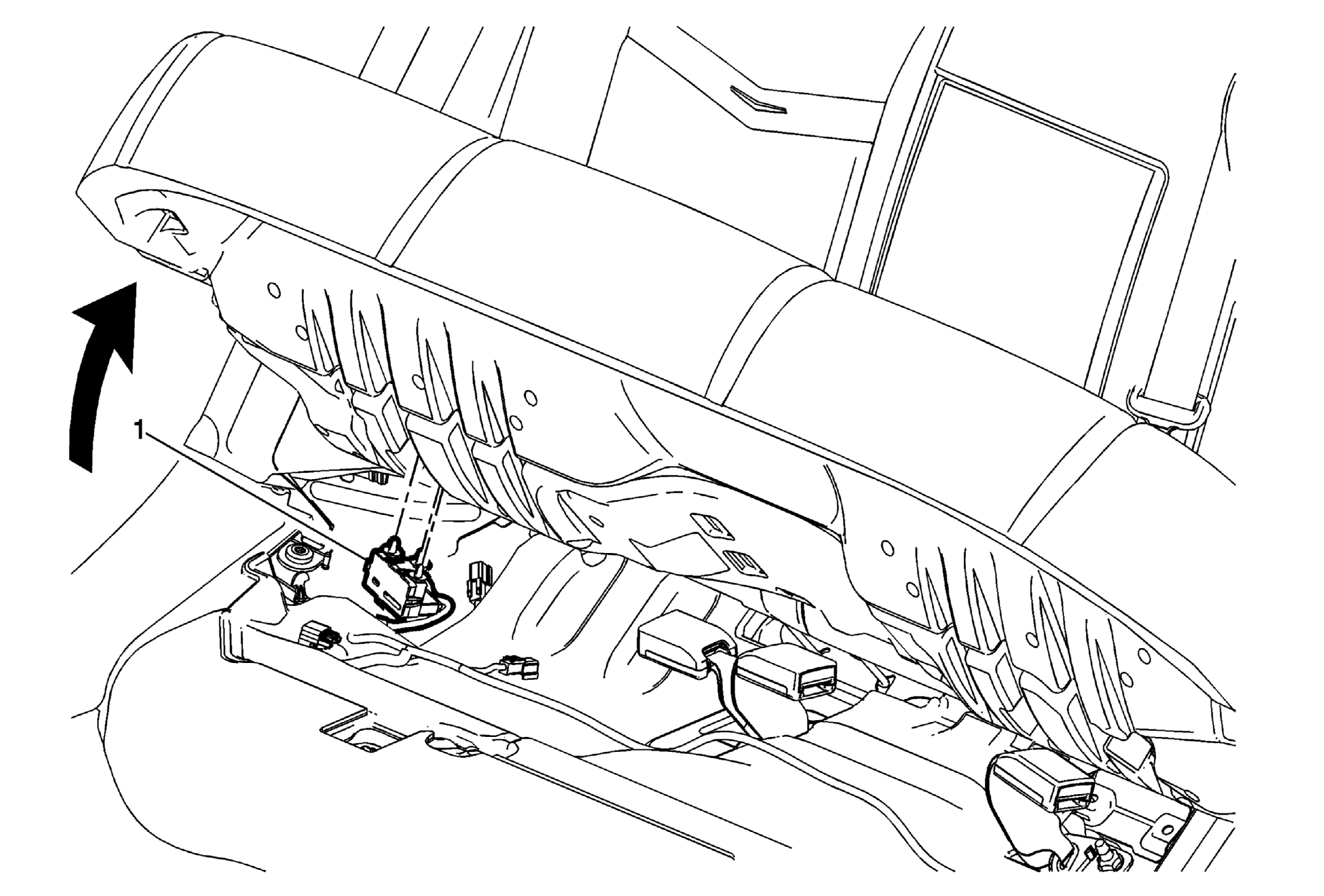

GM2766805Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
1 Rear Seat Heater Control Module
Procedure
Disconnect the electrical connector.
