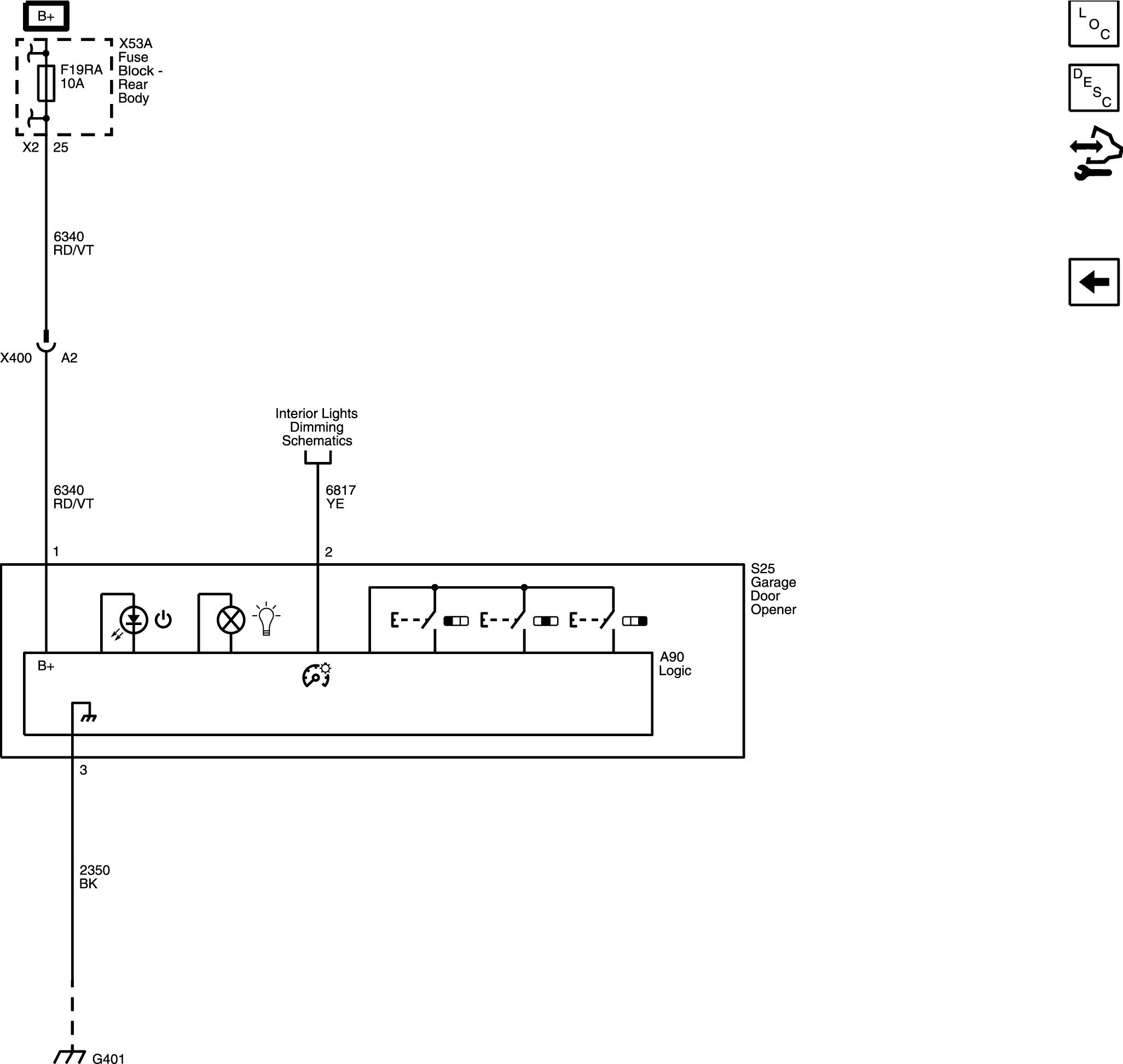

Home >> Cadillac >> 2019 >> XTS Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions System >> Schematic Wiring Diagrams >> Remote Function System Wiring Schematics >> Garage Door Opener
