Rear Compartment Lid Release Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement .

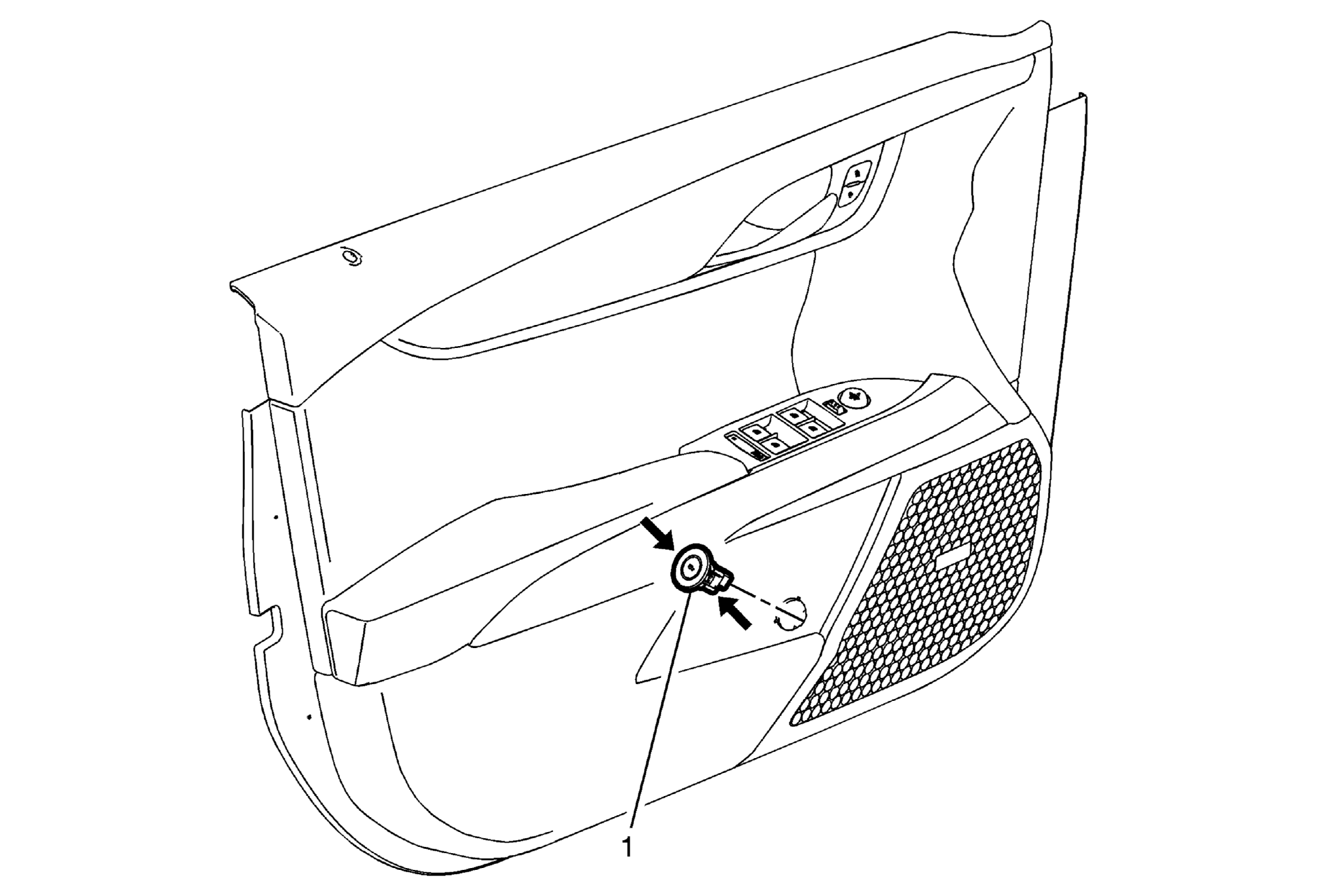

1	Rear Compartment Lid Release Switch Assembly Procedure Disconnect the electrical connector. Push the 2 tabs in to release the switch from the front side door trim.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement .

Rear Compartment Lid Release Switch Assembly

Procedure
