Rear Compartment Lid Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

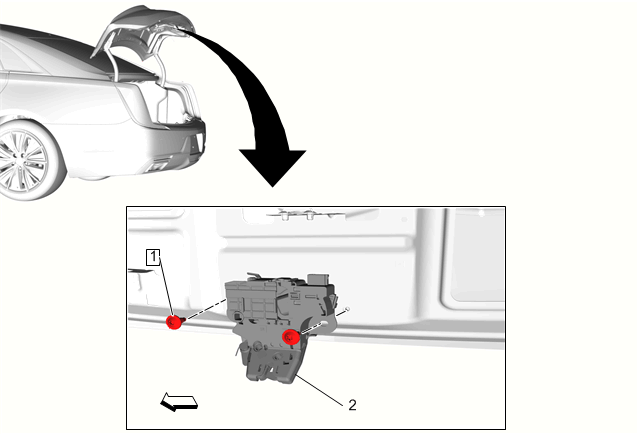

Callout	Component Name
Preliminary Procedure Rear Compartment Lid Inner Panel Trim Replacement
1	Rear Compartment Lid Latch Bolt[2x] CAUTION: Refer to Fastener Caution . Tighten 9N.m (80 lb in)
2	Rear Compartment Lid Latch Procedure Disconnect the rear compartment lid latch handle cable from the rear compartment lid. Disconnect the electrical connector. Lift the lid latch up and then remove.

Callout

Component Name

Rear Compartment Lid Latch Bolt[2x]

CAUTION:

Tighten
9N.m (80 lb in)

Rear Compartment Lid Latch

Procedure

Disconnect the rear compartment lid latch handle cable from the rear compartment lid.
Disconnect the electrical connector.
Lift the lid latch up and then remove.
