Front Side Door Outside Handle Insert Replacement

Courtesy of GENERAL MOTORS COMPANY

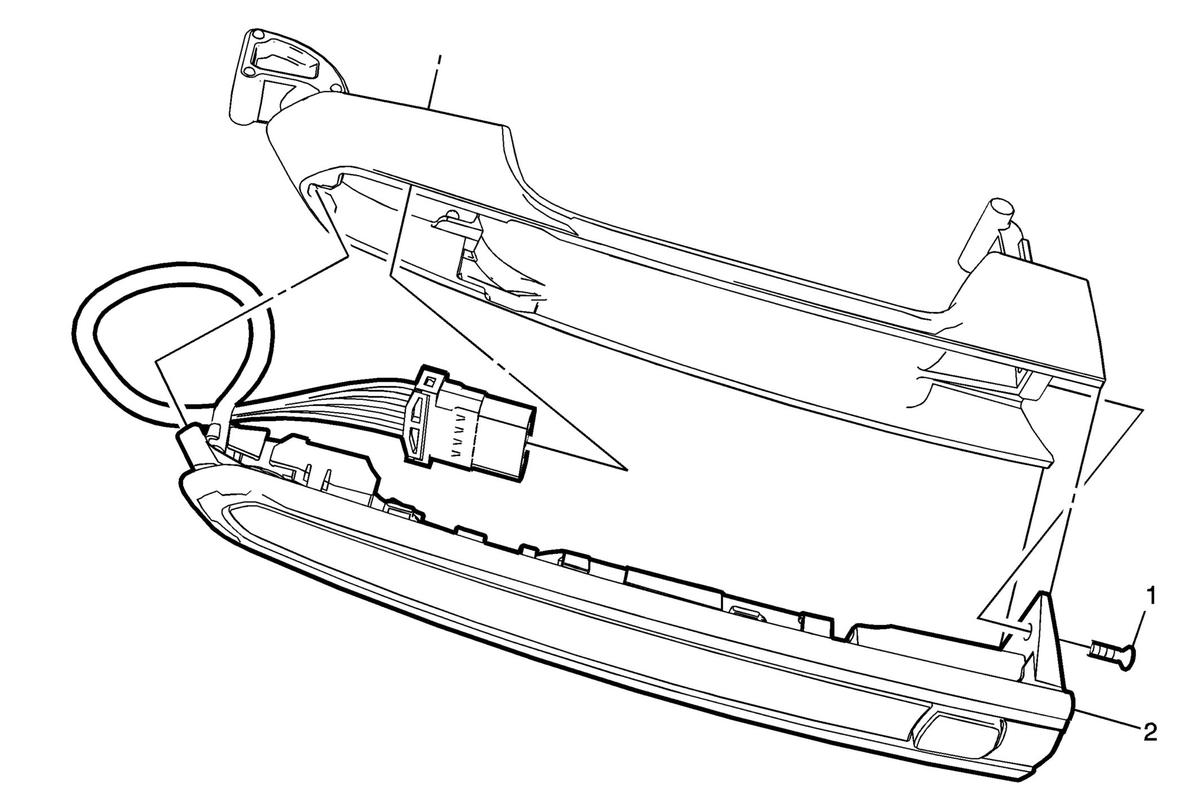

Callout	Component Name
Preliminary Procedure Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement .
1	Front Side Door Outside Handle Insert Screw CAUTION: Refer to Fastener Caution . NOTE: Use care when tightening the outside handle insert screw Not to over tighten. Tighten 1.5 N.m (13 lb in)
2	Front Side Door Outside Handle Insert NOTE: Ensure that the door lock system and the luminous reflecting light is operates properly before installing the trim.
