Front Side Door Locking Rod Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement .

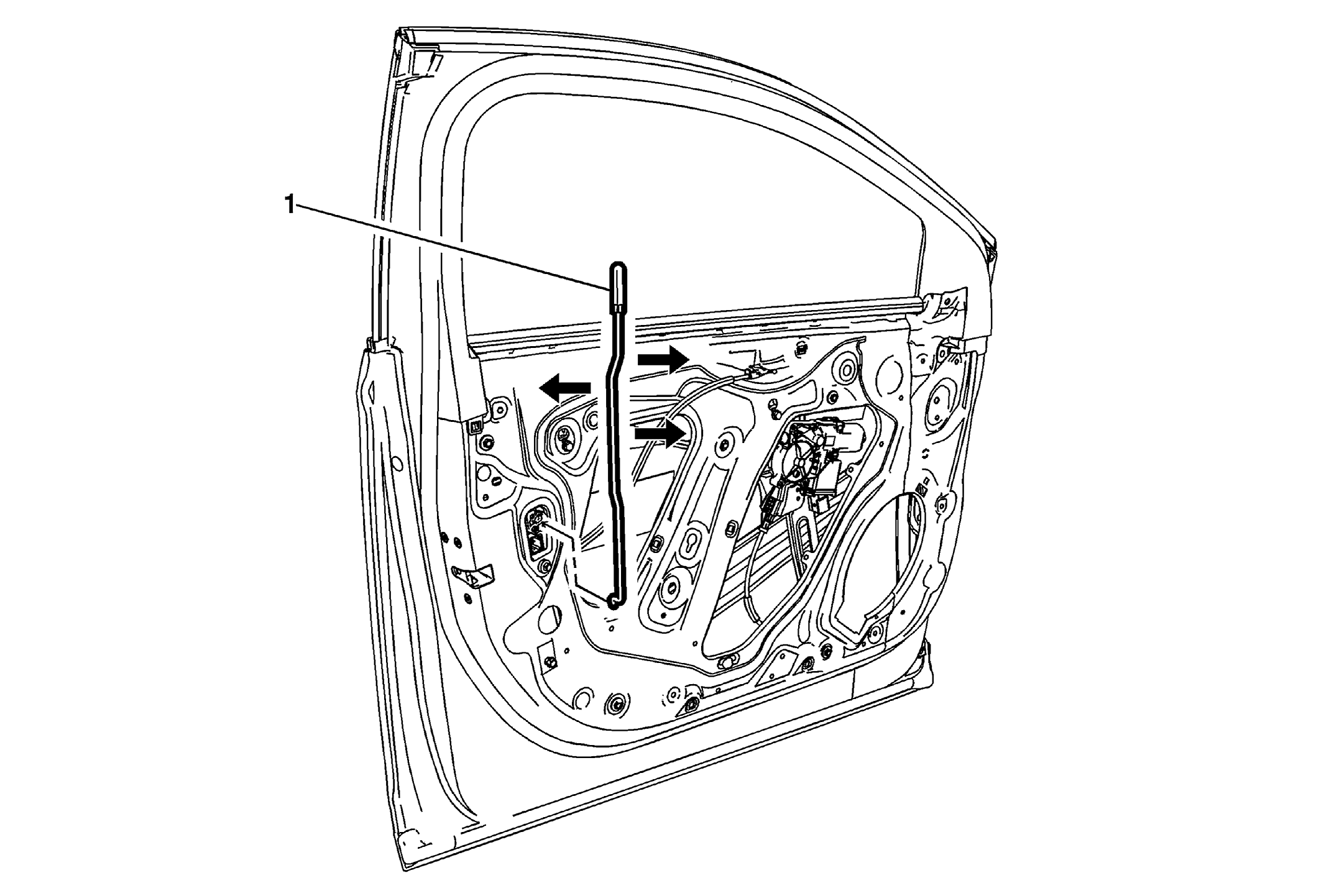

1	Front Side Door Locking Rod Procedure Release the locking rod from the retainer. Turn the locking rod down, pull upward and turn releasing it from the latch. NOTE: Ensure that the door lock system operates properly before installing the trim.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement .

Front Side Door Locking Rod

Procedure

NOTE:

Ensure that the door lock system operates properly before installing the trim.
