Front Side Door Lock Cylinder Rod Replacement

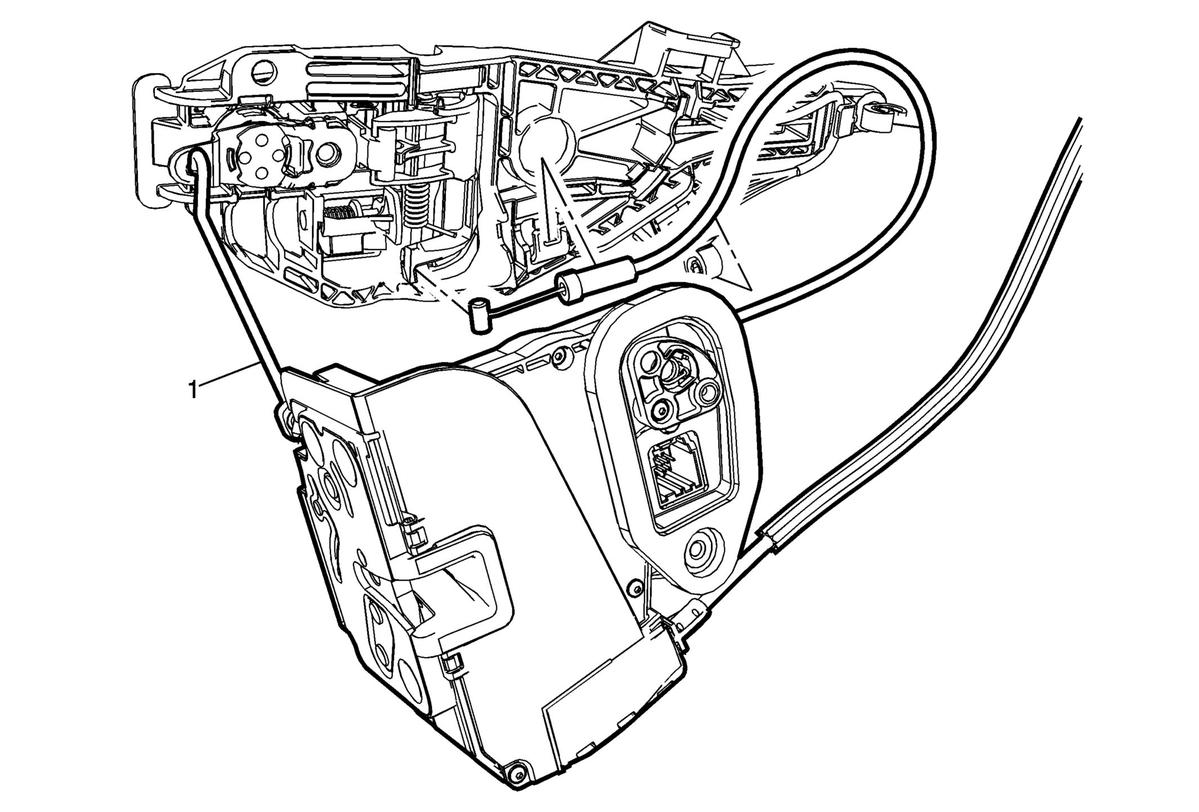

GM2755337Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front side door latch and handle bracket assembly from the door. Refer to Front Side Door Latch Replacement .
1 Front Side Door Lock Cylinder Rod to Latch

Procedure

  1. Remove the front side door lock cylinder rod from the lock cylinder by turn the housing bracket clockwise.
  2. Release the lock cylinder rod from the latch only, do not remove the handle cables from the latch.
NOTE:

Ensure that the door lock system operates properly before installing the trim.
