Front Side Door Inside Handle Replacement

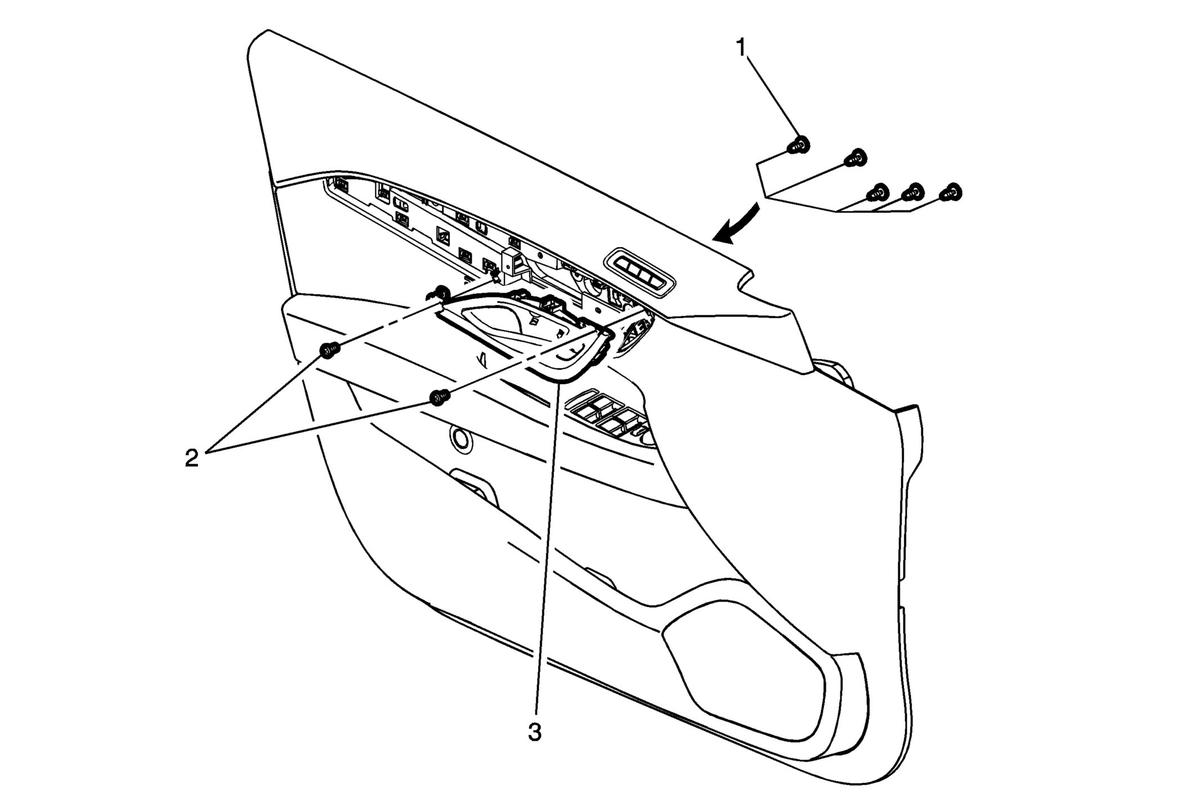

GM3230092Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
  2. Remove the front side door trim panel finish panel applique. Refer to Front Side Door Trim Finish Panel Applique Replacement .
1 Front Side Door Inside Handle Fastener (Qty: 5)
CAUTION:

Refer to Fastener Caution .

NOTE:

The five screws are located on the backside of the trim panel.
2 Front Side Door Inside Handle Bezel Fastener (Qty: 2)
3 Front Side Door Inside Handle Assembly

Procedure

  1. Disconnect the front side door inside handle illumination lamp connector and harness retainer.
  2. Release the handle trim from the metal retaining clip from the backside of the trim panel.
  3. Remove the handle and bezel as an assembly from the door trim panel.
  4. Transfer the handle illumination lamp, door lock switch and the bezel to the new handle.
