Front Side Door Inside Handle Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

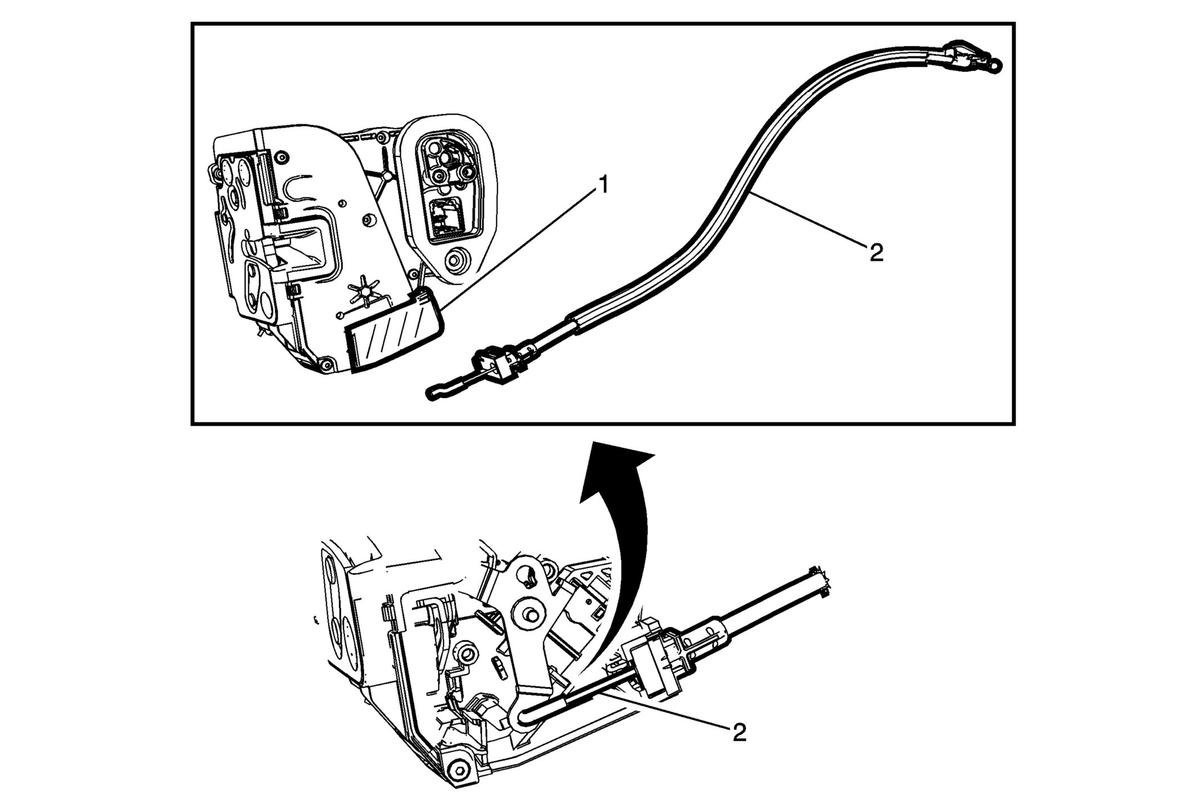

Callout	Component Name
Preliminary Procedure Remove the front side door latch and handle bracket assembly from the door. Refer to Front Side Door Latch Replacement .
1	Front Side Door Inside Handle Cable Access Cover Procedure Use a suitable tool, open the access cover to view the cable end. Release the cable end from the latch assembly.
2	Front Side Door Inside Handle Cable NOTE: Ensure that the door lock system operates properly before installing the trim.

Callout

Component Name

Preliminary Procedure
Remove the front side door latch and handle bracket assembly from the door. Refer to Front Side Door Latch Replacement .

Front Side Door Inside Handle Cable Access Cover

Procedure

Front Side Door Inside Handle Cable

NOTE:

Ensure that the door lock system operates properly before installing the trim.
