Home >> Cadillac >> 2019 >> XTS Base >> Repair and Diagnosis (Single Page) >> Body & Frame >> Door Locks >> Remote Functions System >> Schematic Wiring Diagrams >> Remote Function System Wiring Schematics >> Keyless Entry - Passive and Keyless Start

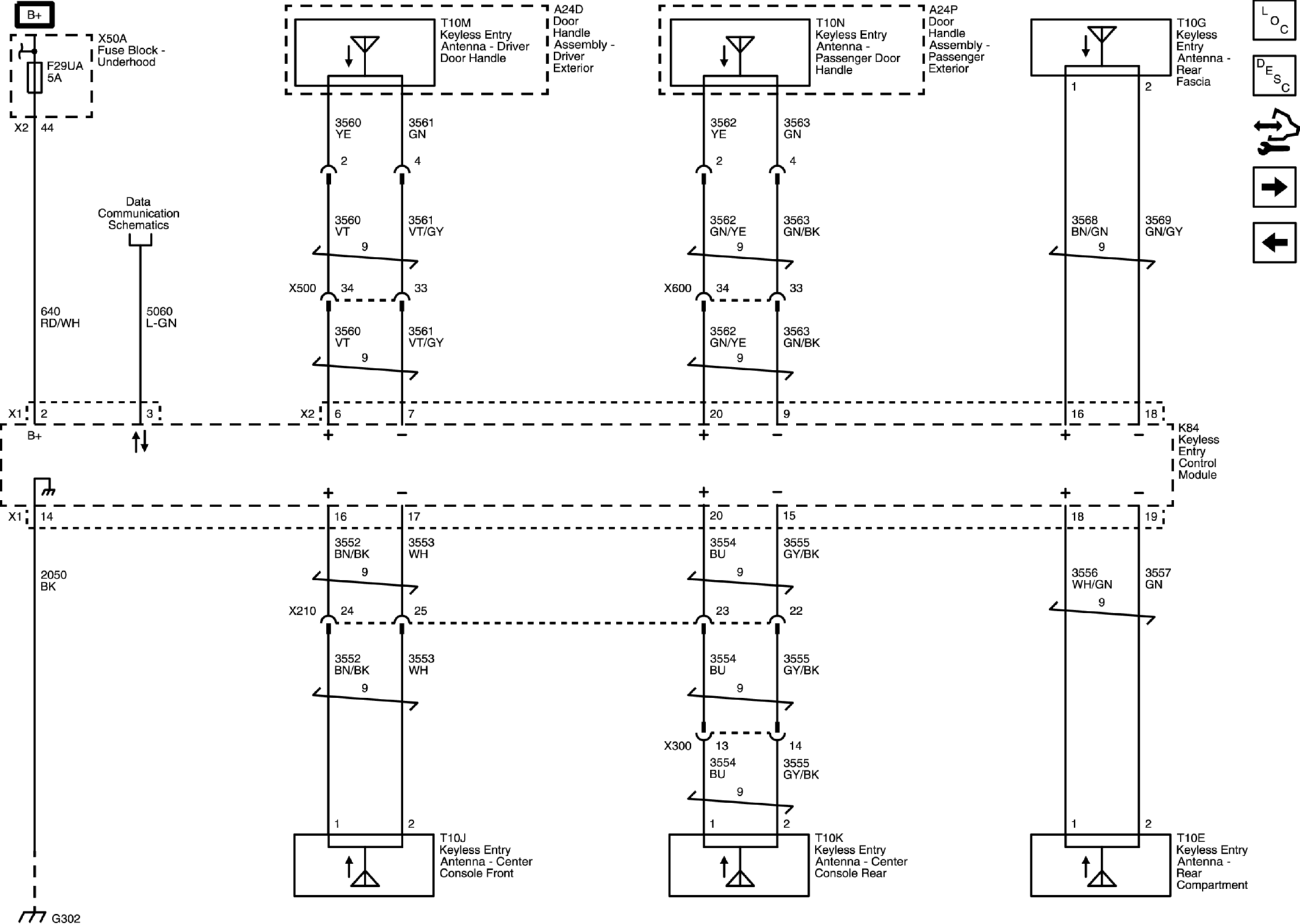

Keyless Entry - Passive and Keyless Start

GM4901847

Courtesy of GENERAL MOTORS COMPANY
