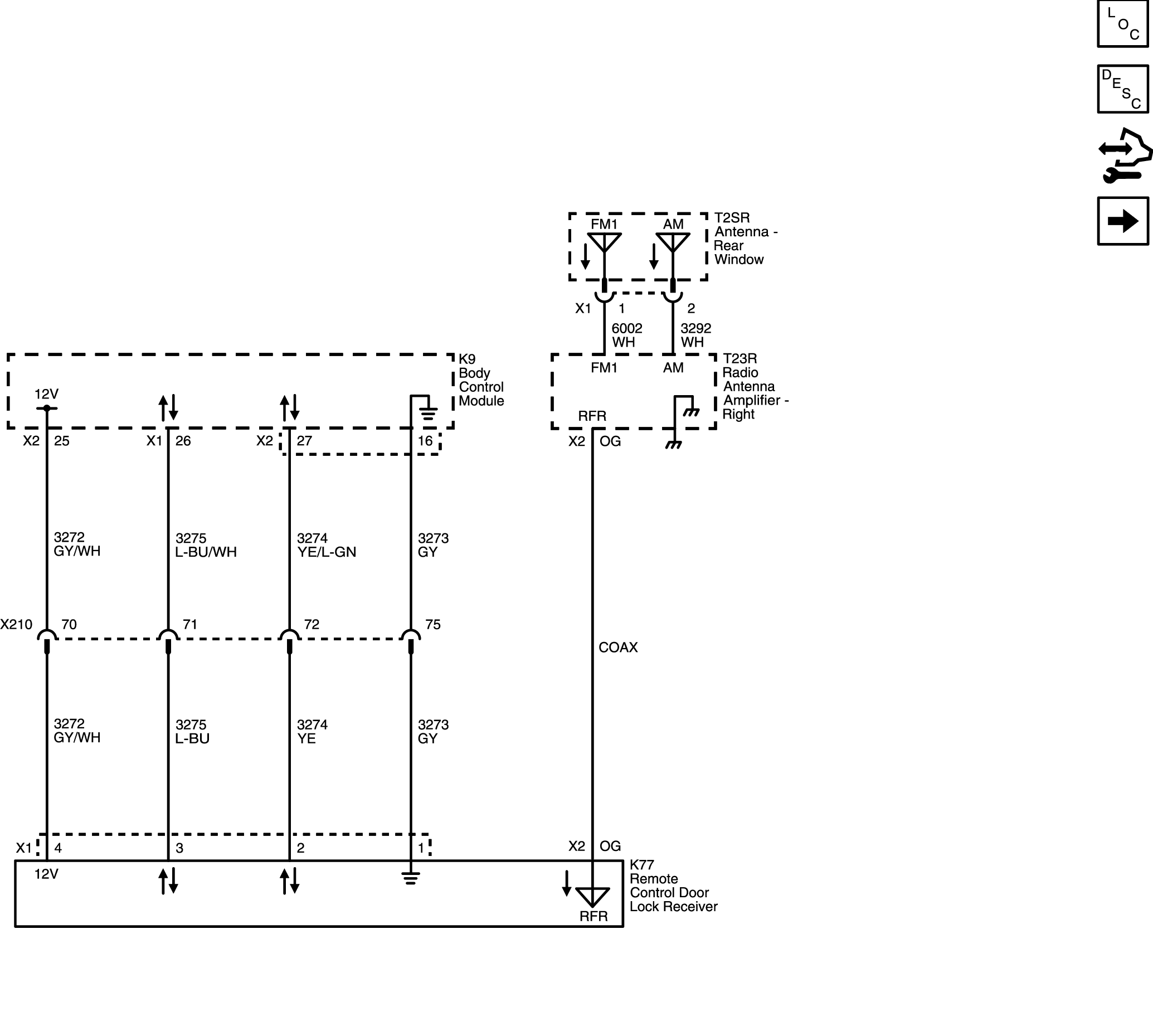

Home >> Cadillac >> 2019 >> XTS Base >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Remote Functions System >> Schematic Wiring Diagrams >> Remote Function System Wiring Schematics >> Keyless Entry - Active
