Installation Procedure
- CAUTION:
Refer to Fastener Caution .

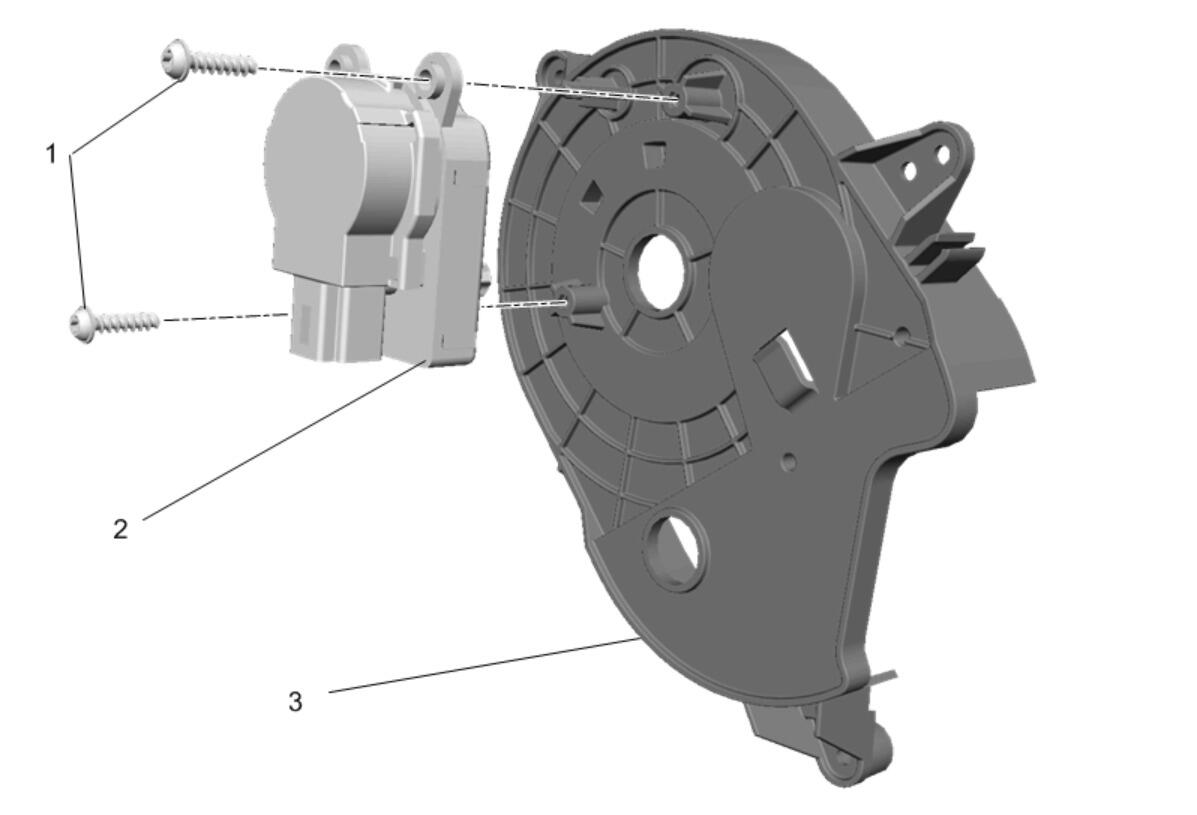

Mode Valve Actuator(2)@Heater and Air Conditioning Mode Control Cam Cover(3) - Install

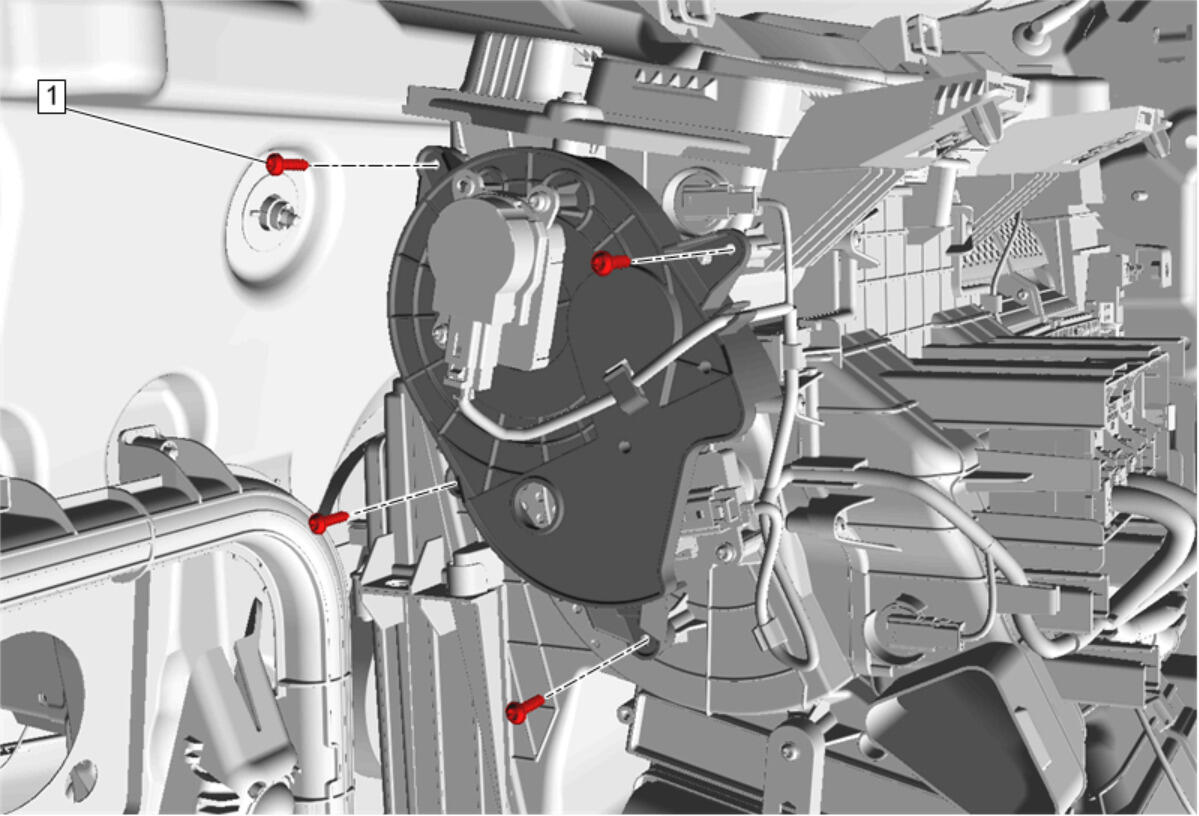

- Mode Valve Actuator Bolt(1) - Install and tighten 1.3 N.m (12 lb in)[2x]

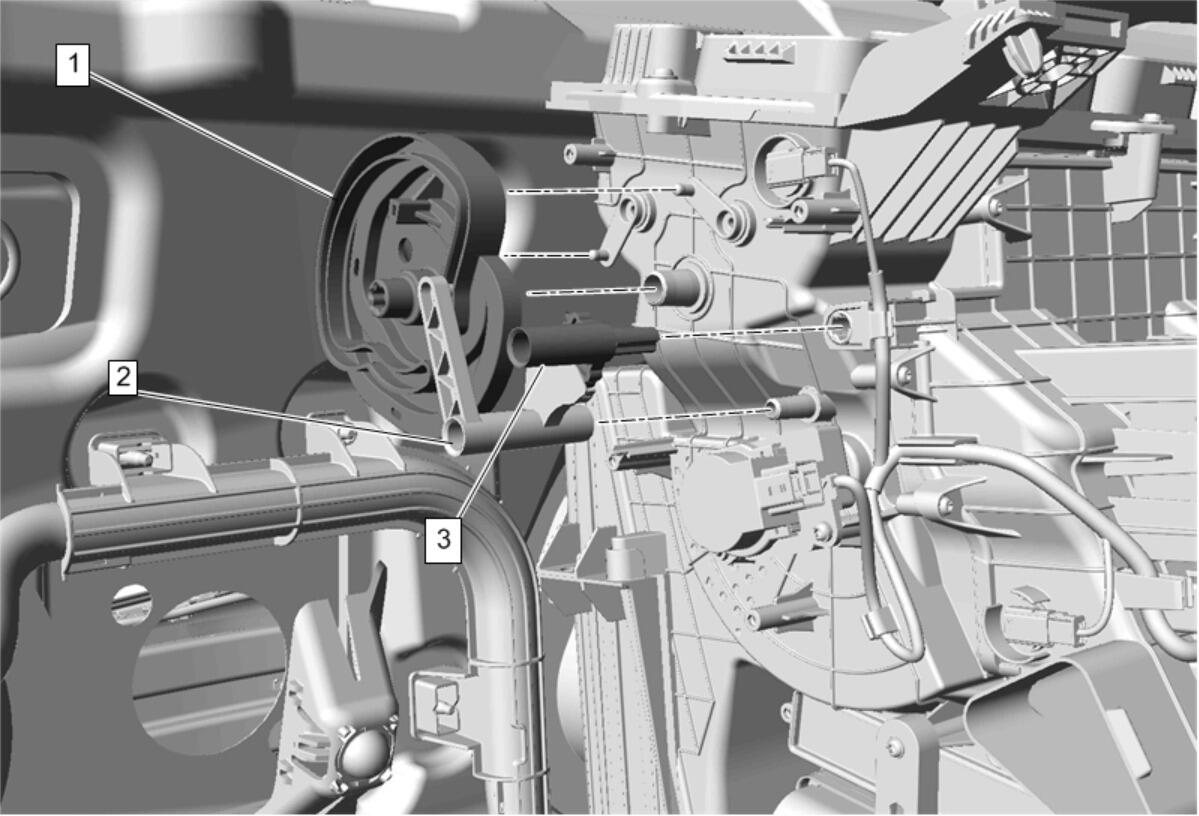

Mode Control Cam Actuator Sub-Lever - Vent Gear(3) - Install
- Mode Control Cam(1) - Install
- Mode Control Cam Actuator Sub-Lever - Vent(2) - Install
- During installation of the mode control cam and sub - levers align the lever pins with the guide channels on the mode control cam.

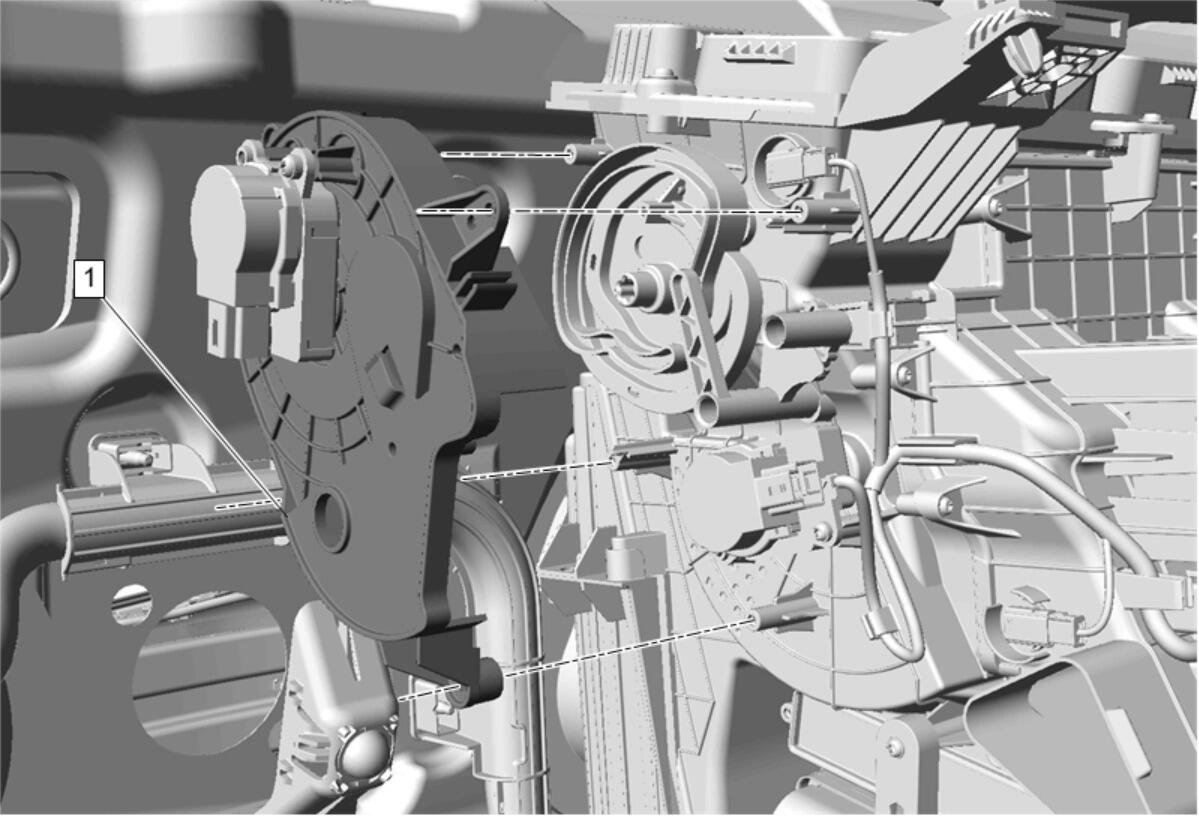

Heater and Air Conditioning Mode Control Cam Cover(1)@Heater and Air Conditioning Evaporator and Blower Module - Install
Heater and Air Conditioning Mode Control Cam Cover Bolt(1) - Install and tighten 2.5 N.m (22 lb in)[4x]

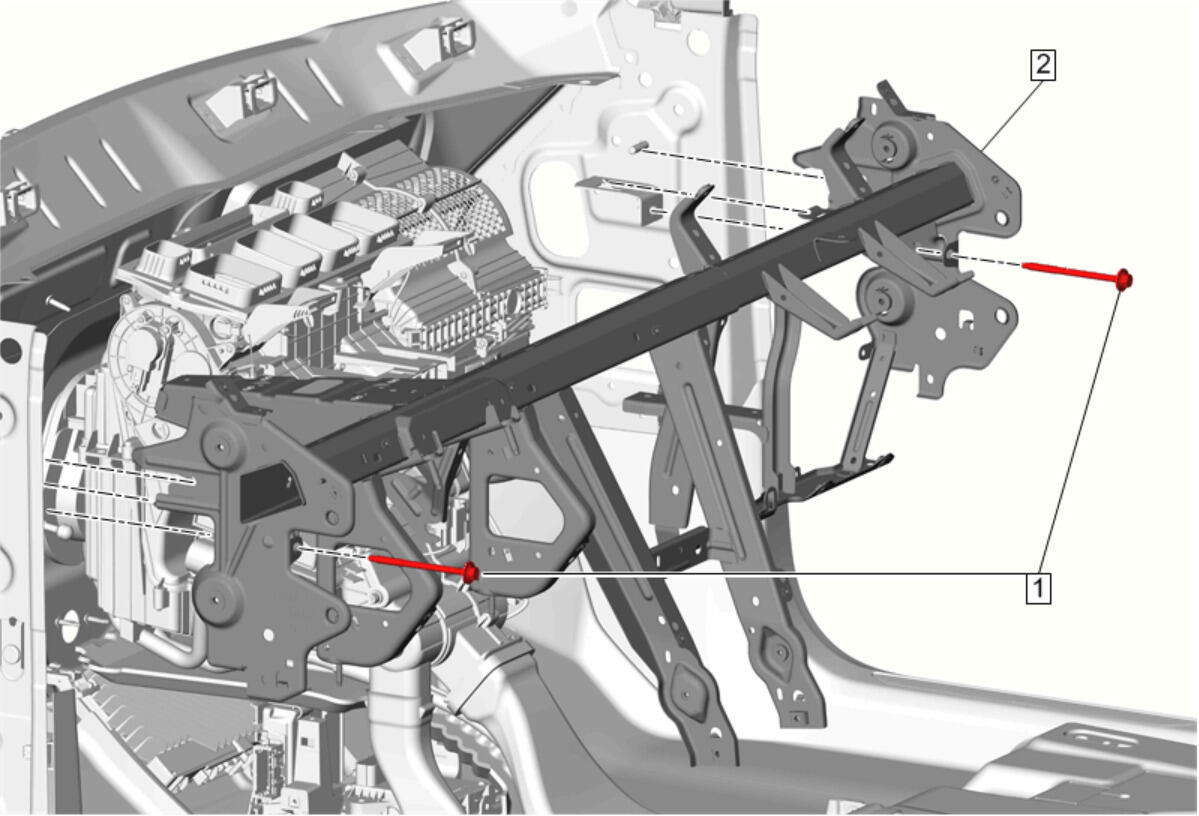

Instrument Panel Tie Bar(2) - Install - Instrument Panel Tie Bar Replacement
- Brake and Accelerator Pedal Assembly - Install - Brake and Accelerator Pedal Assembly Replacement

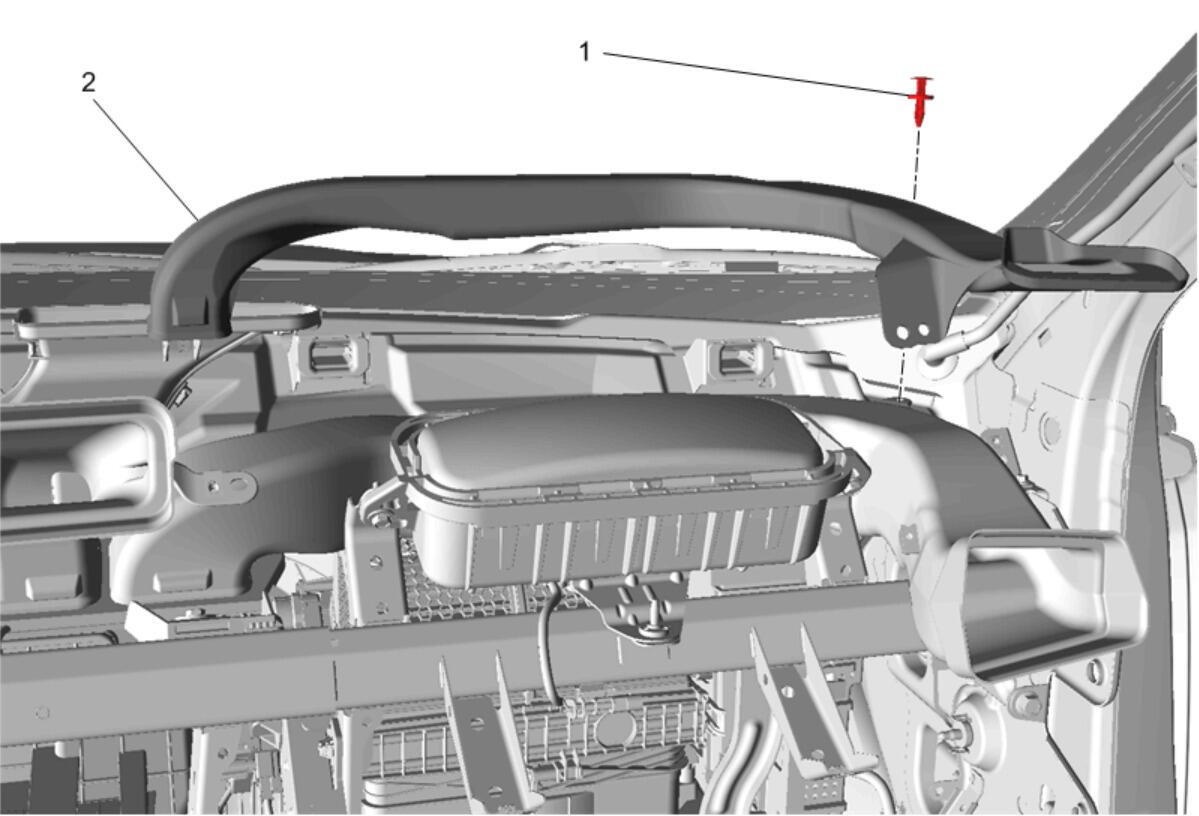

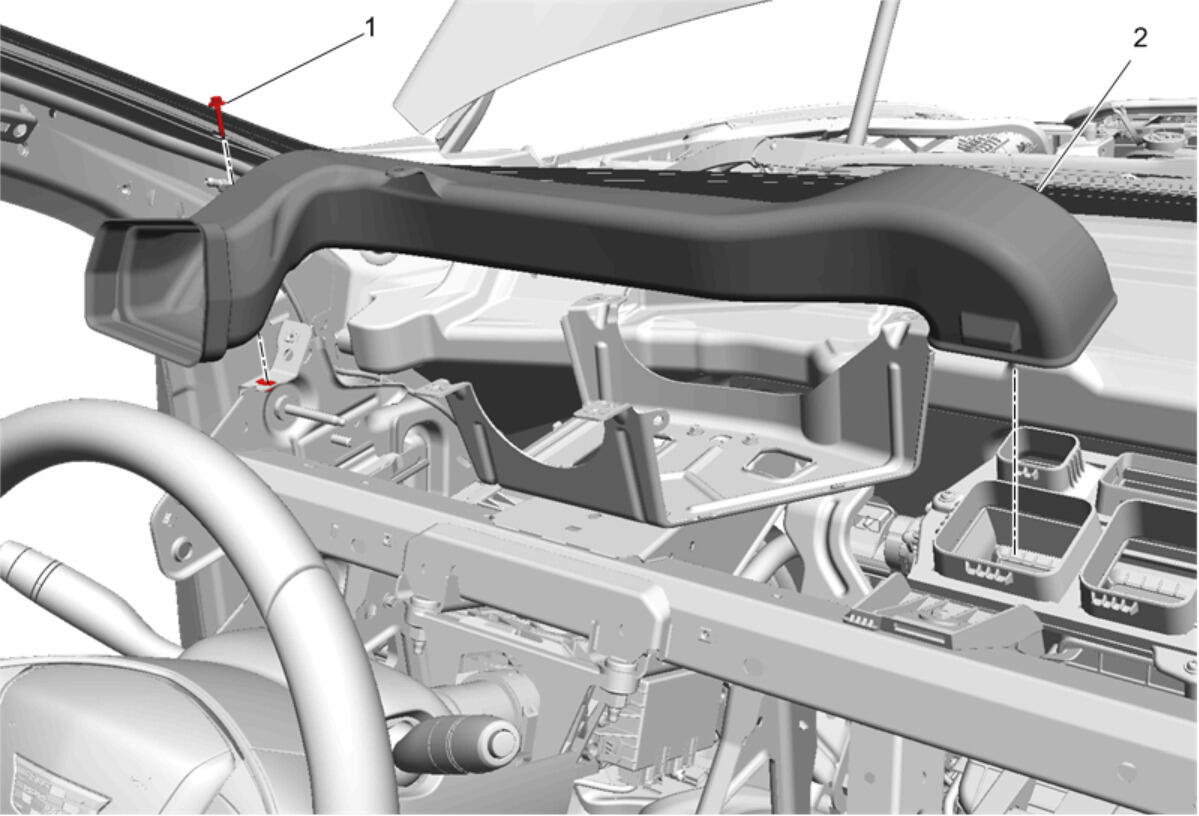

Instrument Panel Outer Air Outlet Duct - Right Side(2) - Install
- Instrument Panel Outer Air Outlet Duct Bolt(1) - Install and tighten 2.5 N.m (22 lb in)

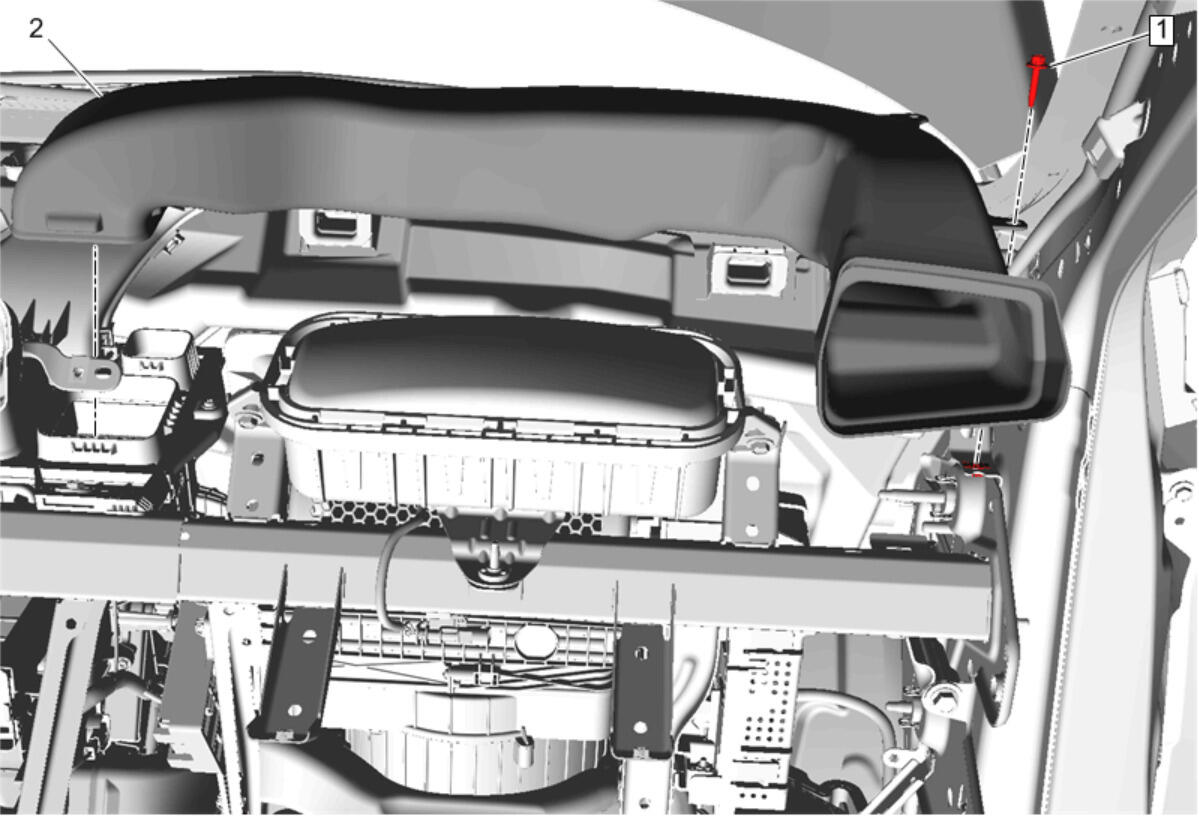

Instrument Panel Outer Air Outlet Duct - Left Side(2) - Install
- Instrument Panel Outer Air Outlet Duct Bolt(1) - Install and tighten 2.5 N.m (22 lb in)
Side Window Defogger Outlet Duct - Right Side(2) - Install - Side Window Defogger Outlet Duct Replacement - Right Side
Side Window Defogger Outlet Duct - Left Side(2) - Install - Side Window Defogger Outlet Duct Replacement - Left Side

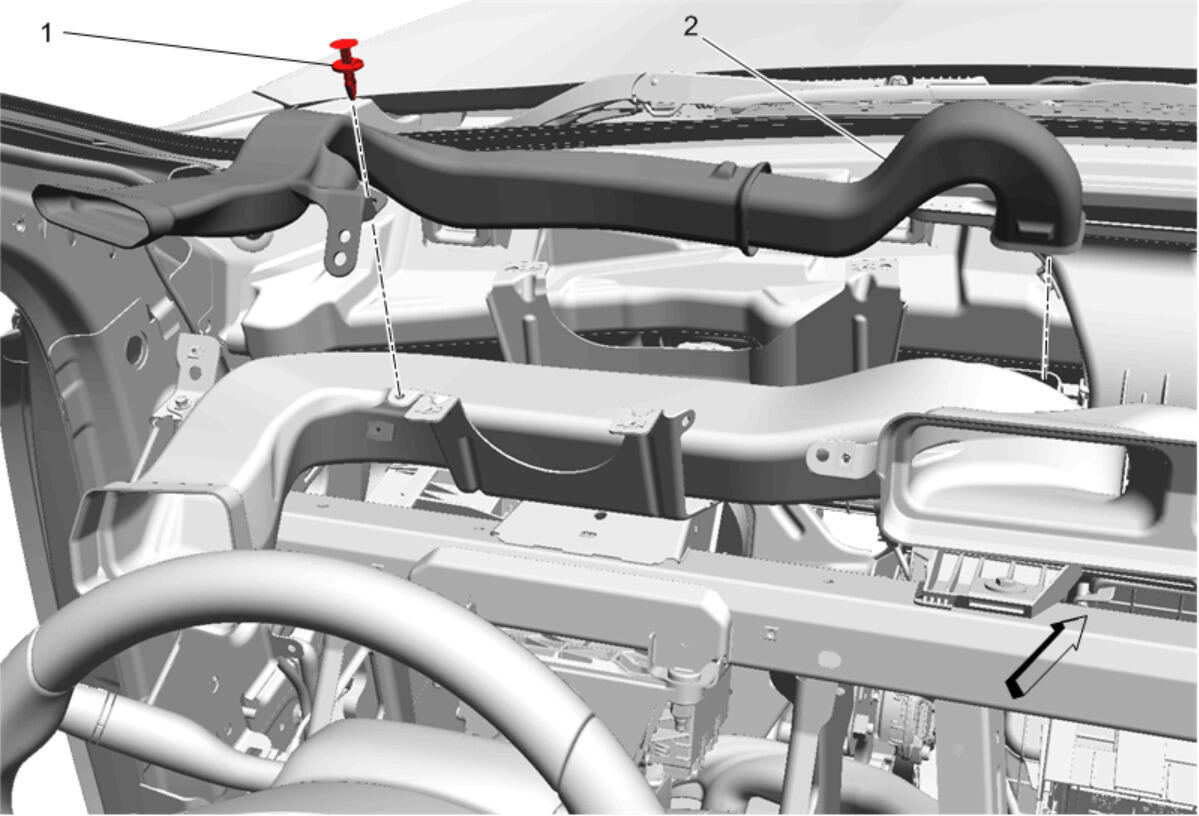

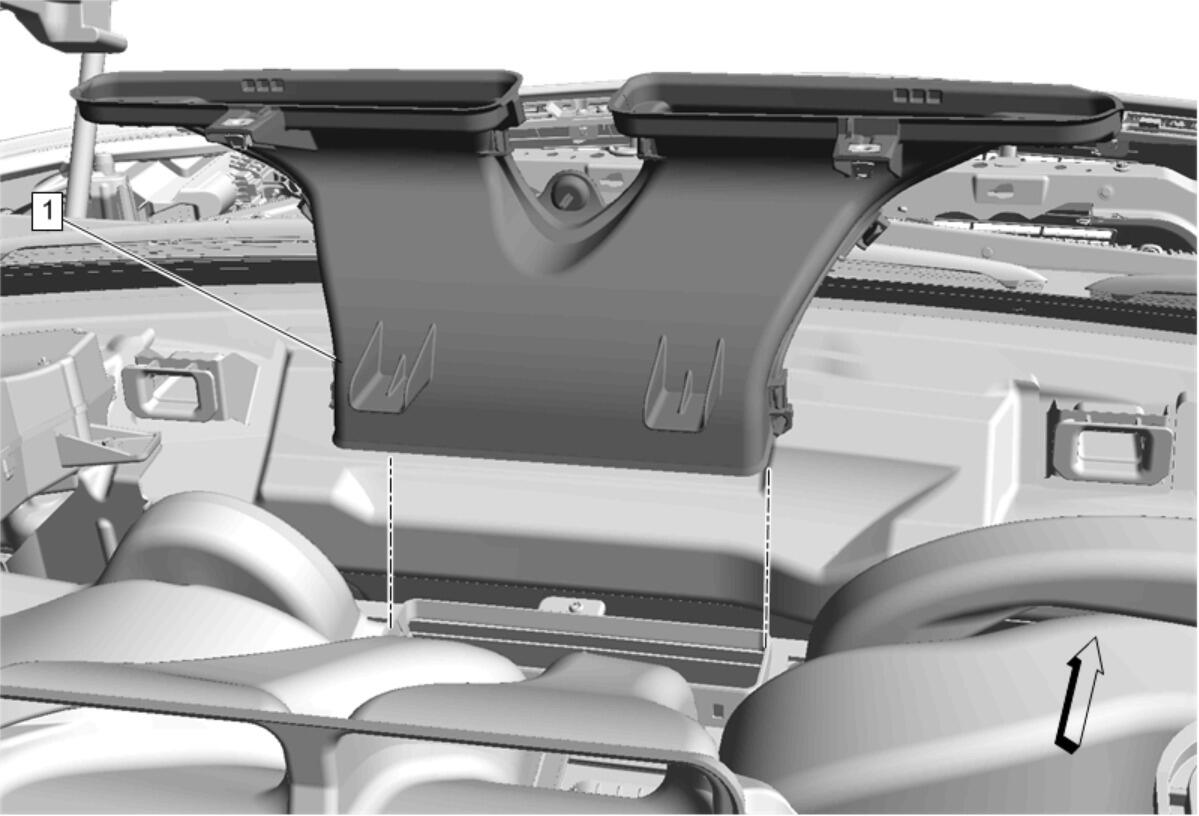

Instrument Panel Center Air Outlet Duct(1) - Install

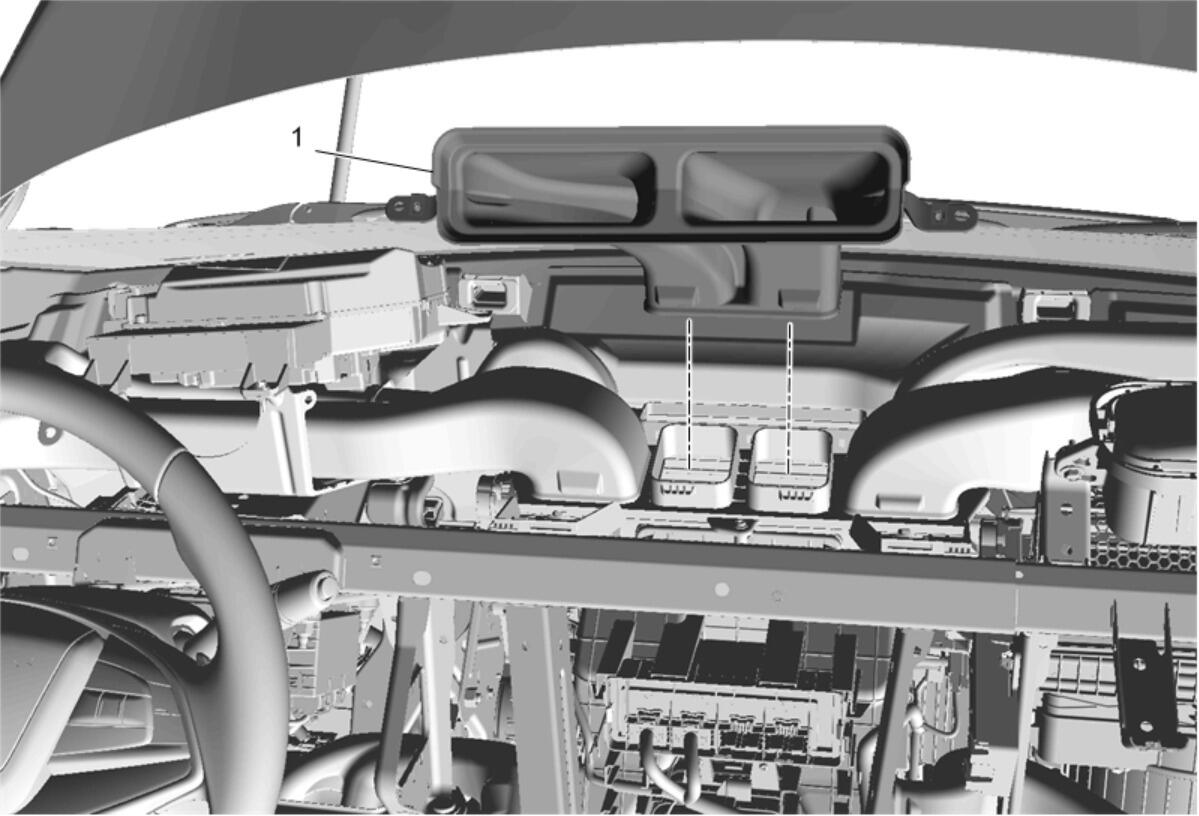

Windshield Defroster Outlet Duct(1) - Install - Windshield Defroster Outlet Duct Replacement

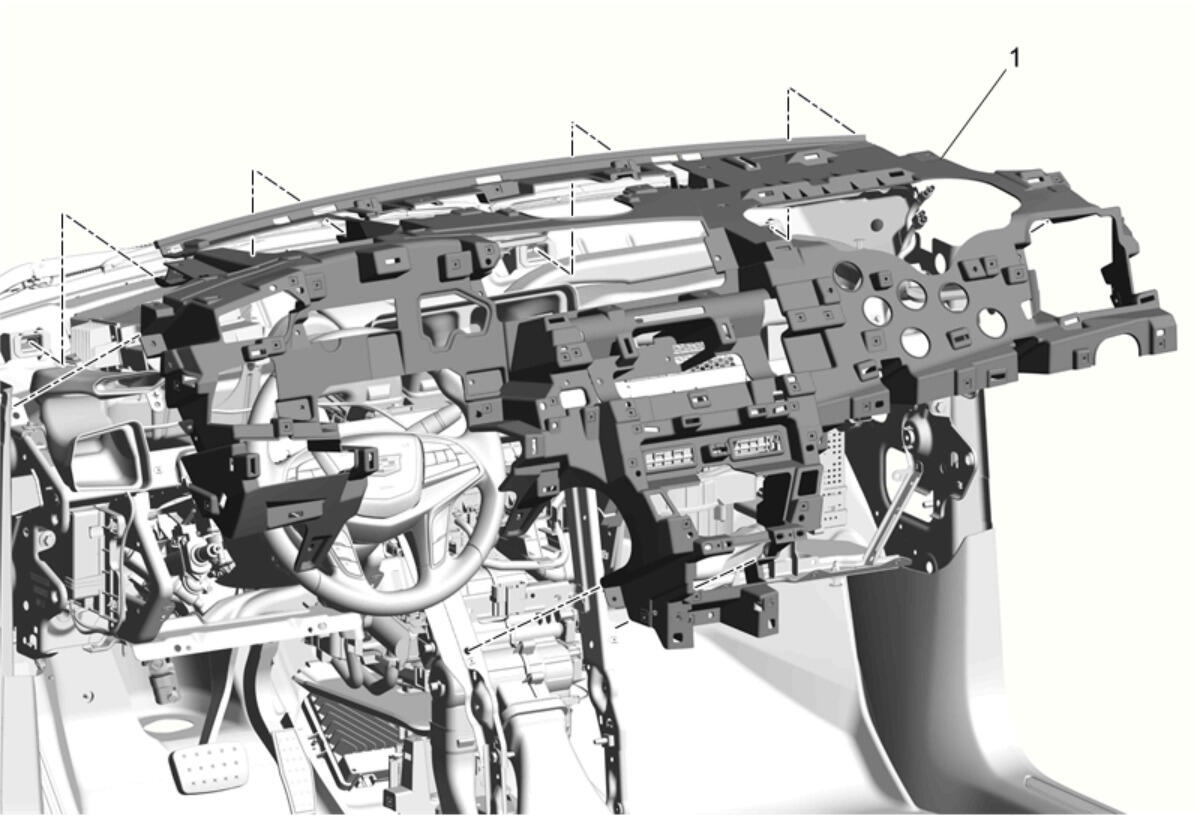

Instrument Panel Carrier(1) - Install - Instrument Panel Carrier Replacement

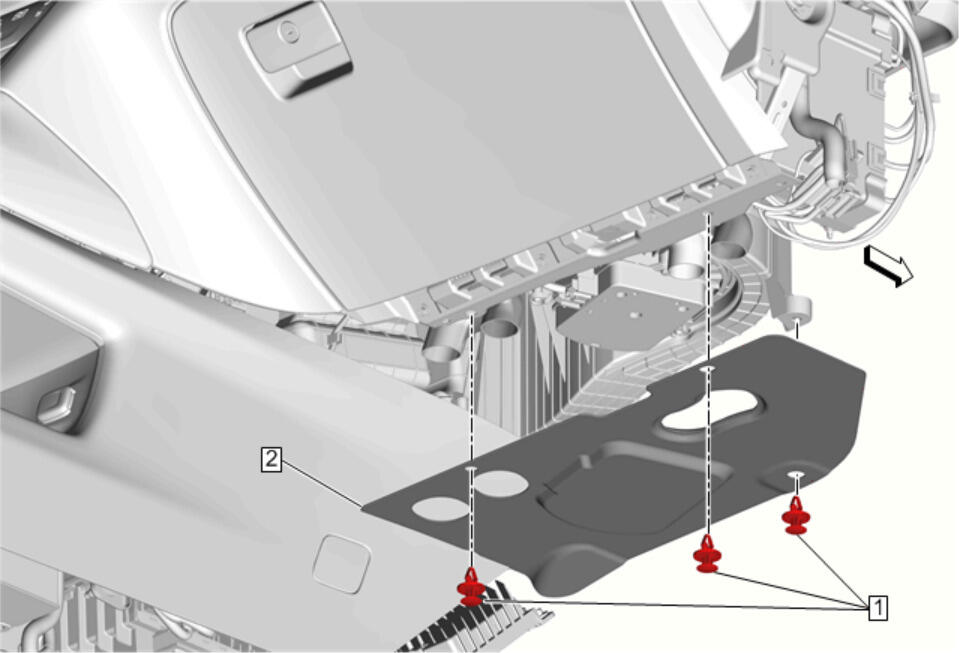

Instrument Panel Insulator - Right Side(2) - Install - Instrument Panel Insulator Replacement - Right Side
Floor Front Air Outlet Duct - Left Side(2) - Install - Floor Front Air Outlet Duct Replacement - Left Side
- Perform the actuator calibration procedure. Actuator Recalibration
- Clear the DTCs.
