Installation Procedure

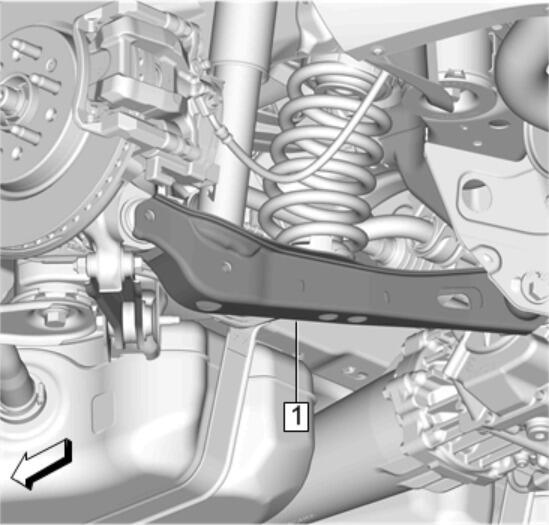

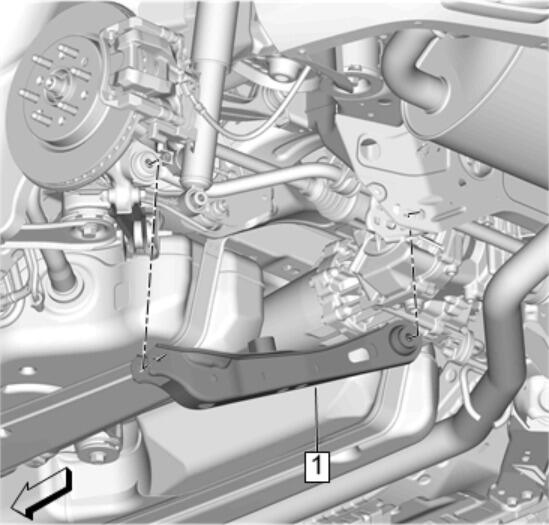

Rear Suspension Lower Control Arm(1) - Install

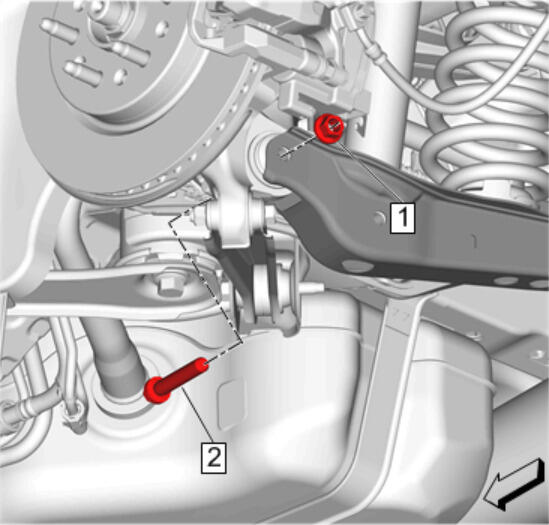

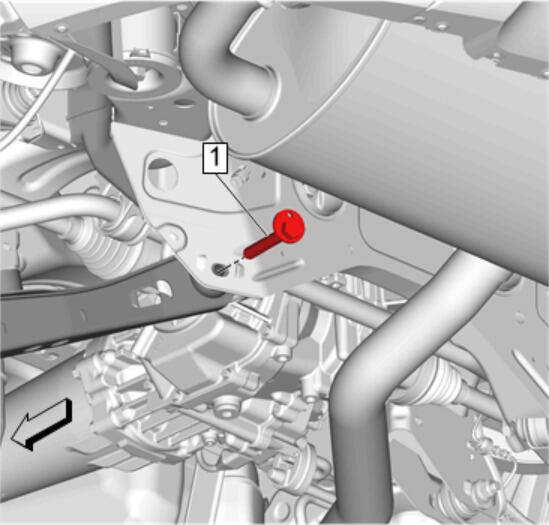

Rear Suspension Lower Control Arm Inner Bolt(1) - Install
Rear Suspension Lower Control Arm Inner Washer(2) - Install

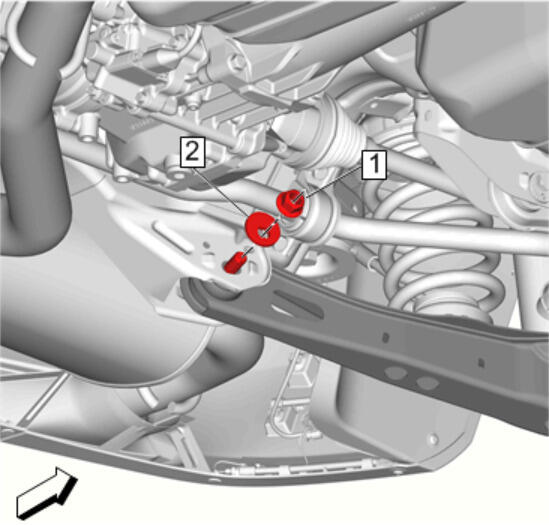

- Rear Suspension Lower Control Arm Inner Nut(1) - Install, but do NOT tighten

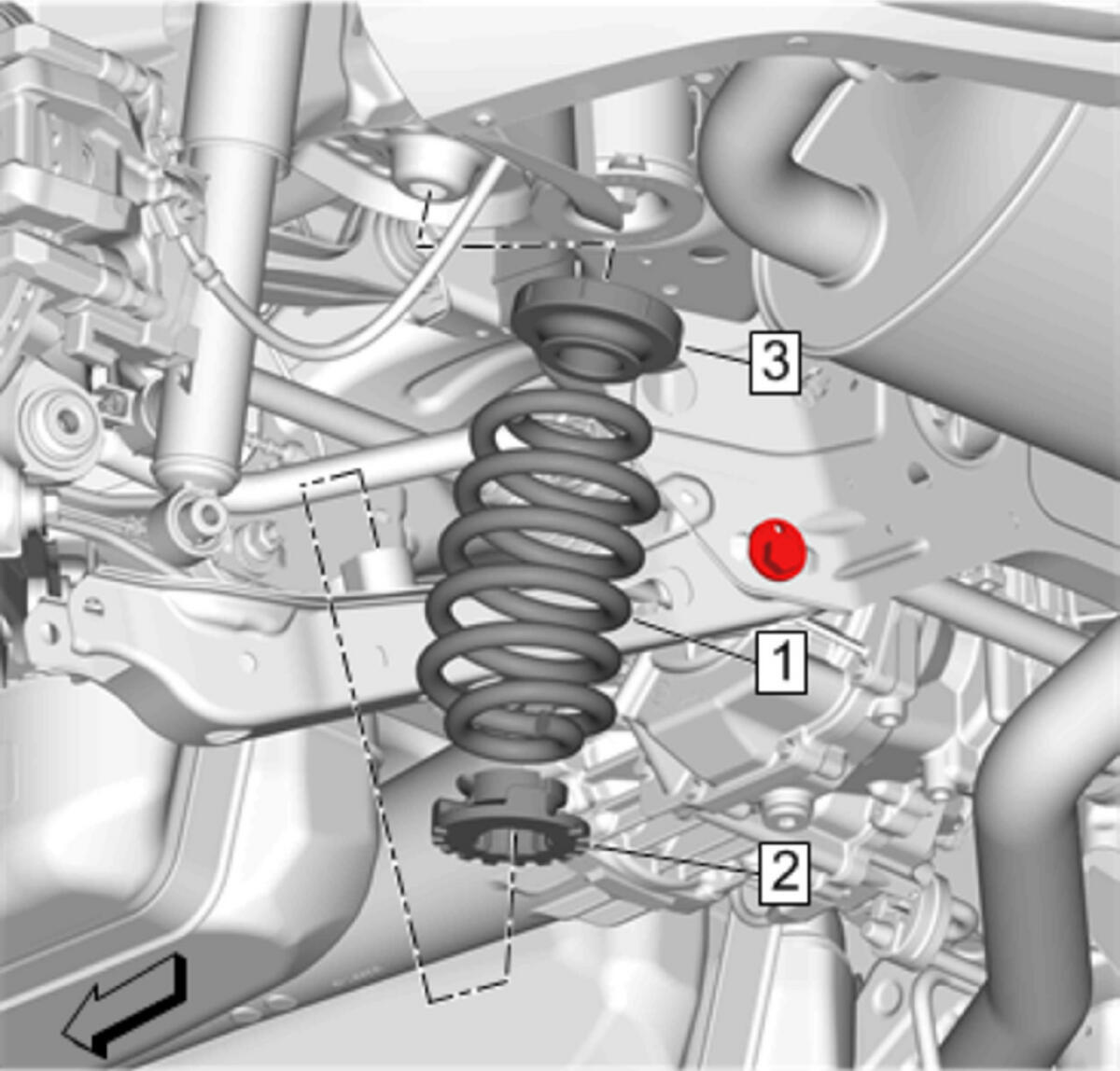

Rear Coil Spring Insulator(3) - Install
- Rear Coil Spring Lower Insulator(2) - Install
- Rear Coil Spring(1) - Install
Raise the rear suspension lower control arm (1) back into position.
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

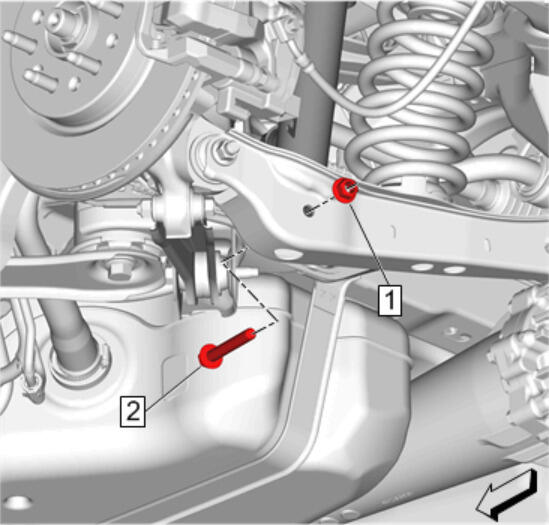

Rear Suspension Lower Control Arm Outer Bolt(2) - Install NEW

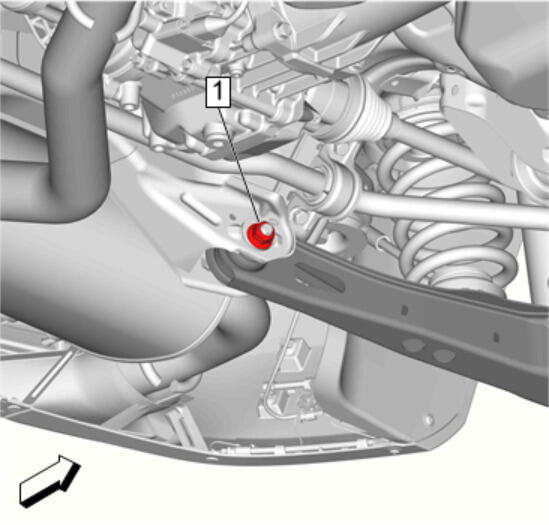

- Rear Suspension Lower Control Arm Outer Nut(1) - Install, but do NOT tighten
- Rear Suspension Lower Control Arm Outer Bolt(2) - Tighten
- First Pass: 160 N.m (118 lb ft)N.m
- Final Pass: (90 - 105 degrees)
Rear Suspension Lower Control Arm Inner Nut(1) - Tighten 160 N.m (118 lb ft)
Align the rear shock absorber to the rear suspension lower control arm, install the rear shock absorber bolt (2) and the rear shock absorber nut (1). Shock Absorber Replacement
- Install the parking brake harness to the rear suspension lower control arm.
- Rear Suspension Lower Trailing Link - Install - Rear Suspension Lower Trailing Link Replacement

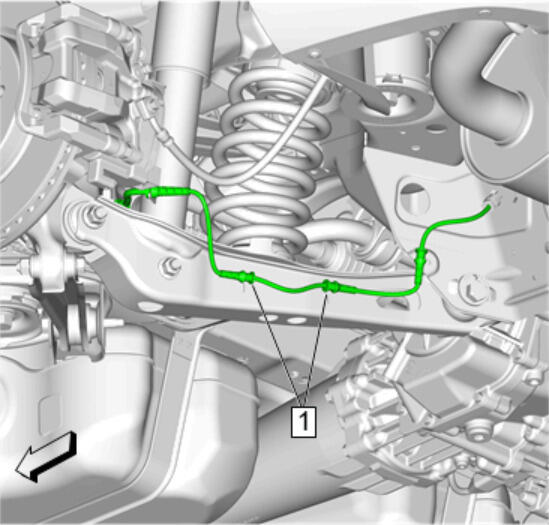

If equipped with F45, install the rear shock absorber harness (1) to the rear suspension lower control arm.
- Remove the support from the rear suspension lower control arm.
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation .
- Remove the support and lower the vehicle.
- Verify the rear camber specifications and adjust as necessary. Rear Camber Adjustment
Refer to Fastener Caution .
