Home >> Cadillac >> 2019 >> XT5 Base, FWD >> Repair and Diagnosis >> Steering >> Steering Control Systems >> Steering Wheel And Column >> Schematic Wiring Diagrams >> Tilt/Telescoping Steering Column Wiring Schematics >> Power Tilt and Telescoping Steering Column

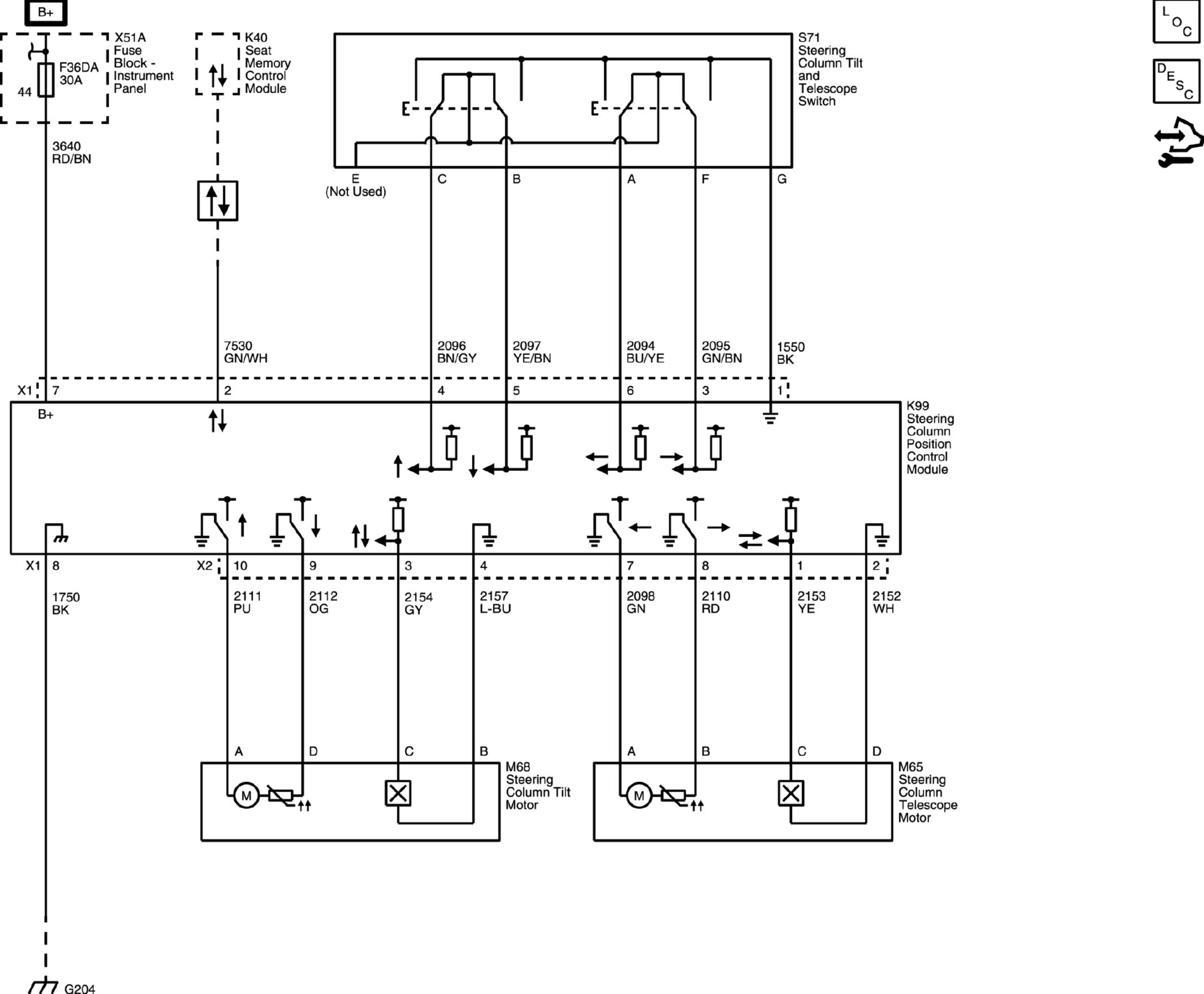

Power Tilt and Telescoping Steering Column

GM4909498

Courtesy of GENERAL MOTORS COMPANY
