Front Seat Belt Guide Adjuster Replacement

Courtesy of GENERAL MOTORS COMPANY

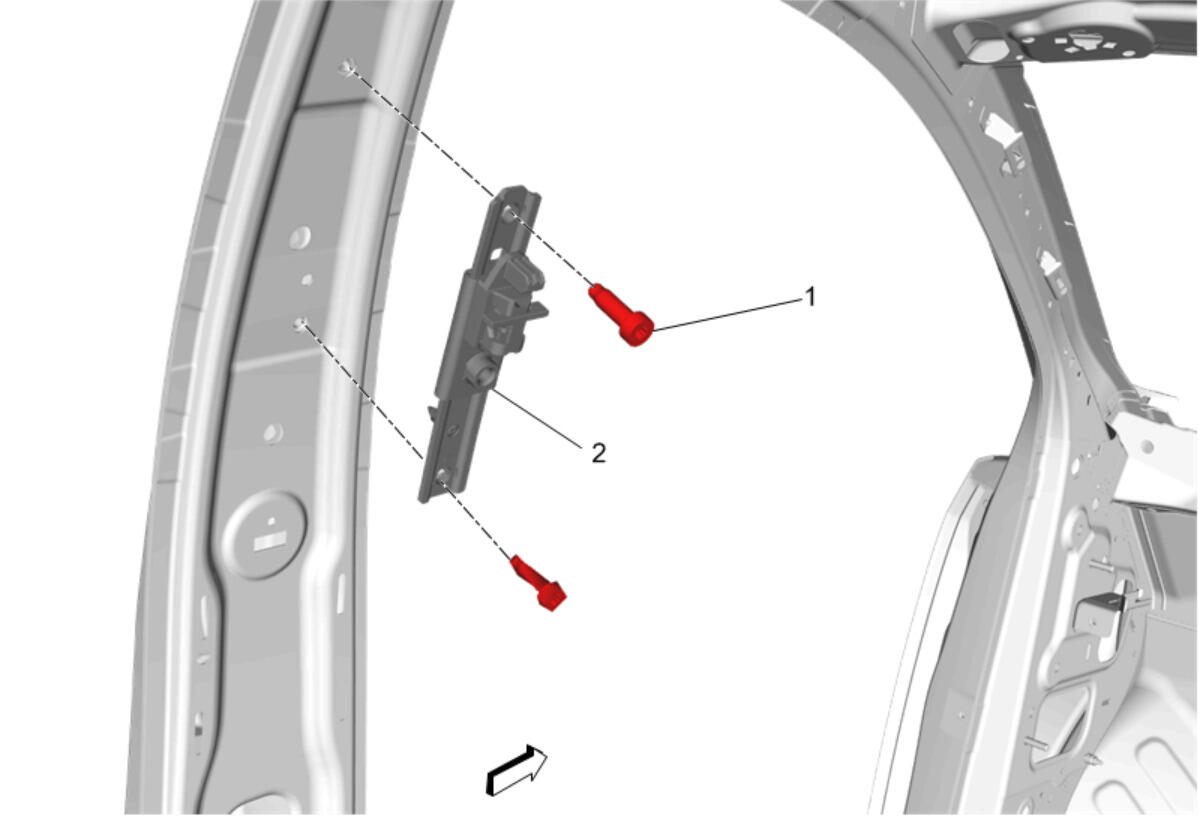

Callout	Component Name
Preliminary Procedure  Remove the front seat belt retractor D ring bolt. Front Seat Belt Retractor Replacement
1	Front Seat Belt Guide Adjuster Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
2	Front Seat Belt Guide Adjuster Procedure  Release the retainer.
