Installation Procedure

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Front Brake Hose - Install
Courtesy of GENERAL MOTORS COMPANY

Brake Hose Fitting Gasket (1) @ Brake Hose Fitting (2) - Install NEW [2x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

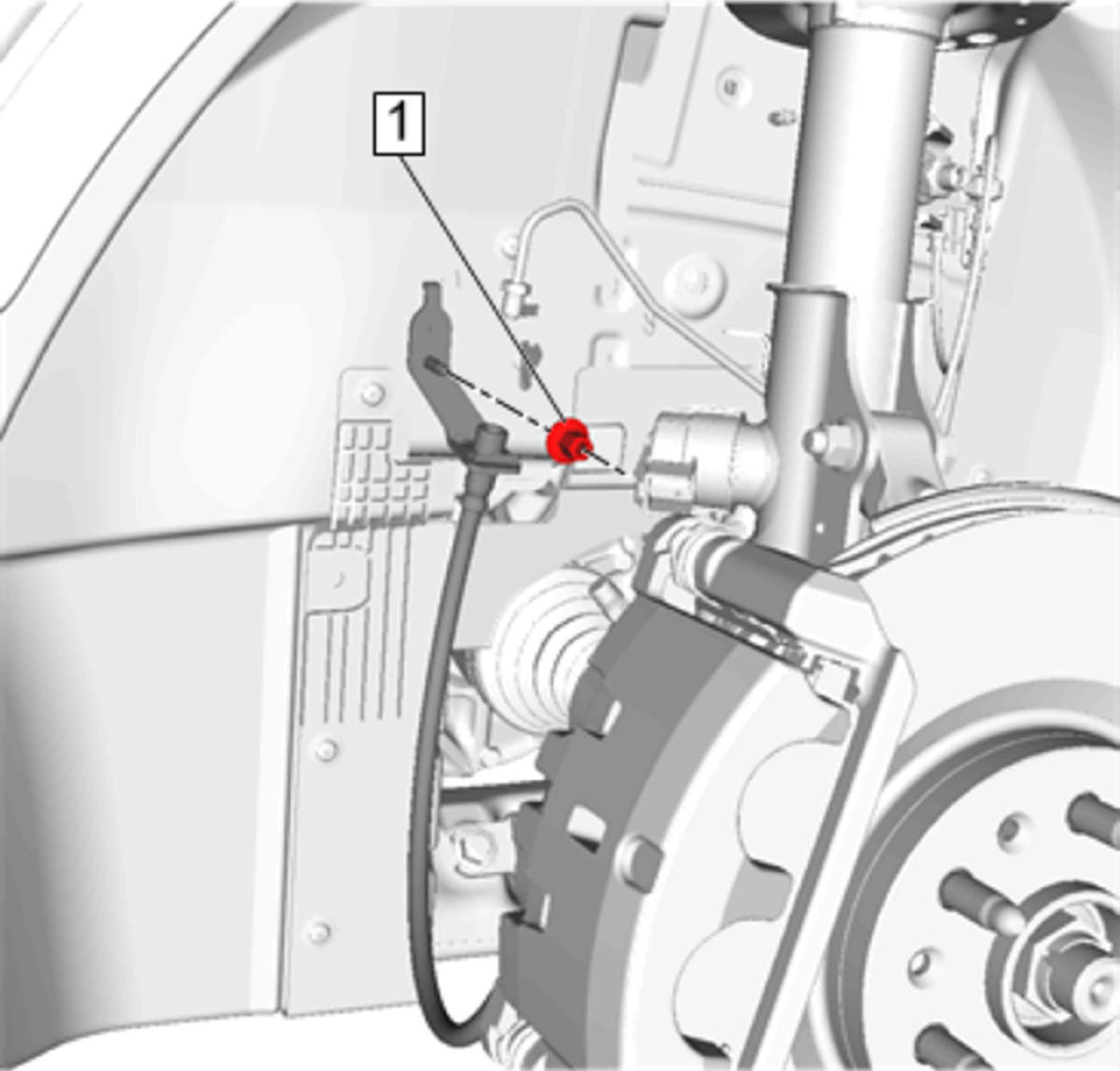

Brake Hose Fitting Bolt (1) - Install and tighten 44 N.m (32 lb ft)
Courtesy of GENERAL MOTORS COMPANY

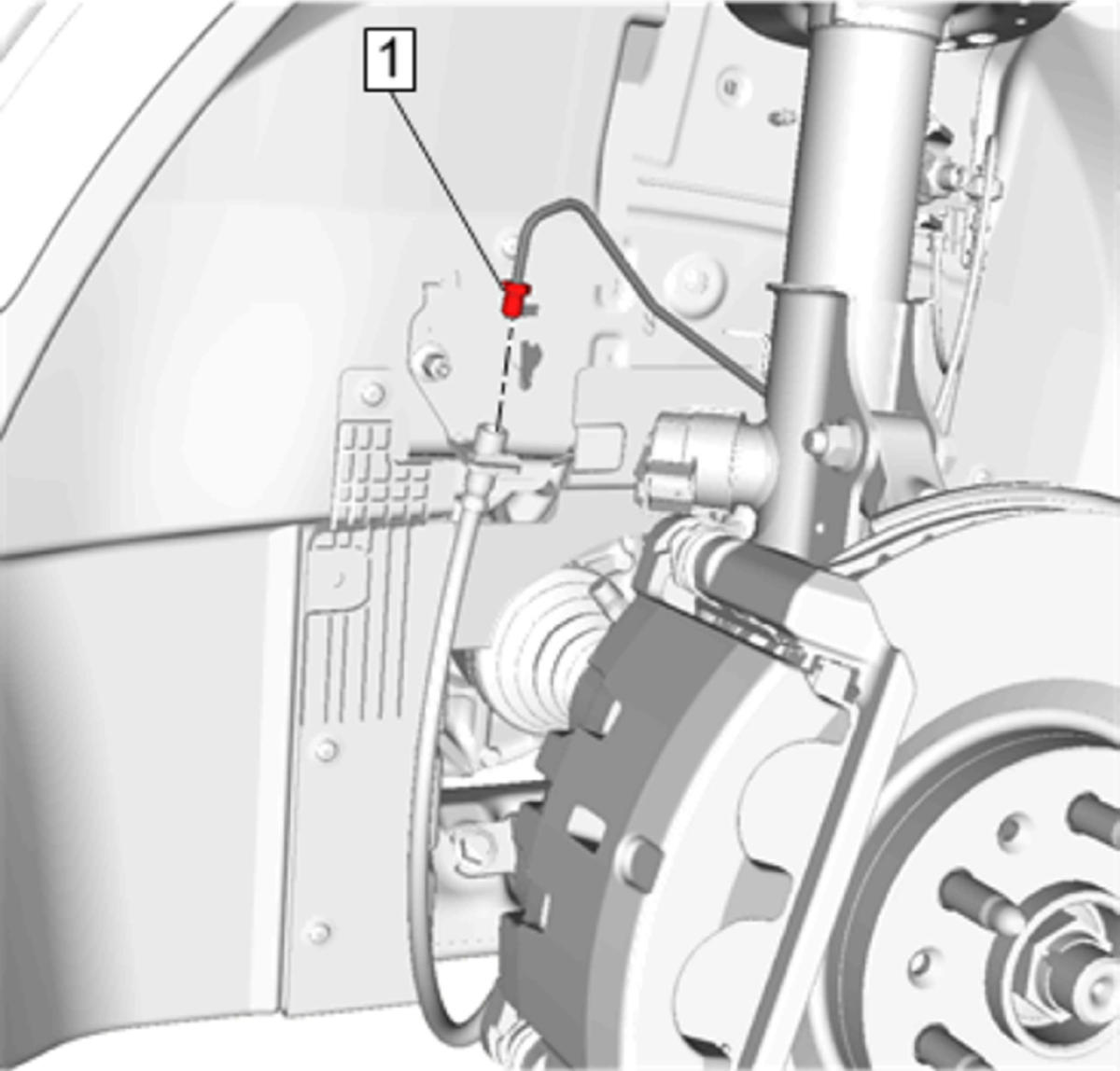

Brake Hose Bracket Nut (1) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
Bleed the brake system. Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure)
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
