Installation Procedure
WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Ensure the locking tabs on the switch fully engage the master cylinder reservoir.

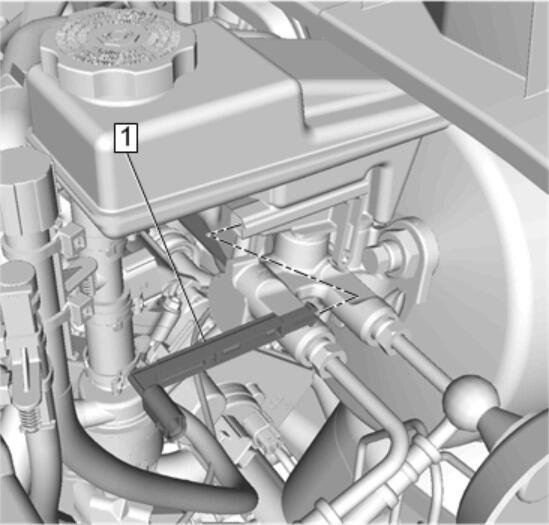

Brake Fluid Level Indicator Switch (1) - Install
- Brake Fluid Level Indicator Switch Electrical Connector - Connect
- Reposition and install the radiator surge tank. - Radiator Surge Tank Replacement (LGX With V08)Radiator Surge Tank Replacement (LGX without V08)
