Installation Procedure

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4291288

    With the aid of an assistant, install the front floor console assembly (1) into the vehicle.

  2. Carefully guide the floor console holder end into the instrument panel assembly and line up the pin on the stowage tray.
  3. Connect the electrical connectors.
  4. GM4291287
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Bolt (2) - Install and tighten [4x] 9 N.m (80 lb in)

  5. Front Floor Console Bolt Access Hole Cover (1) - Install
  6. GM4291286

    Front Floor Console Bolt (2) - Install and tighten [4x] 9 N.m (80 lb in)

  7. Front Floor Console Bolt Access Hole Cover (1) - Install
  8. GM4277296

    Instrument Panel Lower Center Trim Panel (2) - Install - Instrument Panel Lower Center Trim Panel Replacement

  9. GM4279414

    Front Floor Console Extension Panel - Right Side (3) - Install - Front Floor Console Extension Panel Replacement - Right Side

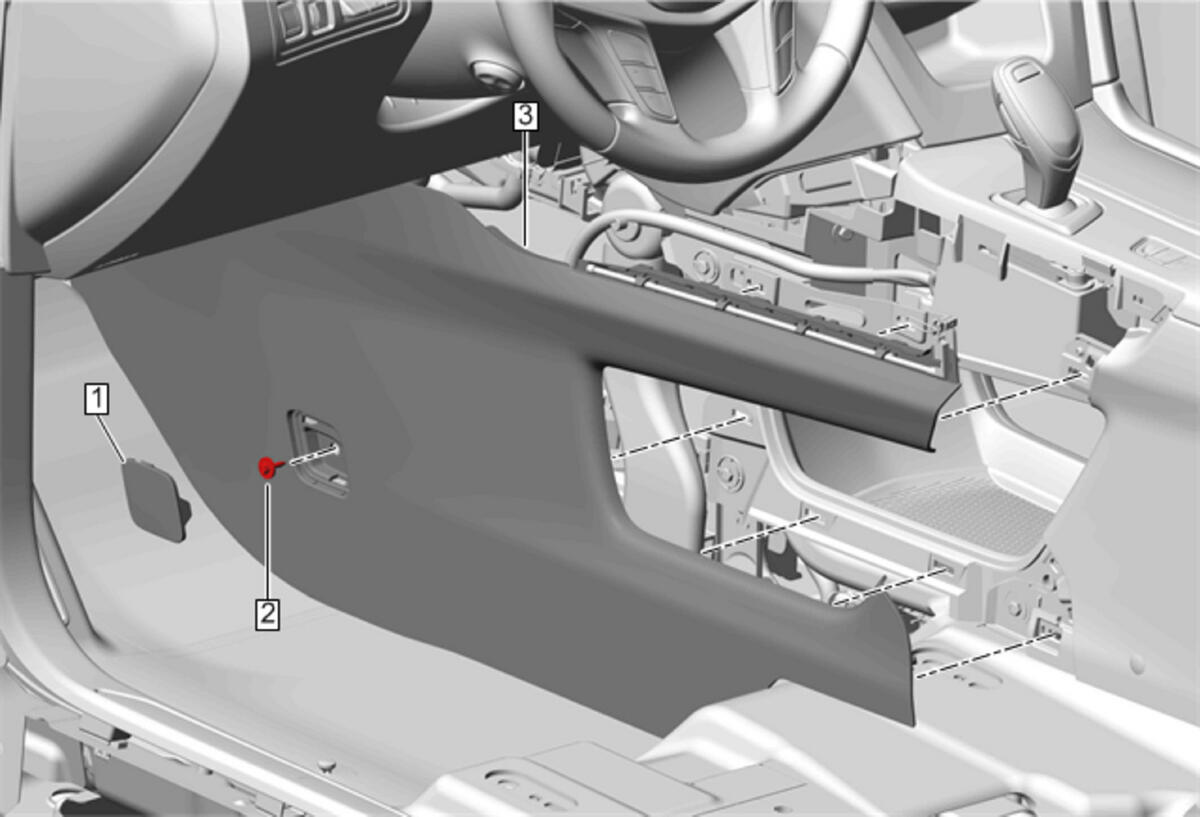

  10. GM4278584

    Front Floor Console Extension Panel - Left Side (3) - Install - Front Floor Console Extension Panel Replacement - Left Side
