Front Floor Console Extension Panel Replacement

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

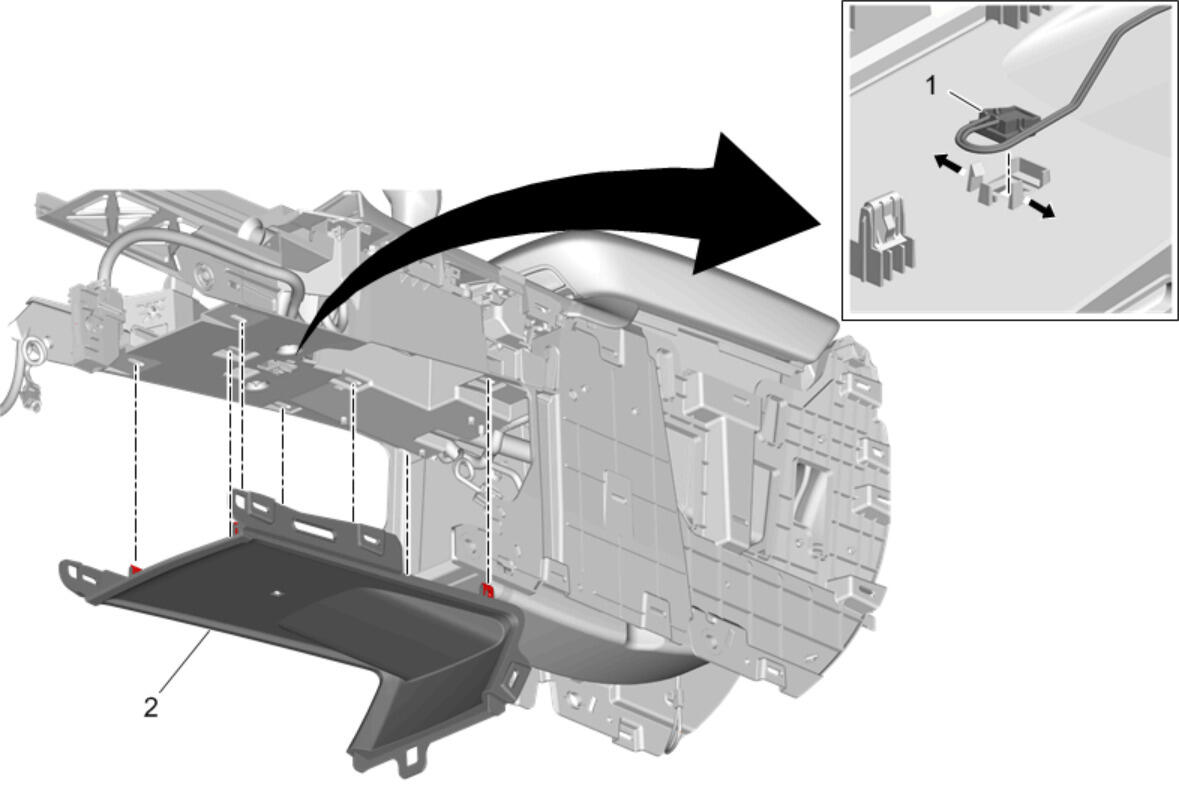

GM4293082
Callout Component Name

Preliminary Procedure

  1. Front Floor Console Replacement
  2. Front Floor Rear Console Side Trim Panel Replacement - Left Side
  3. Front Floor Rear Console Side Trim Panel Replacement - Right Side
1 Front Floor Console Flood Lamp
Procedure
Release the plastic retaining tabs.
2 Front Floor Console Extension Panel
Procedure
Release the clips with a suitable tool.
