Installation Procedure

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

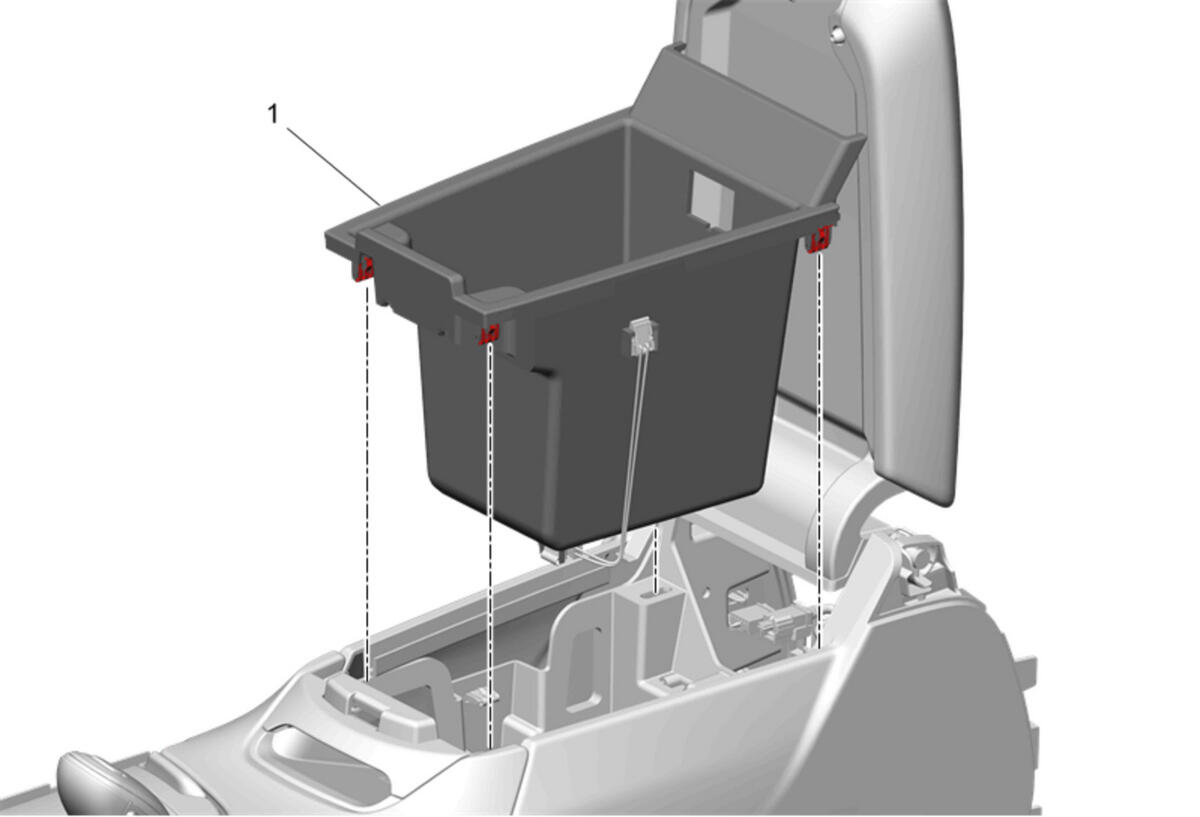

  1. GM4292609

    Connect the electrical connector.

  2. Front Floor Console Compartment (1) - Install
  3. GM4288920

    Theft Deterrent Module (2) - Install - Theft Deterrent Module Replacement

  4. GM4279662

    Audio Disc Player and USB Receptacle (1) - Install - Audio Disc Player and USB Receptacle Replacement
