Installation Procedure

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

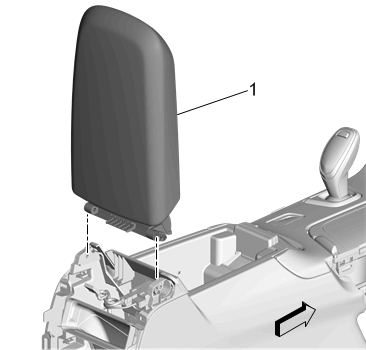

  1. GM4286662

    Install the front floor console armrest (1) to the front floor console assembly.

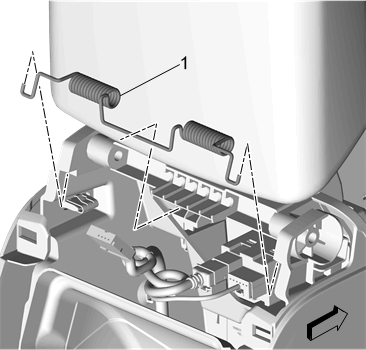

  2. GM4286661

    Attach the ends of the front floor console armrest hinge spring (1) to the armrest assembly.

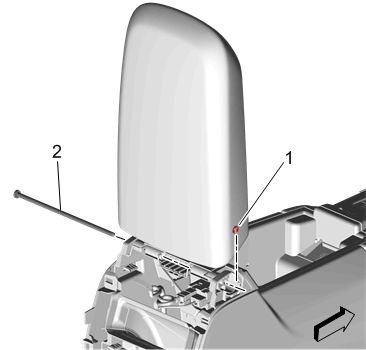

  3. GM4286660

    Install the front floor console compartment door hinge pin (2) to the armrest assembly.

  4. Install the front floor console compartment door hinge pin retainer (1) to the hinge pin (2).
  5. Front Floor Console Rear Trim Panel - Install Front Floor Console Rear Trim Panel Replacement
