Blower Motor Replacement
WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

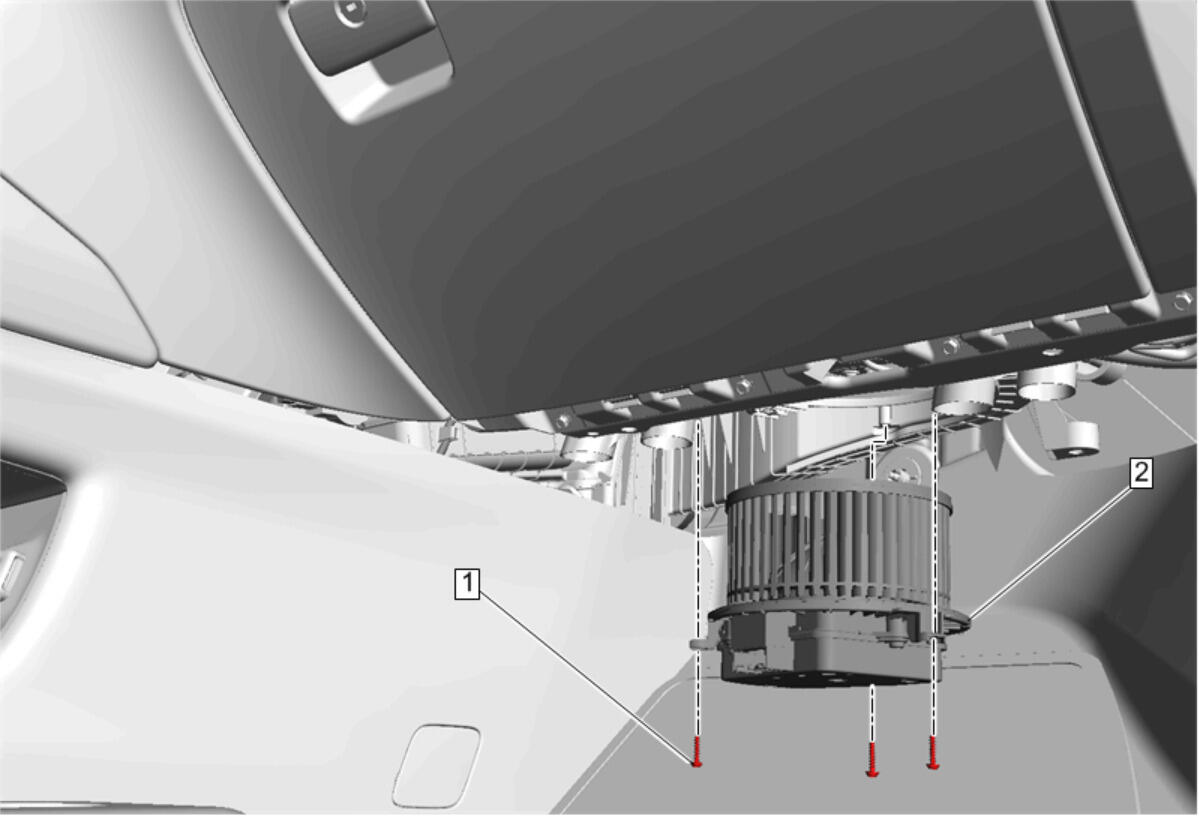

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Insulator Replacement - Right Side |
|
| 1 | Blower Motor Bolt[3x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Blower Motor Procedure Disconnect the electrical connector. |
