Air Distributor Duct Adapter Replacement

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

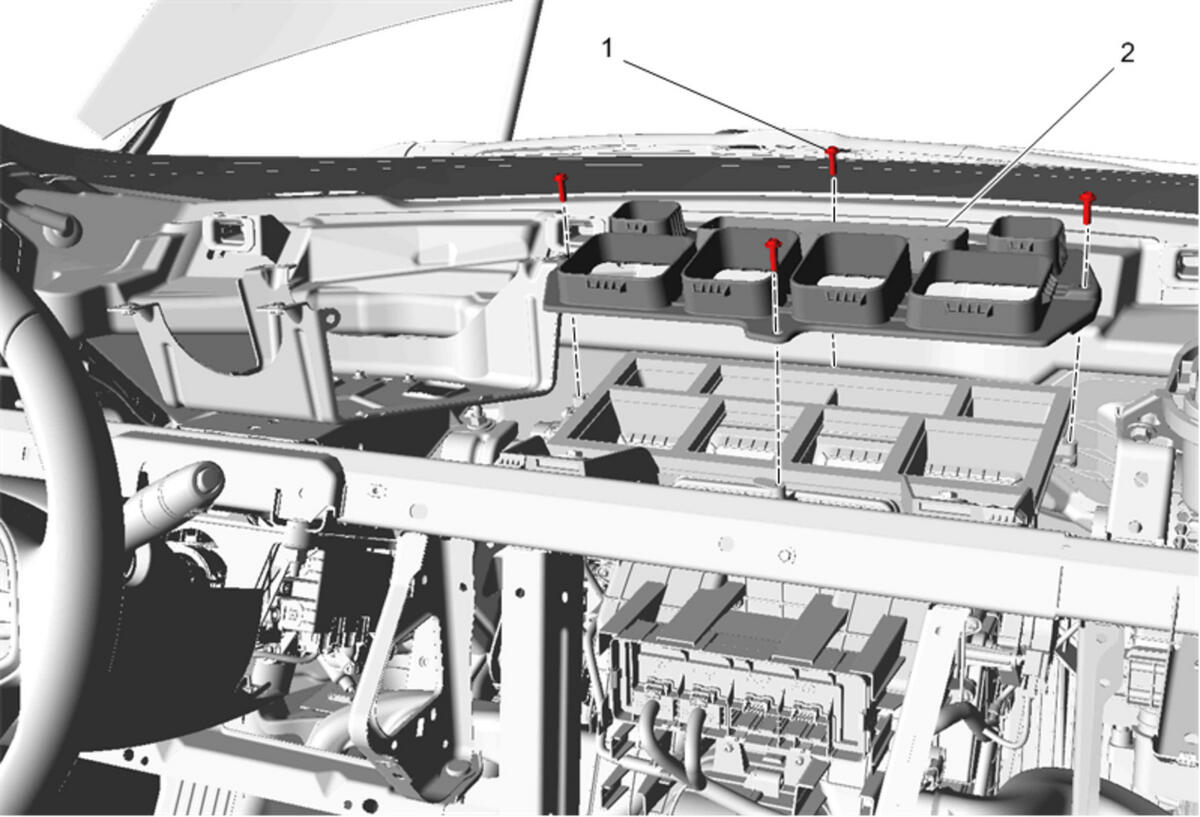

GM4310268Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Air Outlet Duct Replacement
  2. Instrument Panel Outer Air Outlet Duct Replacement - Left Side
  3. Instrument Panel Outer Air Outlet Duct Replacement - Right Side
1 Air Distributor Duct Adapter Bolt[4x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Air Distributor Duct Adapter
