Removal Procedure

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning Evaporator and Blower Module(1) - Remove - Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

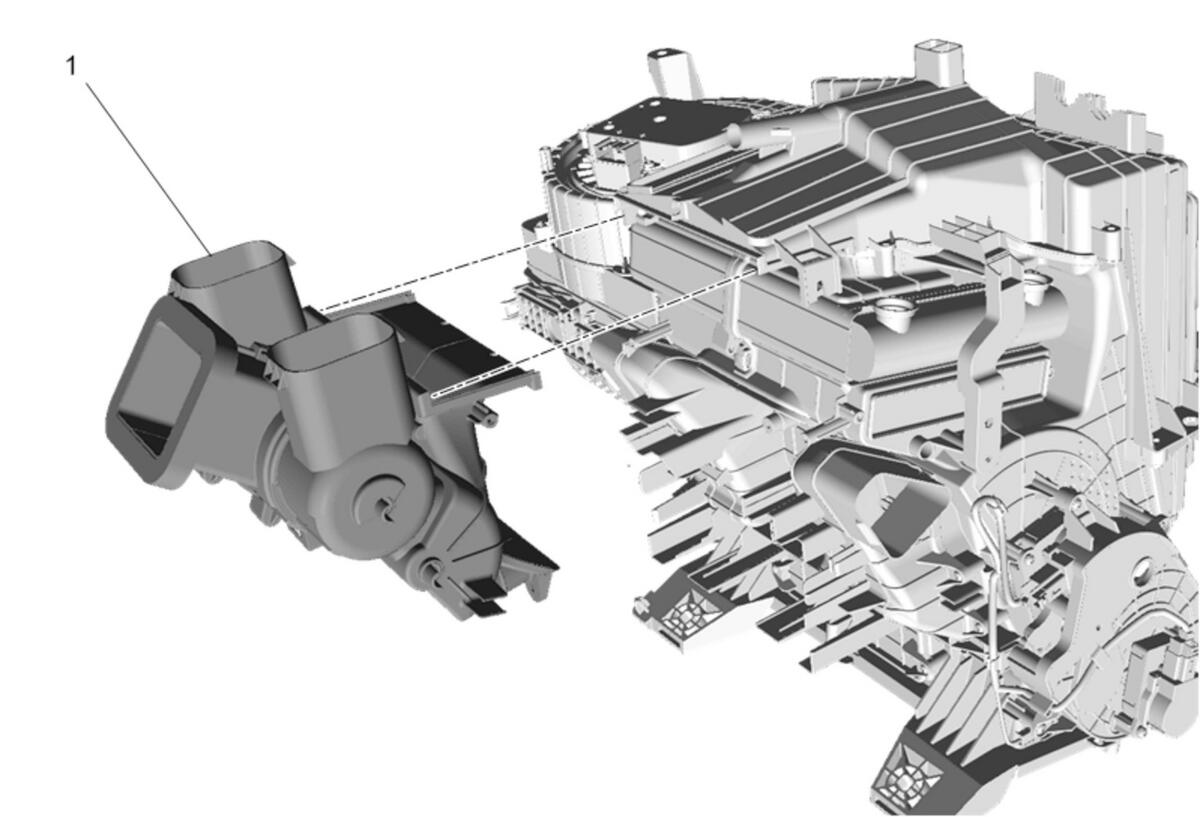

Air Inlet Housing(1) - Remove - Air Inlet Housing Replacement
Courtesy of GENERAL MOTORS COMPANY

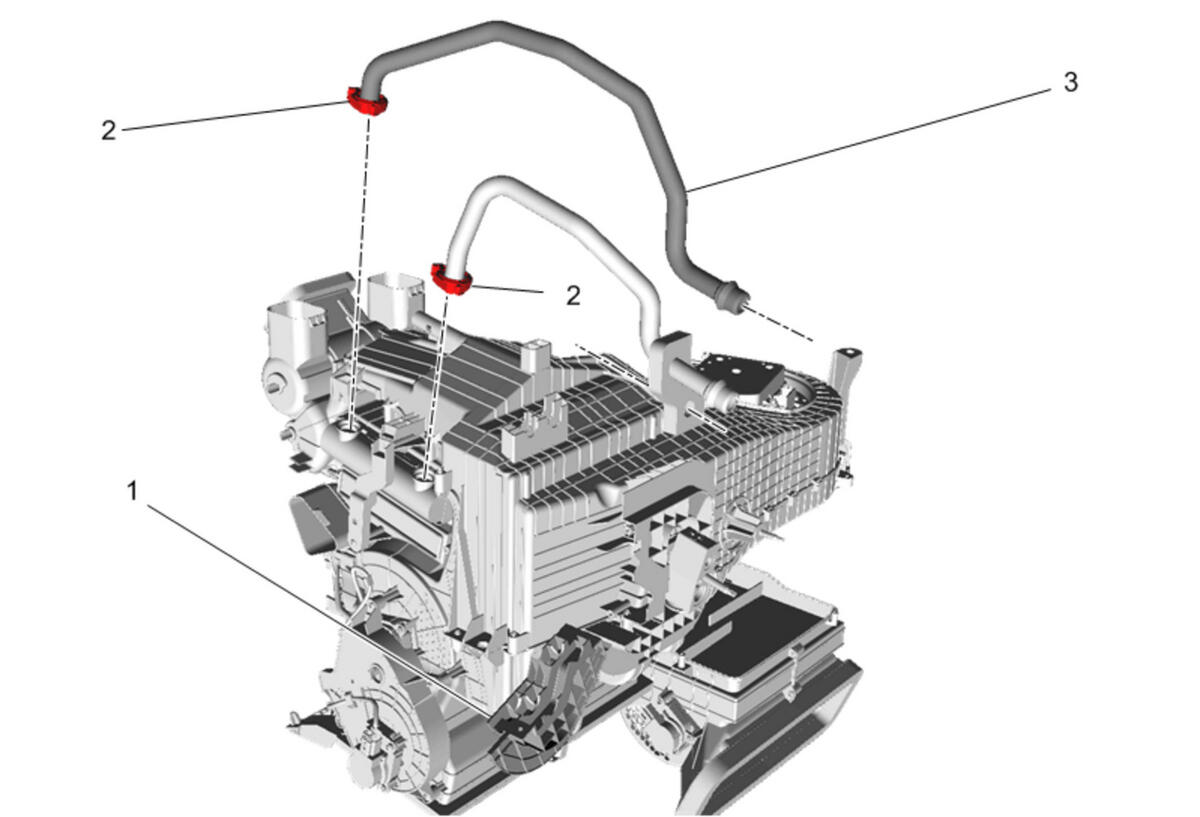

Heater Core Outlet Tube(3) - Remove - Heater Core Outlet Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

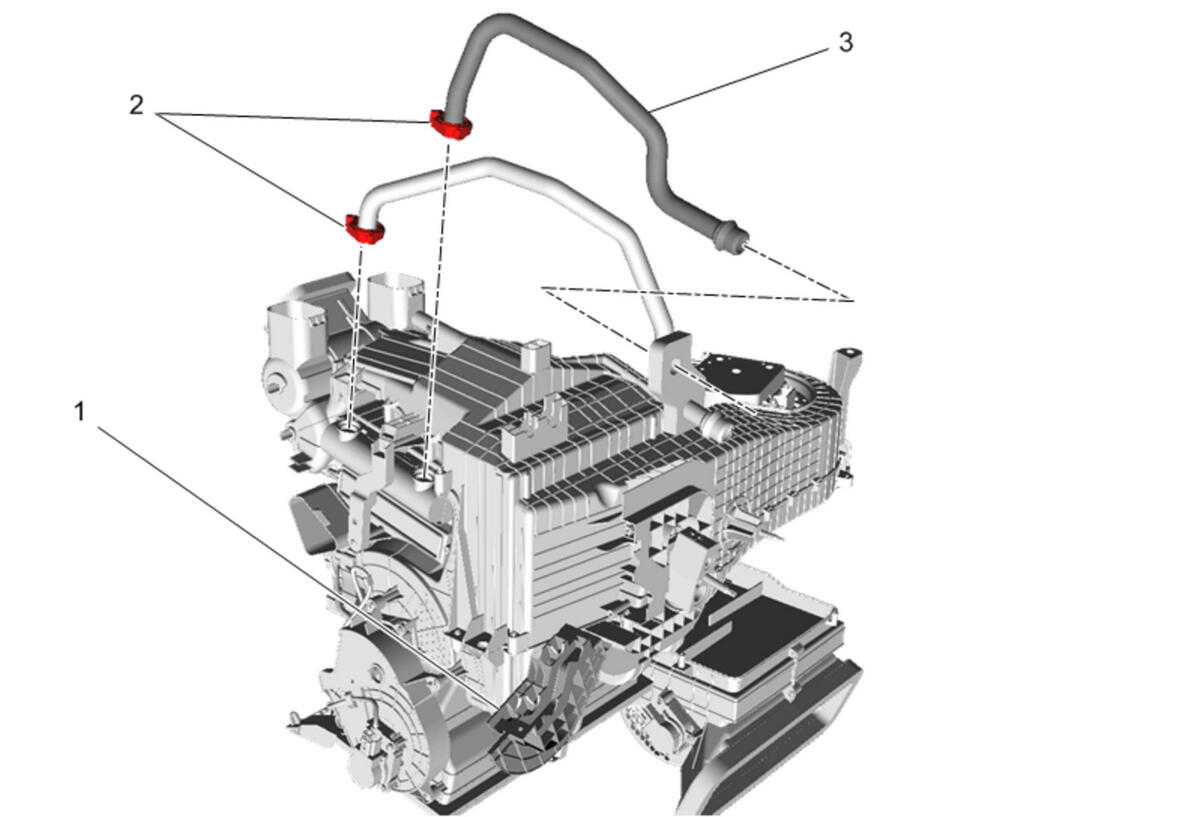

Heater Core Inlet Tube(3) - Remove - Heater Core Inlet Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

Retainer Clip(1) - Remove[5x]
Courtesy of GENERAL MOTORS COMPANY

Heater Core Bracket Bolt(1) - Remove[2x]
Courtesy of GENERAL MOTORS COMPANY

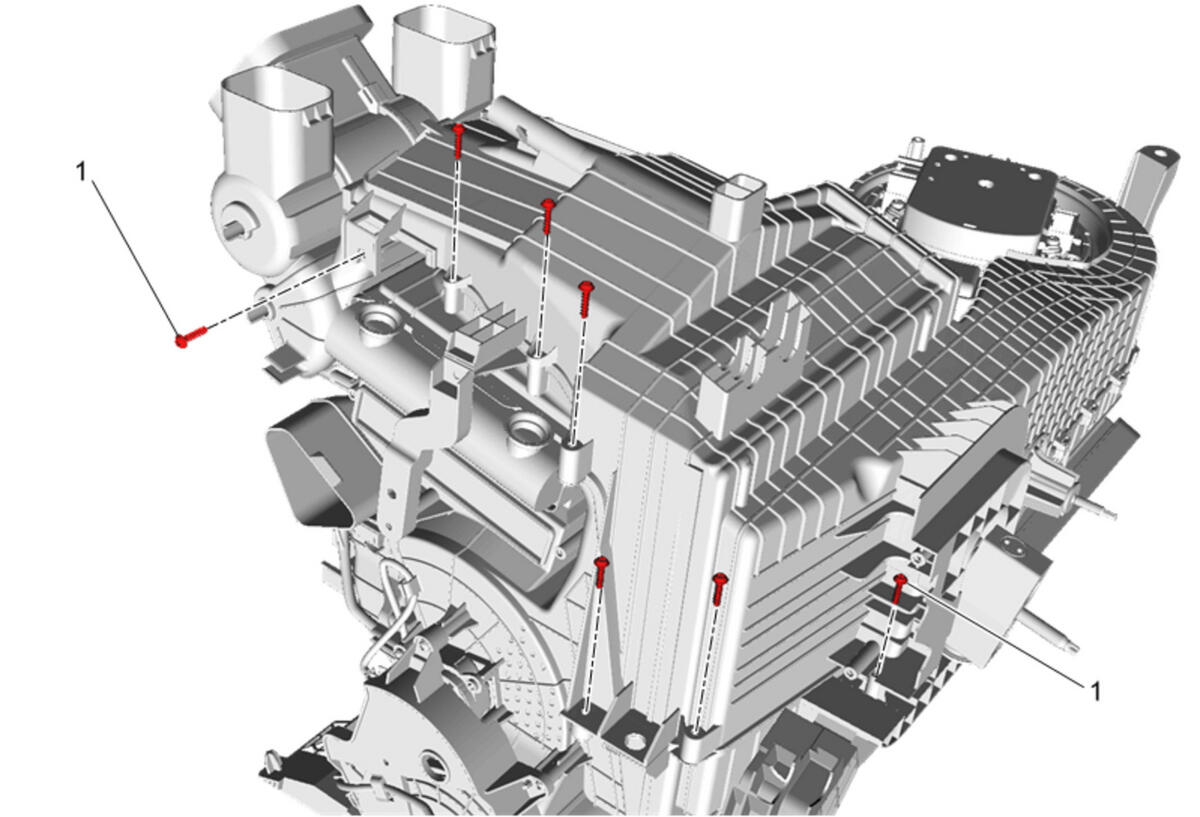

Heater and Air Conditioning Evaporator and Blower Lower Case Bolt (1) - Remove [7x]
Courtesy of GENERAL MOTORS COMPANY

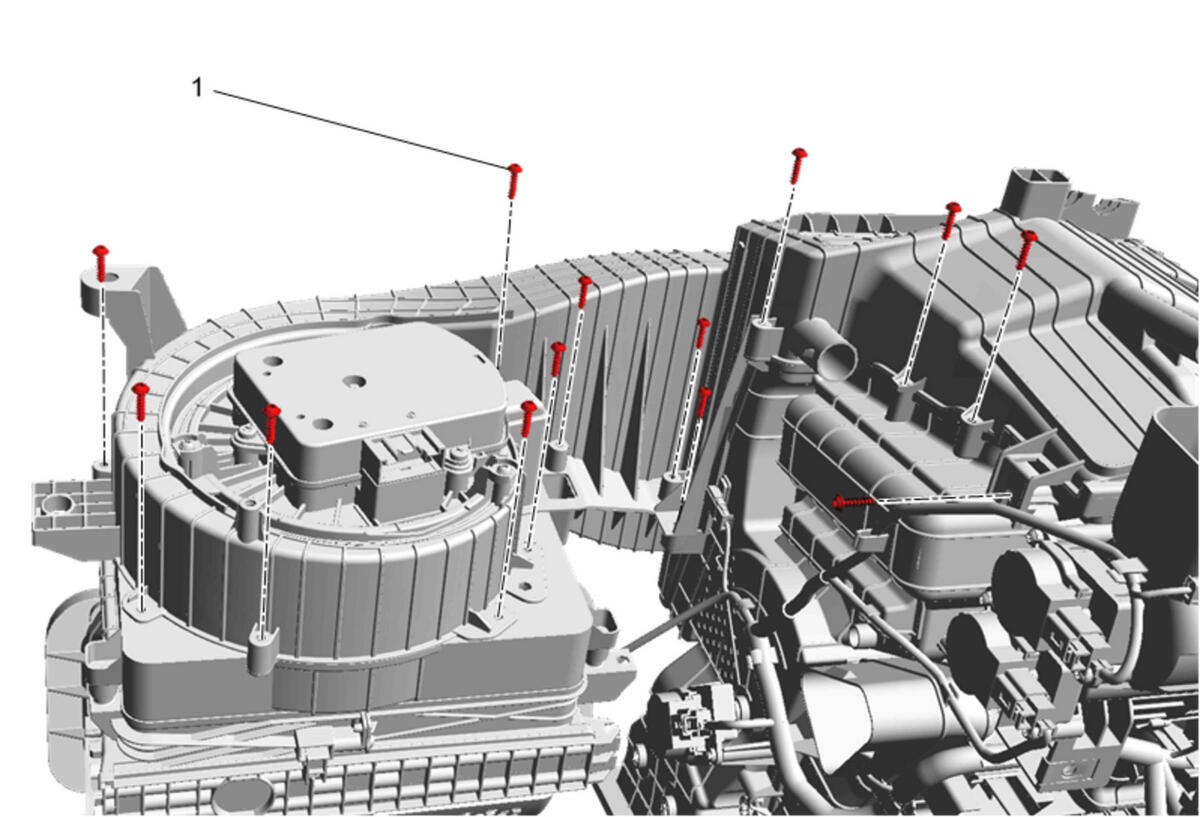

Heater and Air Conditioning Evaporator and Blower Lower Case Bolt (1) - Remove [13x]
Courtesy of GENERAL MOTORS COMPANY

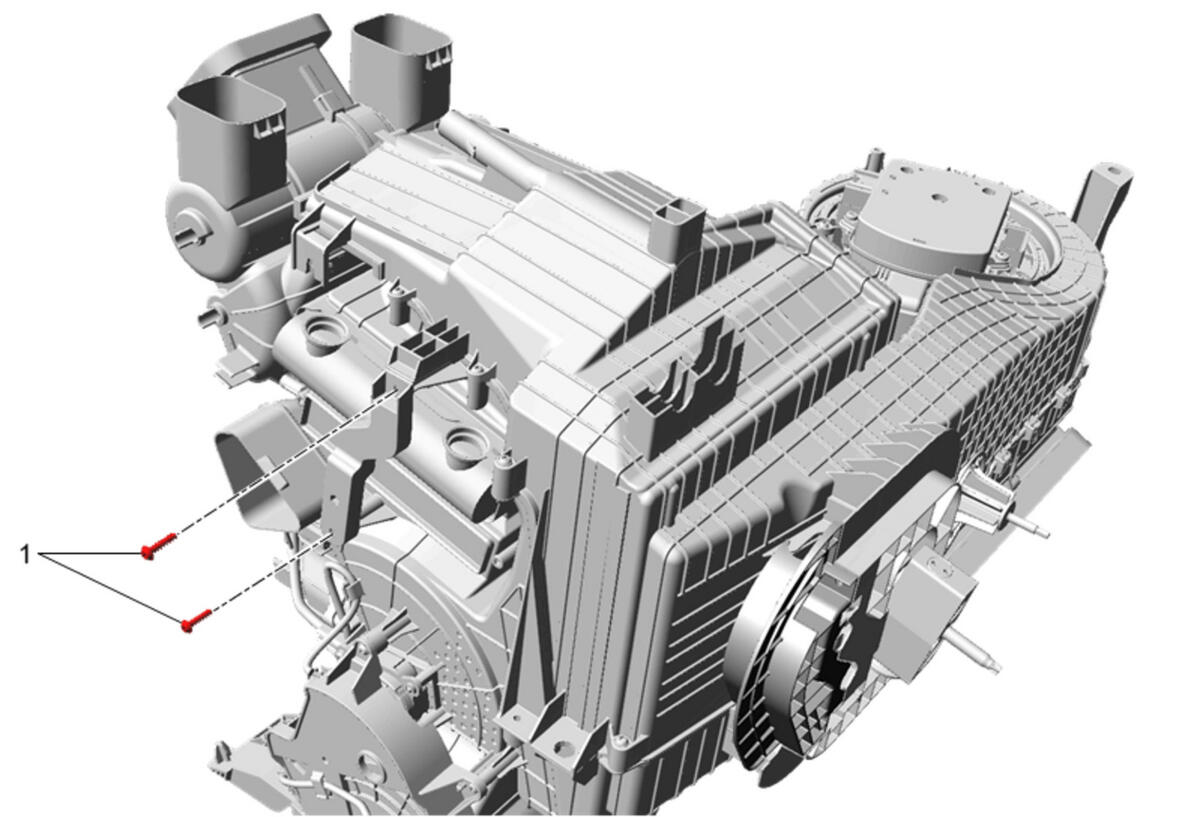

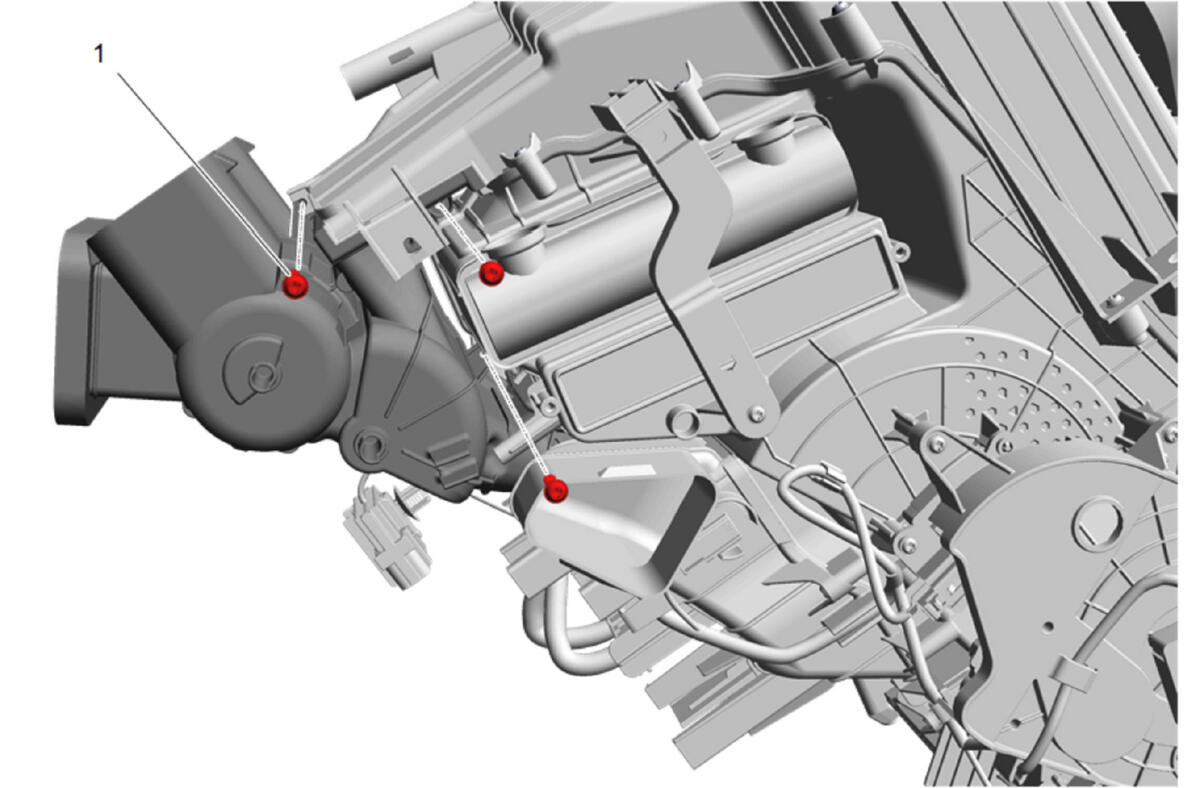

Front Floor Console Air Outlet Duct Adaptor Bolt (1) - Remove[2x]
Courtesy of GENERAL MOTORS COMPANY

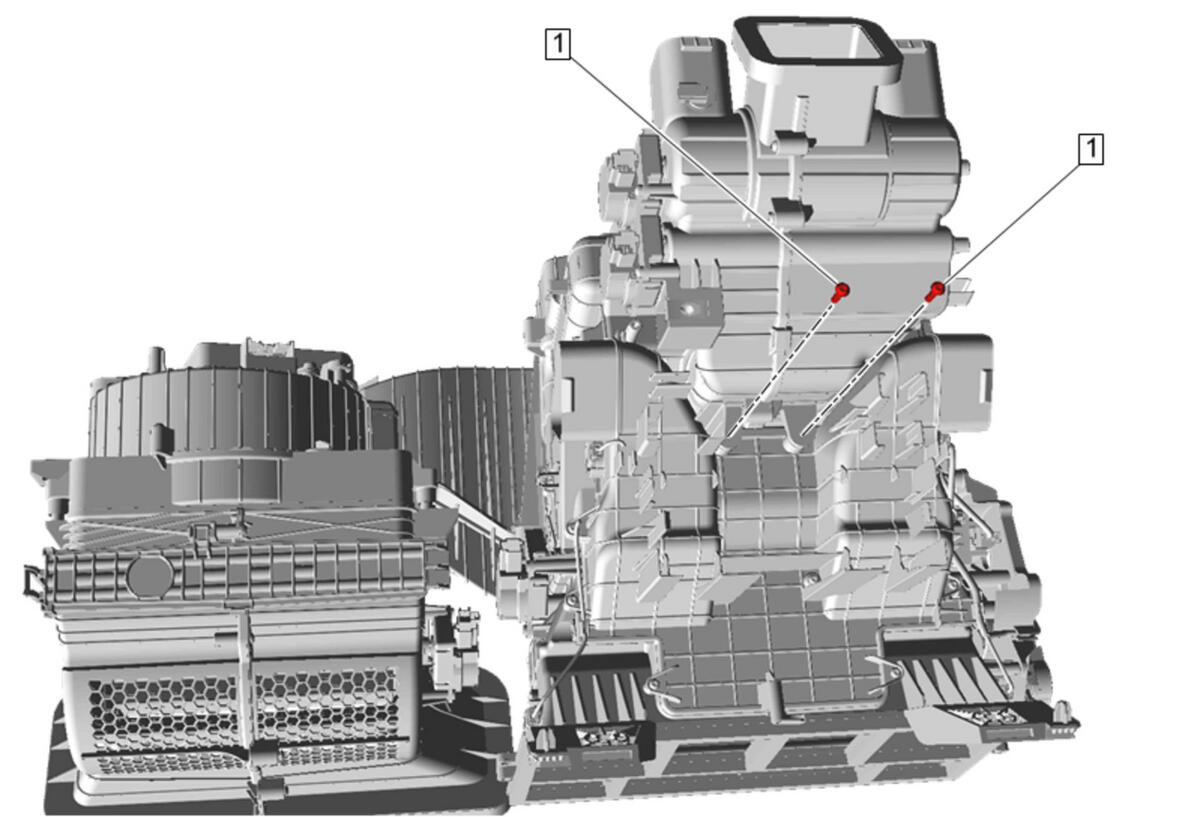

Front Floor Console Air Outlet Duct Adaptor Bolt (1) - Remove[2x]
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Air Outlet Duct Adaptor (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning Evaporator and Blower Lower Case(1) - Remove
Courtesy of GENERAL MOTORS COMPANY

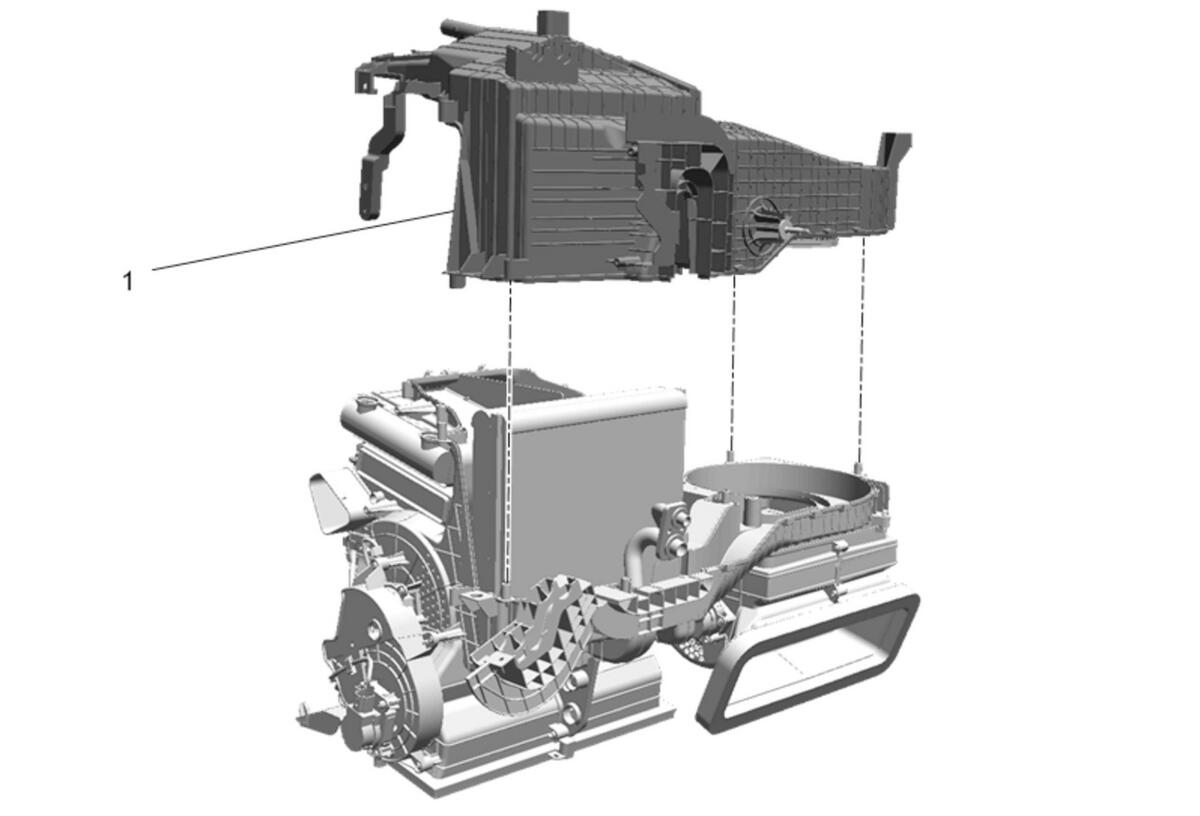

Air Conditioning Evaporator(1)@Heater and Air Conditioning Evaporator and Blower Upper Case(2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning Evaporator and Blower Upper Case Bolt (1) - Remove
Air Distributor Case(2)@Heater and Air Conditioning Evaporator and Blower Upper Case(3) - Remove
Transfer components as necessary.
