Liftgate Latch Striker Replacement
WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

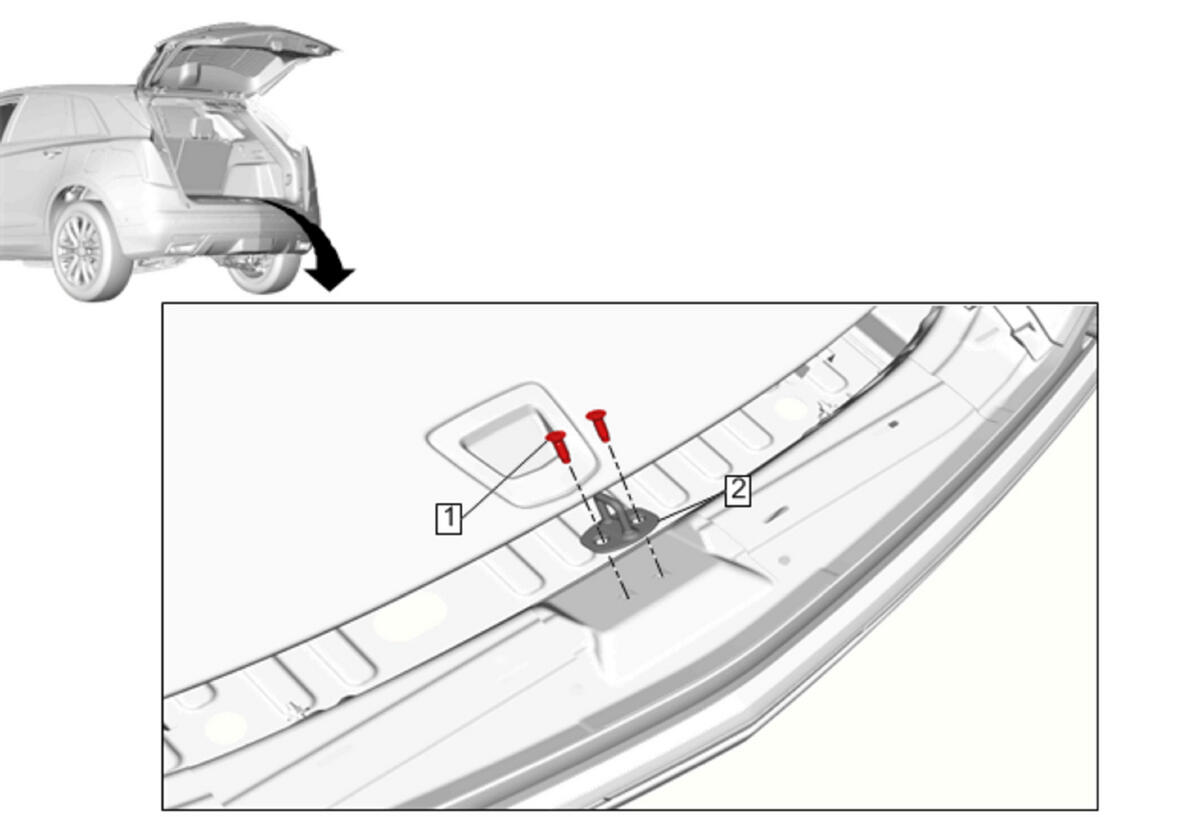

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear End Trim Finish Panel Replacement |
|
| 1 | Liftgate Latch Striker Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Liftgate Latch Striker Procedure Mark the location of the striker with a grease pencil to ensure proper alignment during installation. |
