Door Lock Switch Replacement - Passenger Front

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Side Door Trim Replacement Reposition insulator, as required.

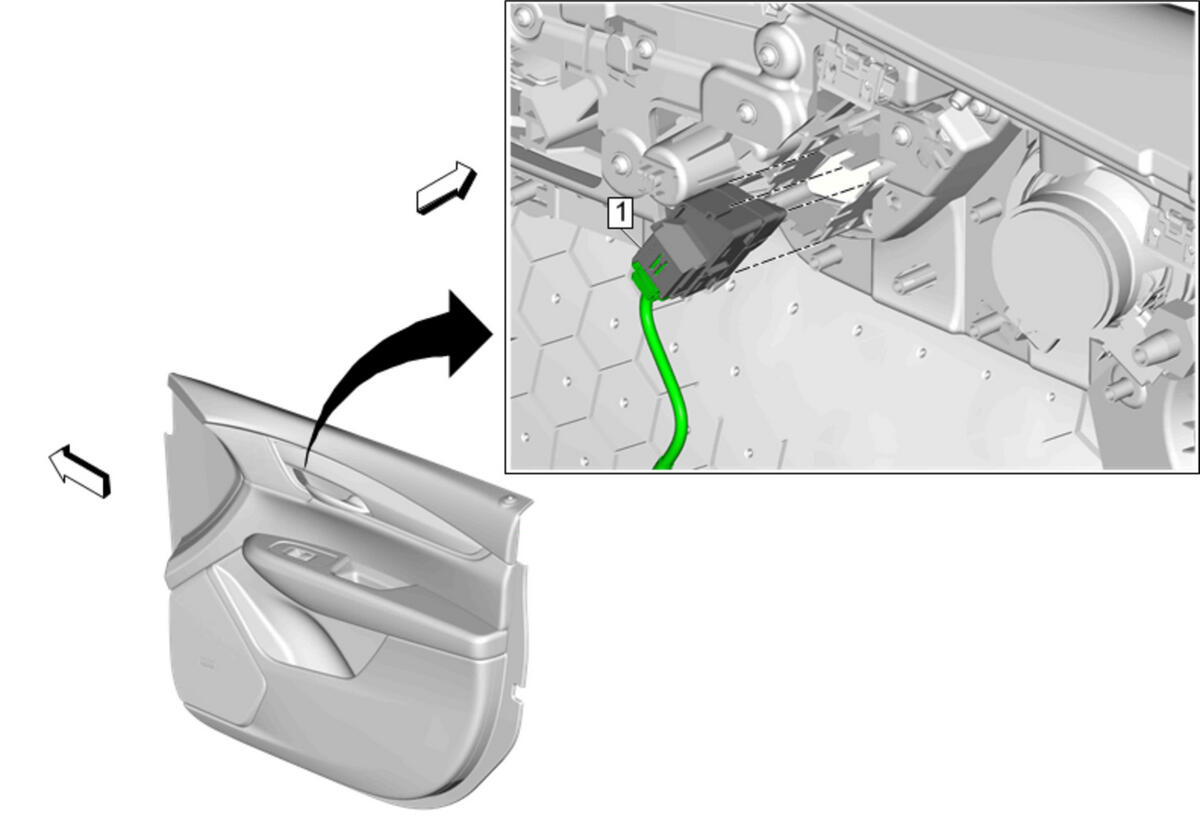

1	Door Lock Switch Passenger Front Procedure From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Front Side Door Trim Replacement
Reposition insulator, as required.

Door Lock Switch Passenger Front

Procedure

From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.
Disconnect the electrical connector.
