Front Side Door Window Replacement

Courtesy of GENERAL MOTORS COMPANY

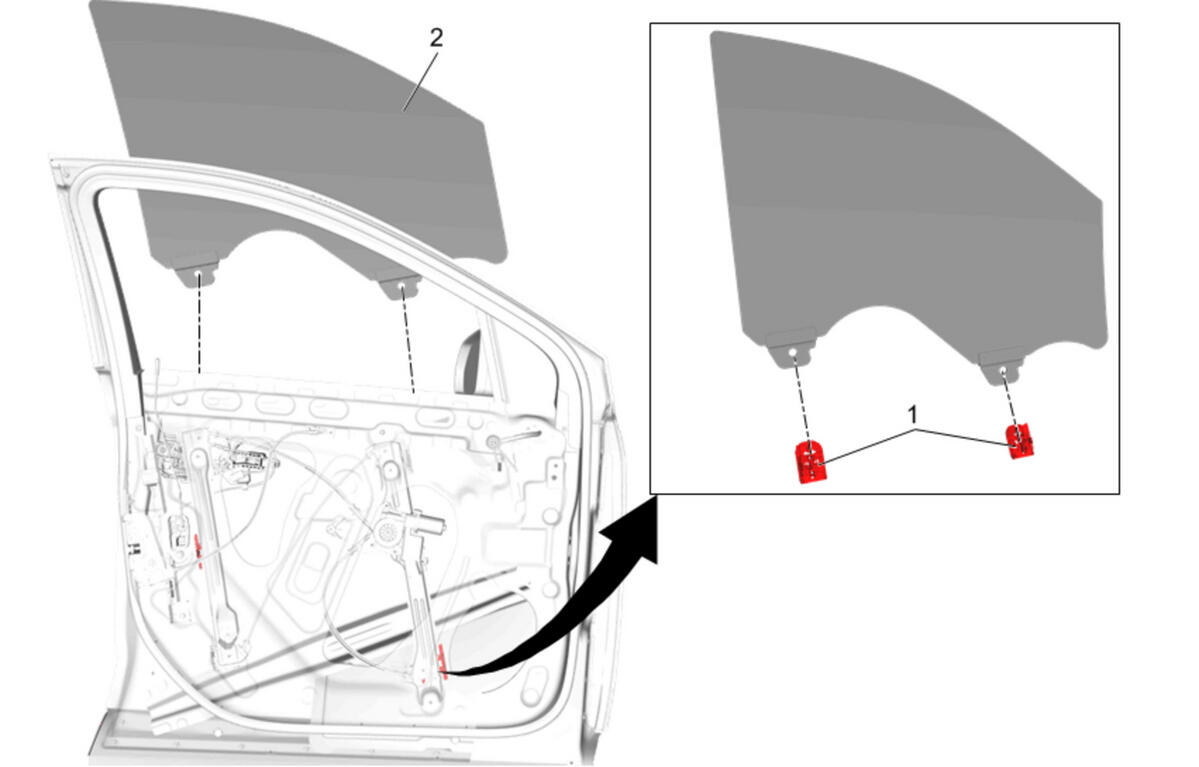

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. CAUTION: Refer to Paint Damage Caution . Preliminary Procedures Front Side Door Window Channel Retainer Replacement Front Side Door Window Inner Sealing Strip Replacement Front Side Door Window Belt Reveal Molding Replacement
1	Front Side Door Window Regulator Guide [2x] Procedure Place the front side door window in the halfway position to gain access to the window regulator guides. Use masking tape to hold the window to the door frame. Using the appropriate tool, release the window regulator guide from the window sash.
2	Front Side Door Window Procedure Lower the window regulator guide full down. Remove the masking tape from the window. Tilt the window downward in the front, pull up on the back and pull the window out from the door frame. Inspect the window for proper operation before installing the door trim panel.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

CAUTION:

Refer to Paint Damage Caution .

Preliminary Procedures

Front Side Door Window Regulator Guide [2x]

Procedure

Place the front side door window in the halfway position to gain access to the window regulator guides.
Use masking tape to hold the window to the door frame.
Using the appropriate tool, release the window regulator guide from the window sash.

Front Side Door Window

Procedure

Lower the window regulator guide full down.
Remove the masking tape from the window.
Tilt the window downward in the front, pull up on the back and pull the window out from the door frame.
Inspect the window for proper operation before installing the door trim panel.
