Installation Procedure

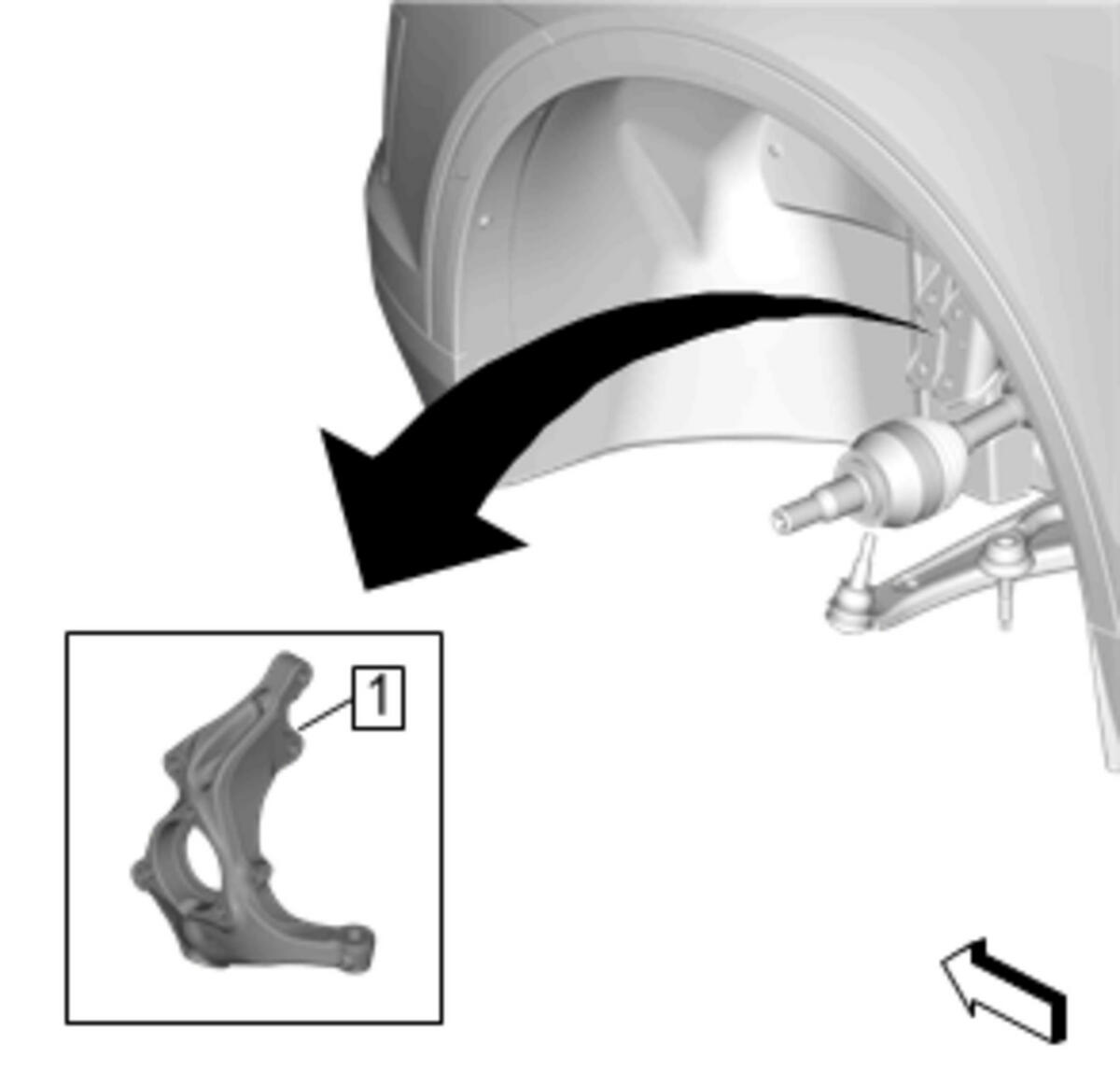

  1. GM4280676Courtesy of GENERAL MOTORS COMPANY

    Position the steering knuckle (1) on the vehicle.

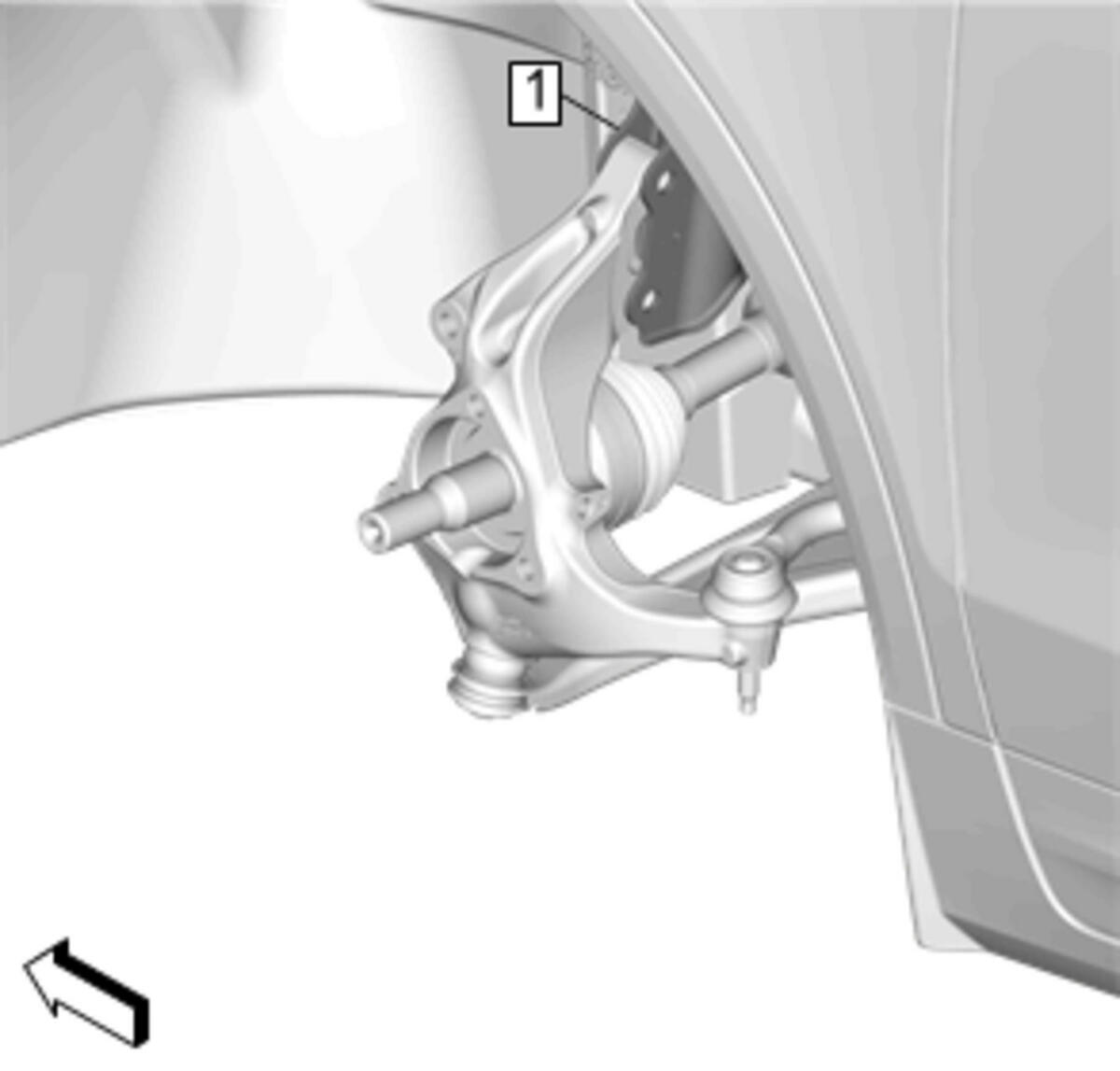

  2. GM4280675Courtesy of GENERAL MOTORS COMPANY

    Strut Assembly (1) @Steering Knuckle - Install - Strut Assembly Removal and Installation

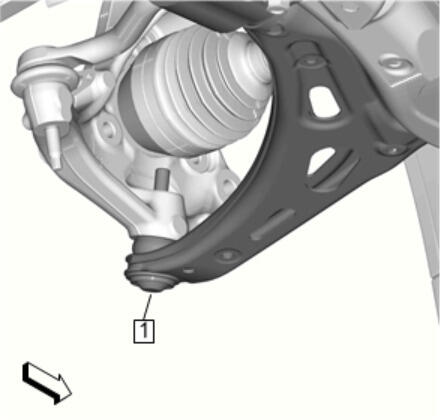

  3. GM4280674Courtesy of GENERAL MOTORS COMPANY

    Front Lower Control Arm (1) @Steering Knuckle - Install - Lower Control Arm Replacement

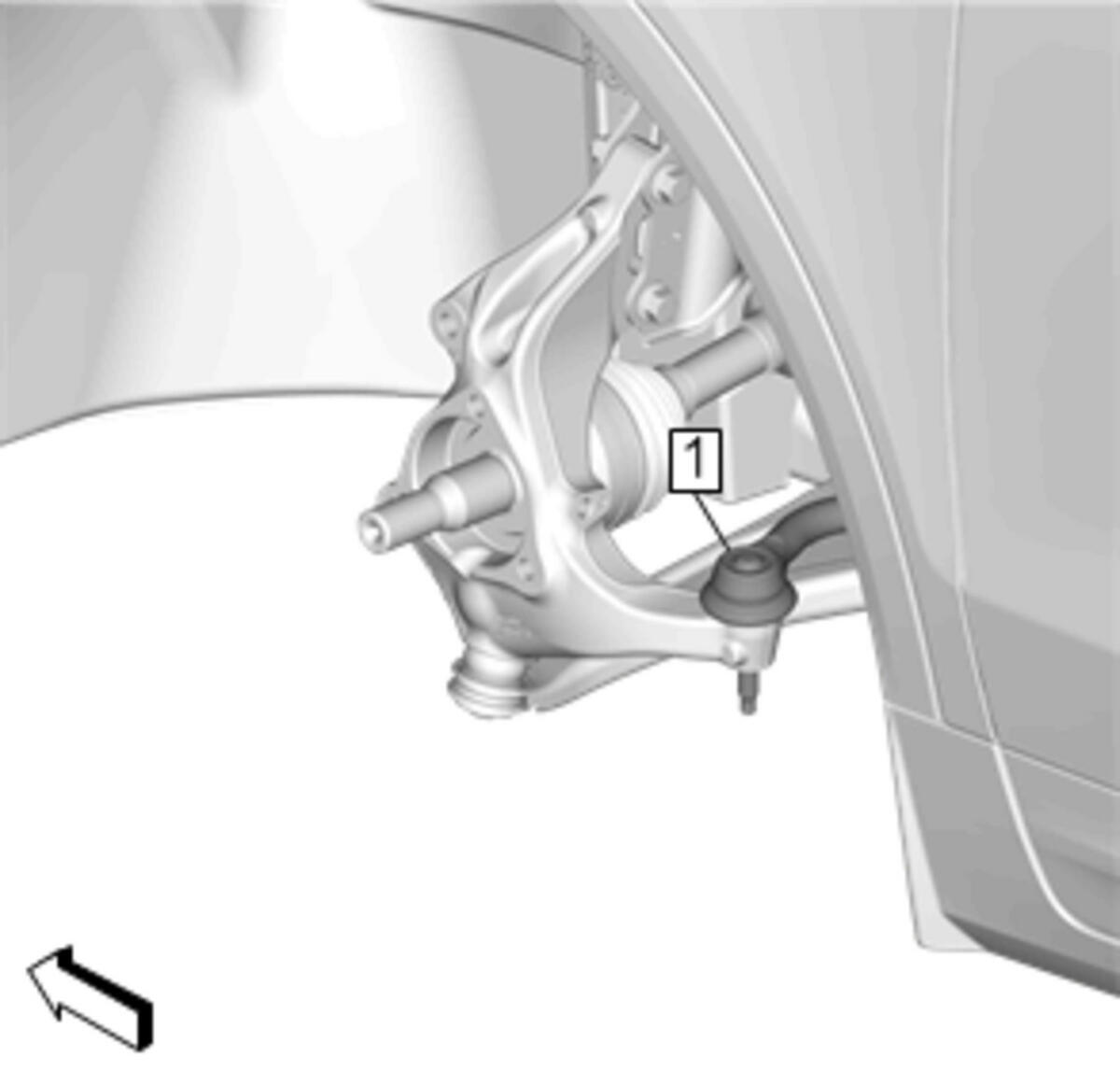

  4. GM4280672Courtesy of GENERAL MOTORS COMPANY

    Steering Linkage Outer Tie Rod (1) @Steering Knuckle - Install - Steering Linkage Outer Tie Rod Replacement

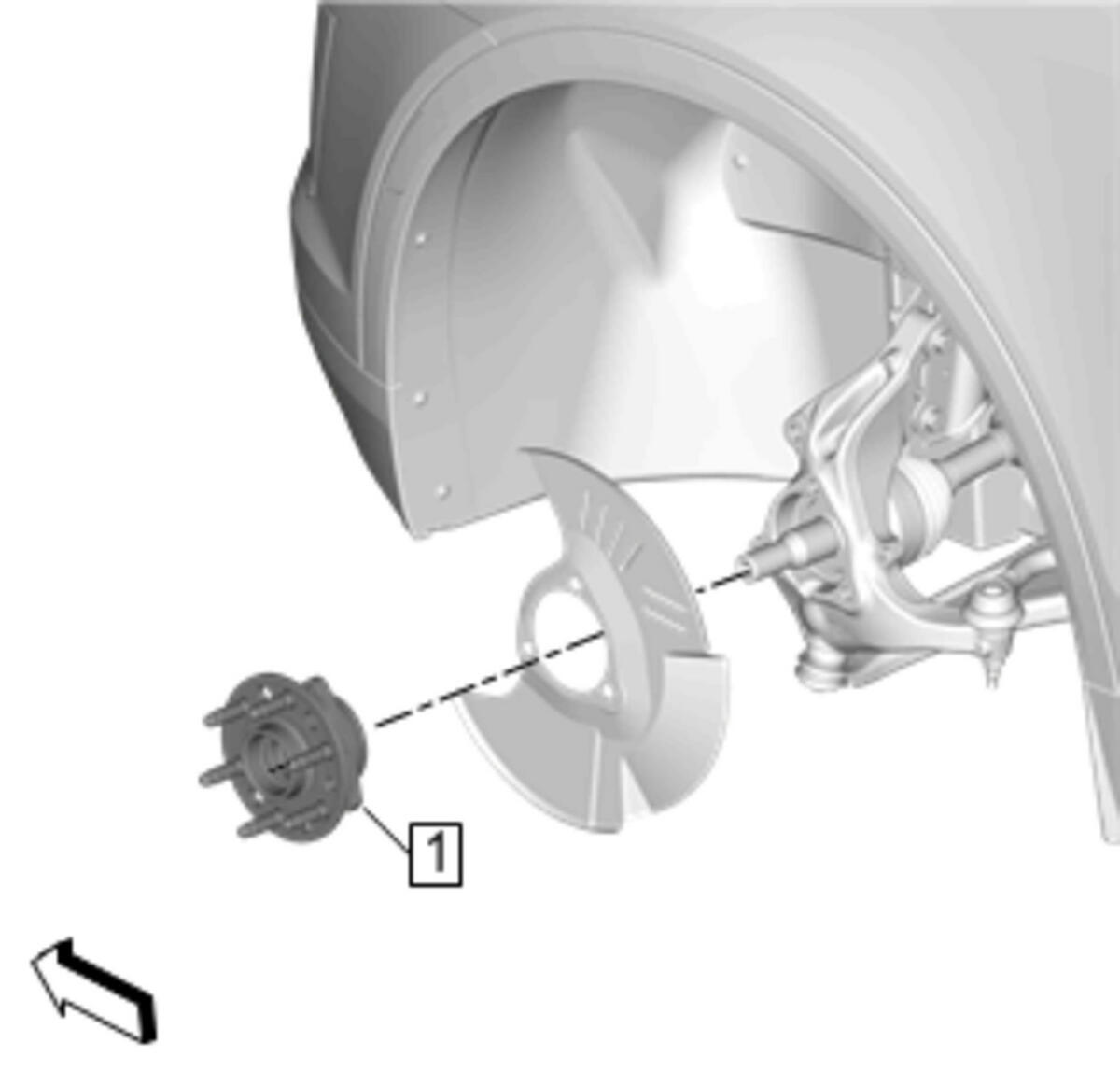

  5. GM4280670Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Bearing and Hub Assembly (1) - Install - Front Wheel Bearing and Hub Replacement
