Front Compartment Air Deflector Replacement

Courtesy of GENERAL MOTORS COMPANY

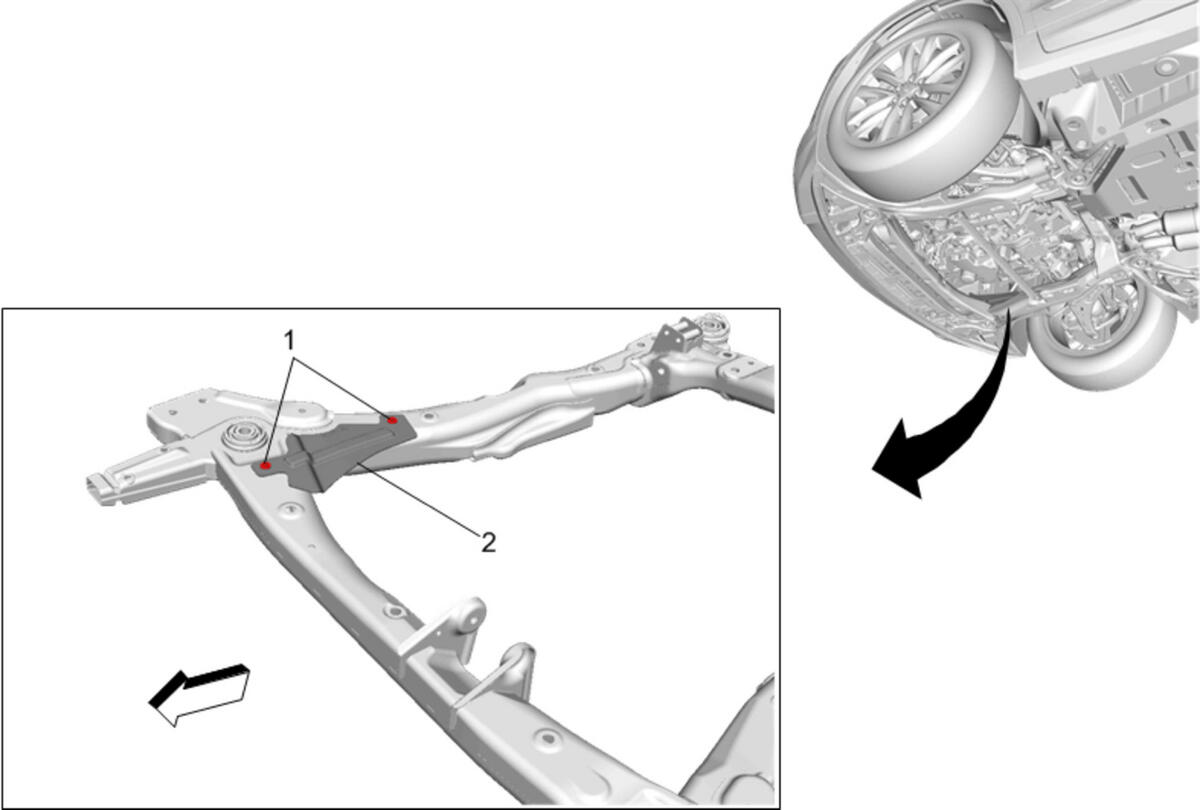

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Front Compartment Air Deflector Fastener [2X] CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Compartment Air Deflector
