Sunshade Support Replacement

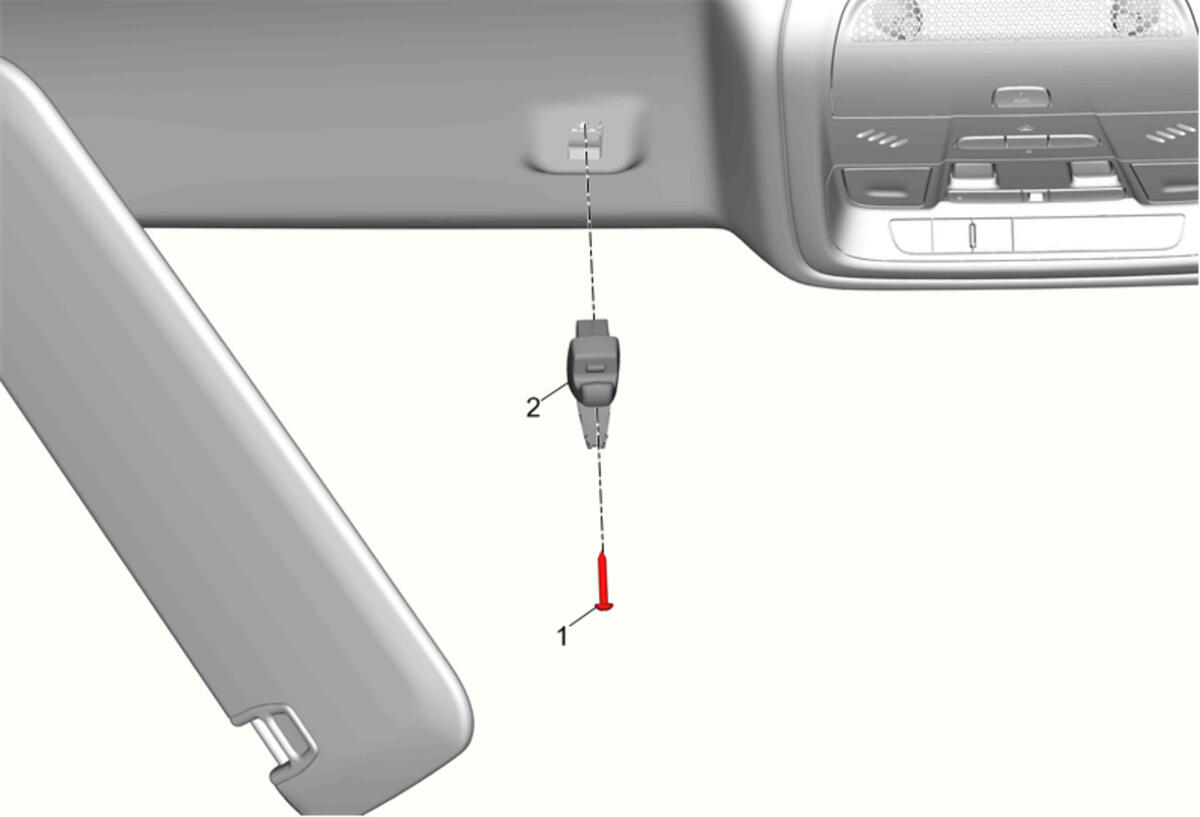

| Callout | Component Name |
|---|---|
| Preliminary Procedure Unclip the sunshade and rotate the sunshade to the side. |
|
| 1 | Sunshade Support Fastener
CAUTION:
Procedure Use a small flat-bladed tool to open the sunshade support bolt cover to access the fastener. Tighten 2 N.m (18 lb in) |
| 2 | Sunshade Support Procedure Using the appropriate tool, release the metal sunshade support retainer. |
