Cargo Partition Track Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

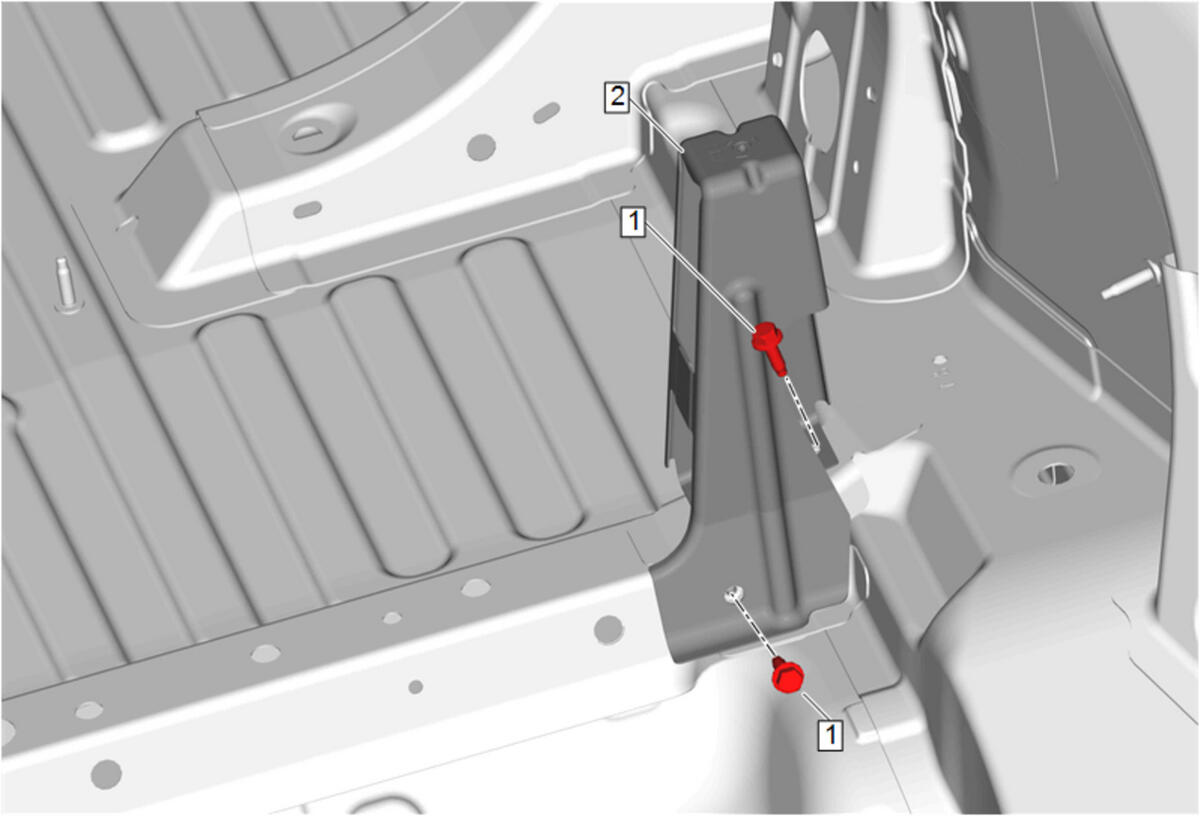

Callout	Component Name
Preliminary Procedure  Rear Compartment Floor Stowage Compartment Divider Replacement (Without KTI) Rear Compartment Floor Stowage Compartment Divider Replacement (With KTI)
1	Cargo Net Front Bracket Bolt [2x] CAUTION: Fastener Caution Tighten  11 N.m (97 lb in)
2	Cargo Partition Track Bracket
