Installation Procedure

  1. Install the steering wheel. (1)
    GM5034996Courtesy of GENERAL MOTORS COMPANY

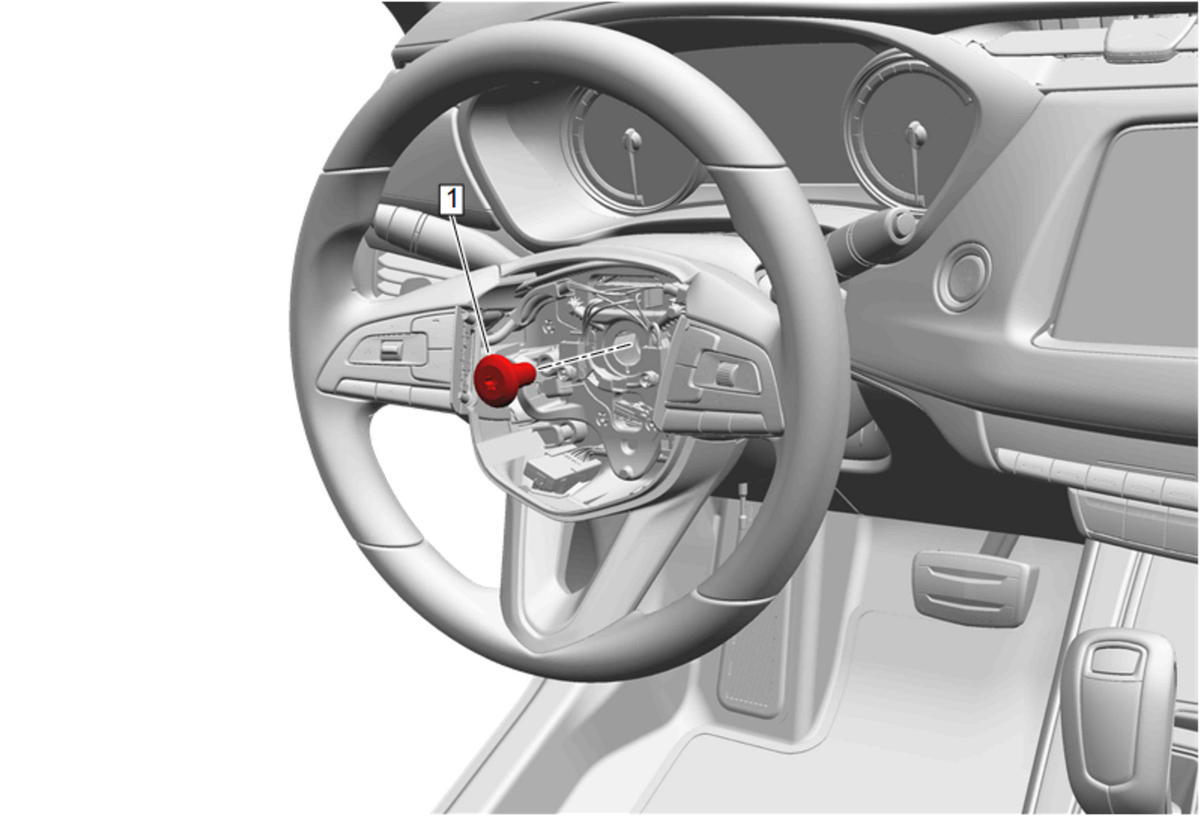

  2. Prepare the steering wheel bolt (1) for installation.
    GM5034954Courtesy of GENERAL MOTORS COMPANY
    1. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. (1)
    2. Apply thread locking adhesive to the external threads of the component. (1) Adhesives, Fluids, Lubricants, and Sealers
    3. CAUTION:

    Fastener Caution .

  3. Steering Wheel Bolt (1) - Install and tighten 45 N.m (33 lb ft)
  4. Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
