Left Rear of Engine Components

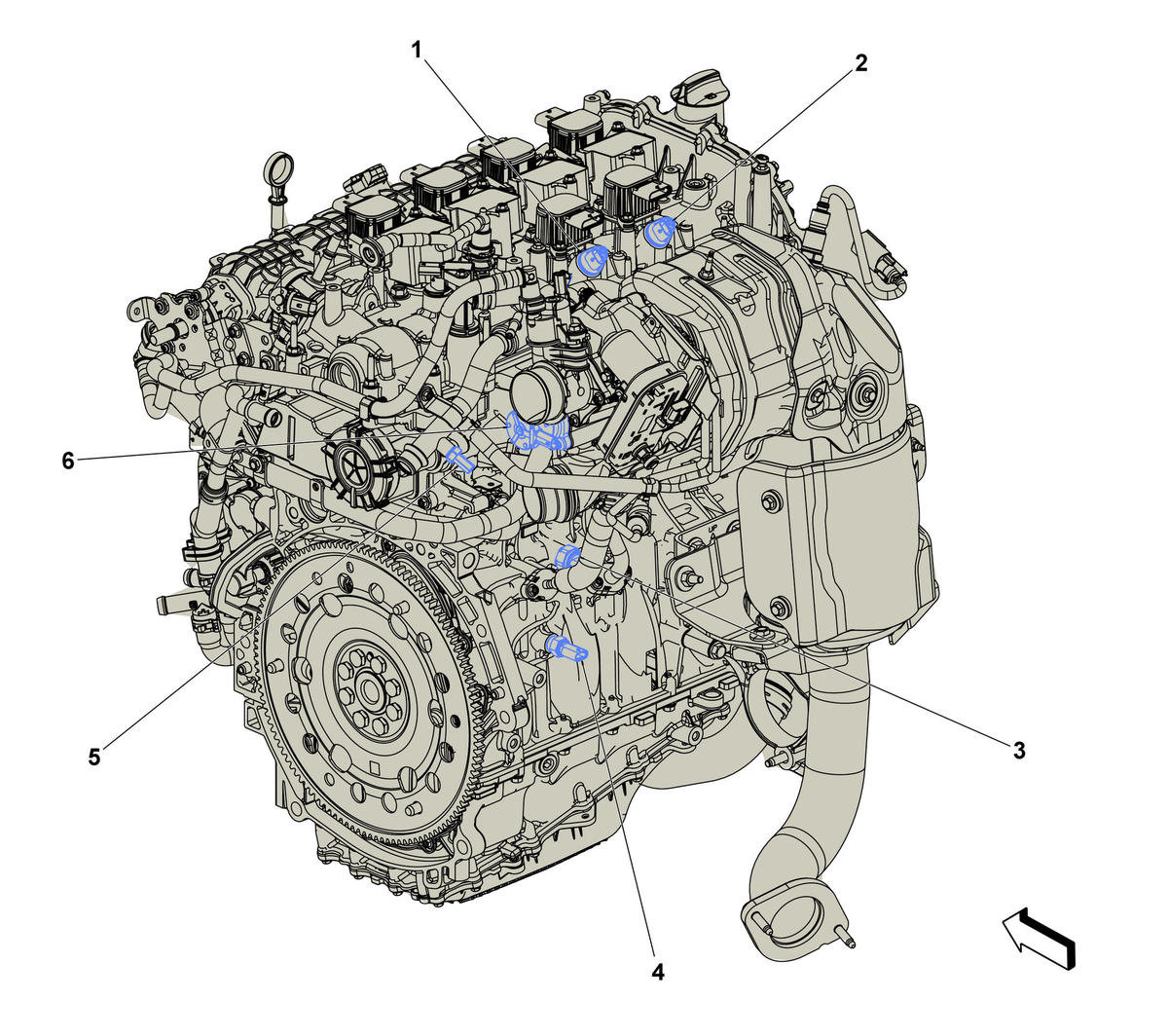

Fig 1: Left Rear of Engine Components Location
GM5400853Courtesy of GENERAL MOTORS COMPANY
Items
1. B339B Exhaust Camshaft Profile Actuator Position Sensor 2 B339B Exhaust Camshaft Profile Actuator Position Sensor 2
2. B339A Exhaust Camshaft Profile Actuator Position Sensor 1 B339A Exhaust Camshaft Profile Actuator Position Sensor 1
3. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor
4. B36 Engine Oil Temperature Sensor B36 Engine Oil Temperature Sensor
5. B34C Engine Coolant Temperature Sensor 3 B34C Engine Coolant Temperature Sensor 3
6. Q40 Turbocharger Bypass Solenoid Valve Q40 Turbocharger Bypass Solenoid Valve
