Bottom Left Front of the Engine

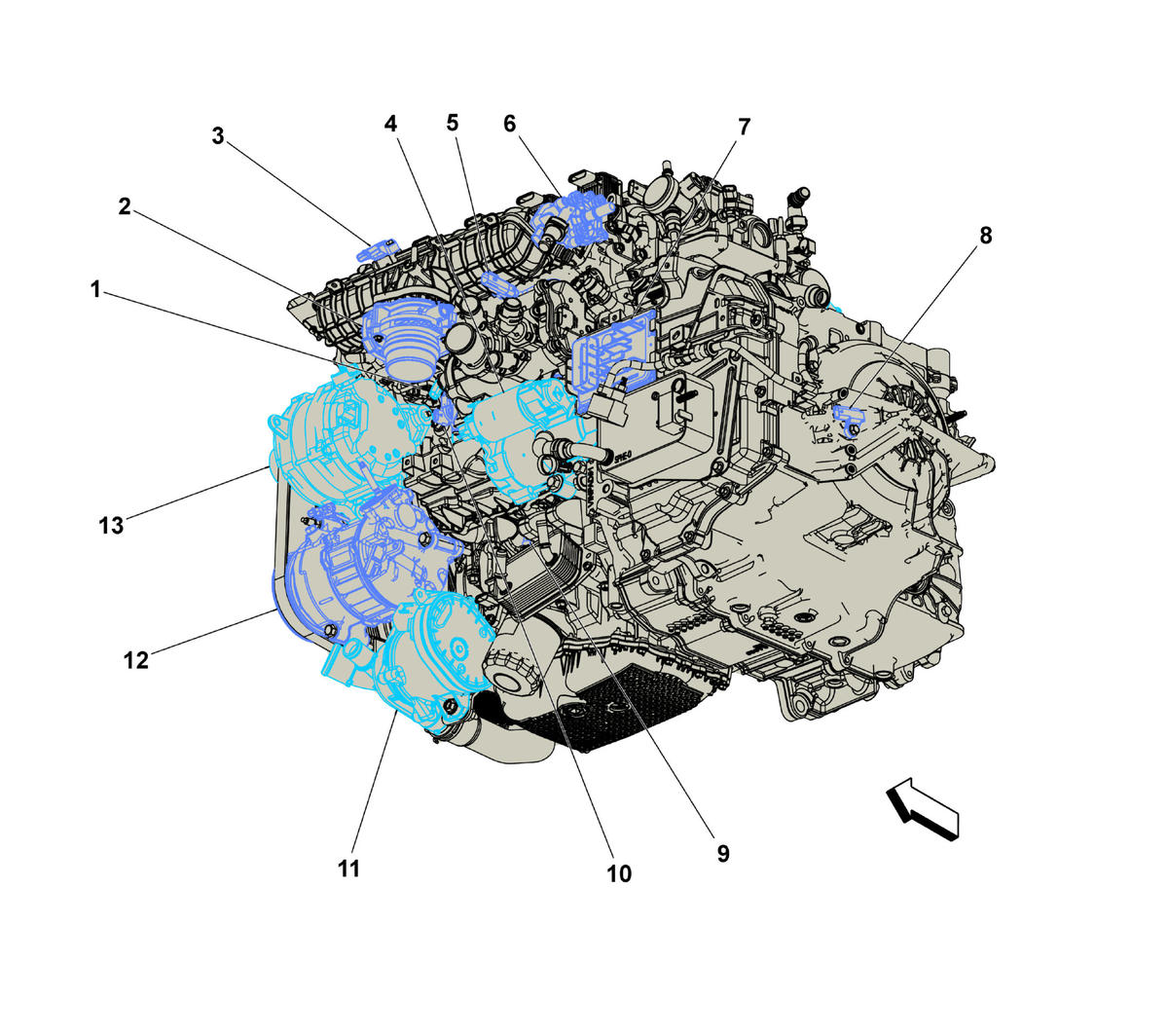

Fig 1: Bottom Left Front of Engine Component Location
GM4971578Courtesy of GENERAL MOTORS COMPANY
Items
1. B34B Engine Coolant Temperature Sensor 2 B34B Engine Coolant Temperature Sensor 2
2. Q38 Throttle Body Q38 Throttle Body
3. B65 Intake Manifold Pressure and Air Temperature Sensor B65 Intake Manifold Pressure and Air Temperature Sensor
4. M64 Starter Motor M64 Starter Motor X1 , or M64 Starter Motor X2
5. B68B Knock Sensor 2 B68B Knock Sensor 2
6. G58 Evaporative Emission Purge Pump G58 Evaporative Emission Purge Pump
7. K71 Transmission Control Module K71 Transmission Control Module
8. B14E Transmission Input/Intermediate Shaft Speed Sensor B14E Transmission Input/Intermediate Shaft Speed Sensor
9. B34C Engine Coolant Temperature Sensor 3 B34C Engine Coolant Temperature Sensor 3
10. Q97 Engine Coolant Flow Control Valve
11. G59 Engine Coolant Pump G59 Engine Coolant Pump
12. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
13. G13 Generator G13 Generator X1 , or G13 Generator X2
