Installation Procedure

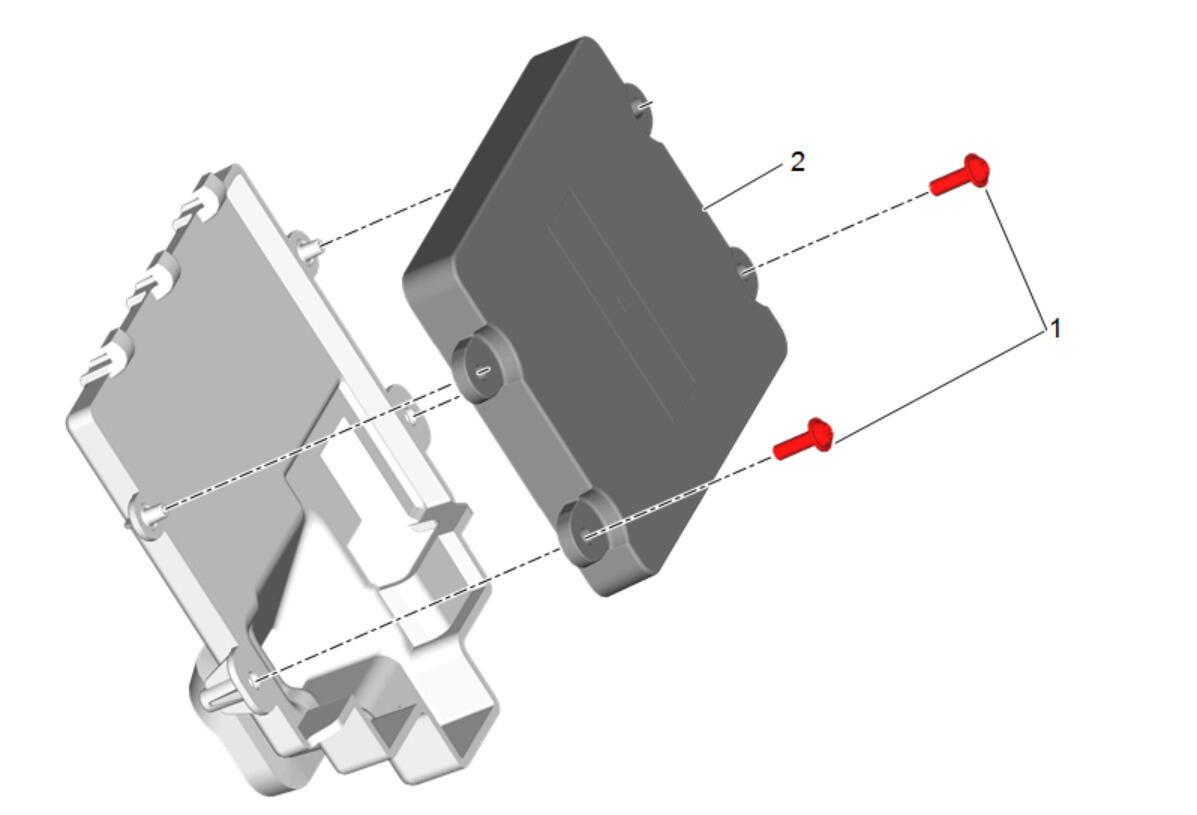

  1. GM5060656Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Wireless Charging System Module Bolt (1) - Install and tighten [2x] 1.2 N.m (11 lb in)

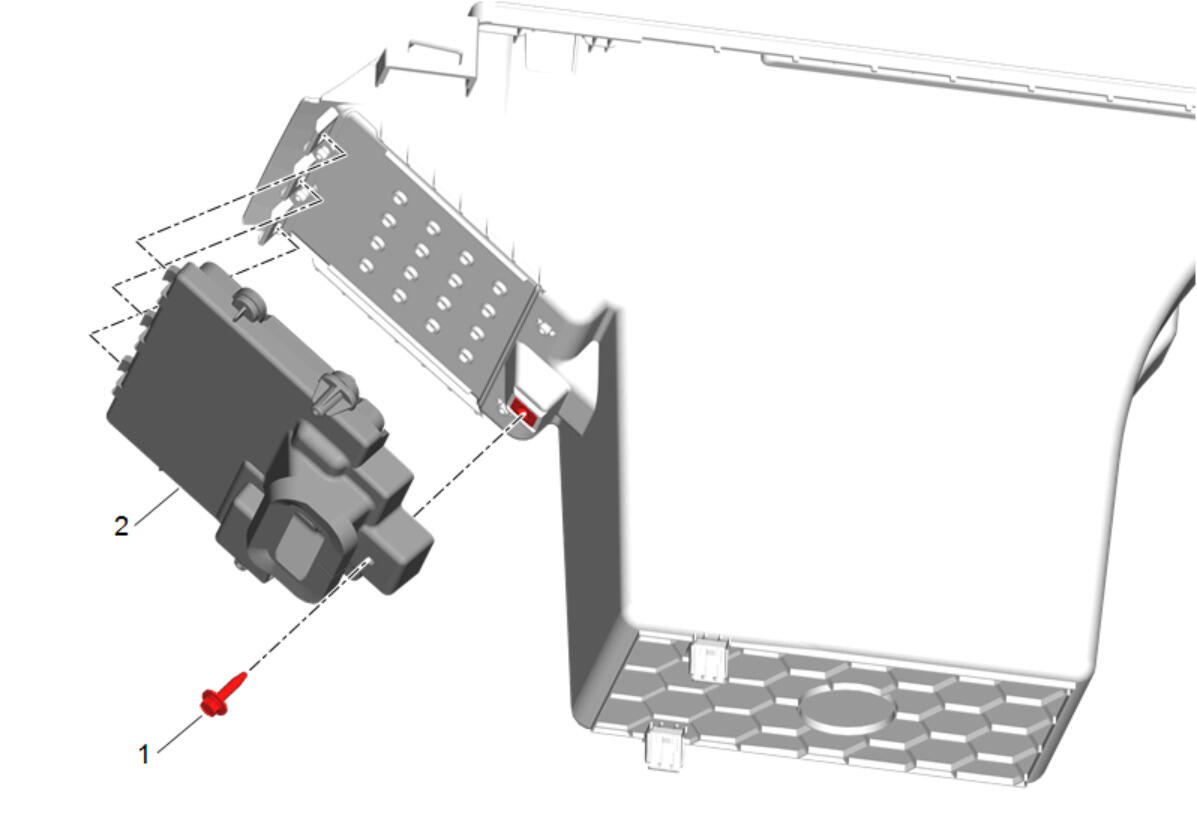

  3. GM5060651Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bracket (2) - Install

  4. Wireless Charging System Module Bracket Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

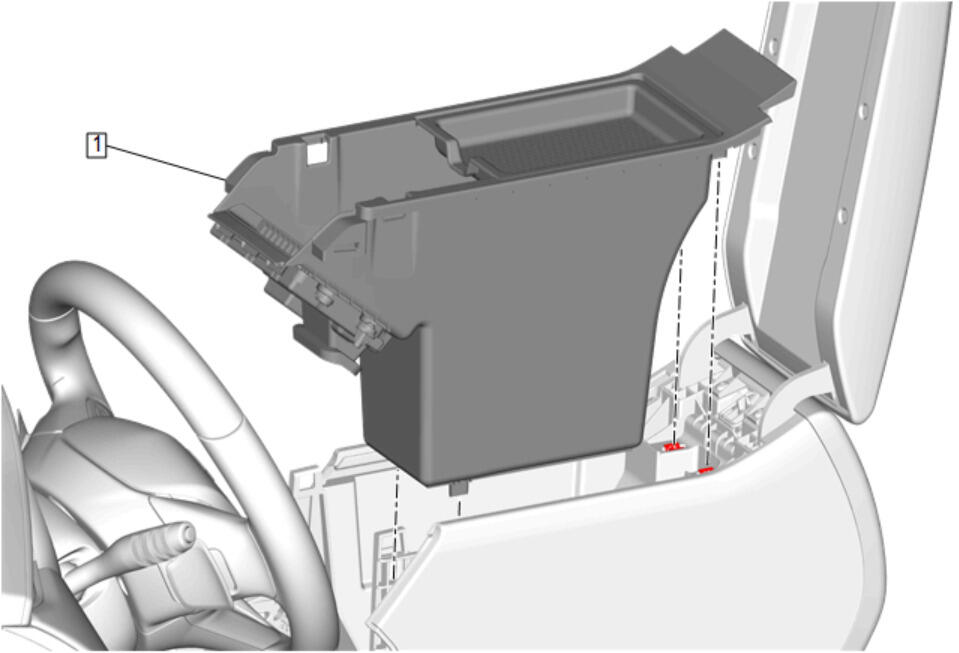

  5. GM5062967Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Install - Front Floor Console Compartment Replacement
