Installation Procedure

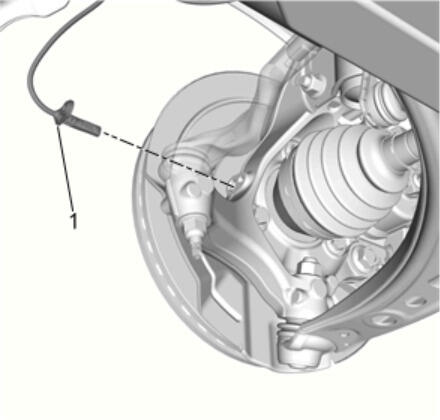

  1. Wheel Speed Sensor (1) - Install
    GM4214177Courtesy of GENERAL MOTORS COMPANY

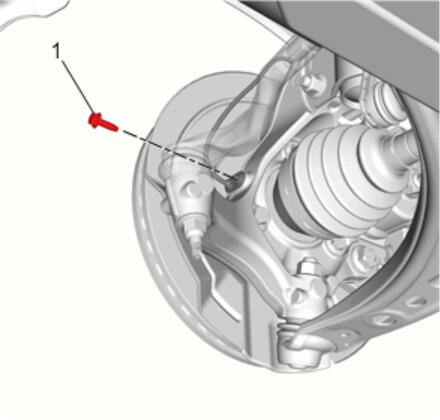

  2. Wheel Speed Sensor Bolt (1) - Install and tighten 9 N.m (80 lb in)
    GM4214175Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  3. Retainer (1) @ Steering Knuckle - Secure

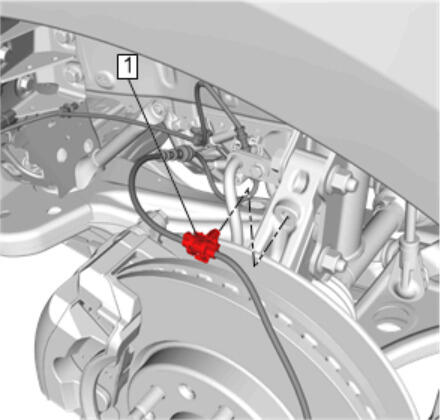

    GM4214174Courtesy of GENERAL MOTORS COMPANY
  4. Retainer (1) @ Front Brake Hose - Secure [2x]

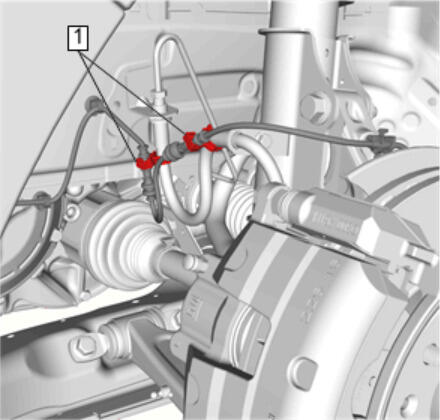

    GM4213881Courtesy of GENERAL MOTORS COMPANY
  5. Retainer (1) @ Side Rail - Secure [3x]

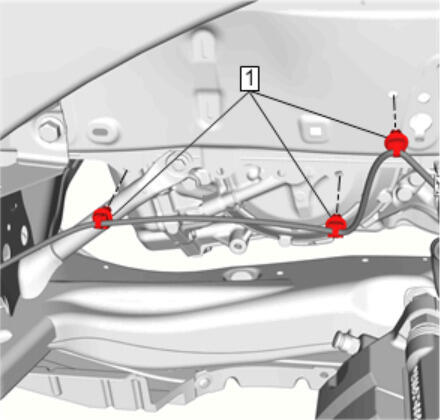

    GM4213880Courtesy of GENERAL MOTORS COMPANY
  6. Retainer (1) @ Radiator Support - Secure

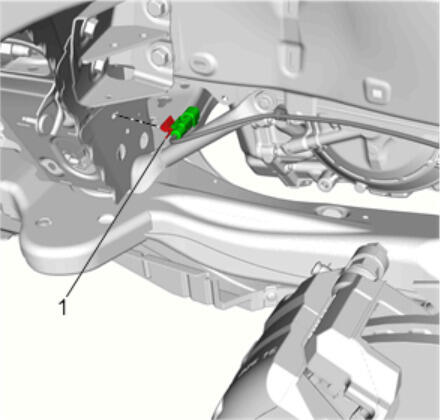

    GM4213876Courtesy of GENERAL MOTORS COMPANY
  7. Wheel Speed Sensor Electrical Connector - Connect
  8. Install the appropriate front wheelhouse liner
  9. Verify the repair is complete. Diagnostic Repair Verification
