Liftgate Close Switch Replacement

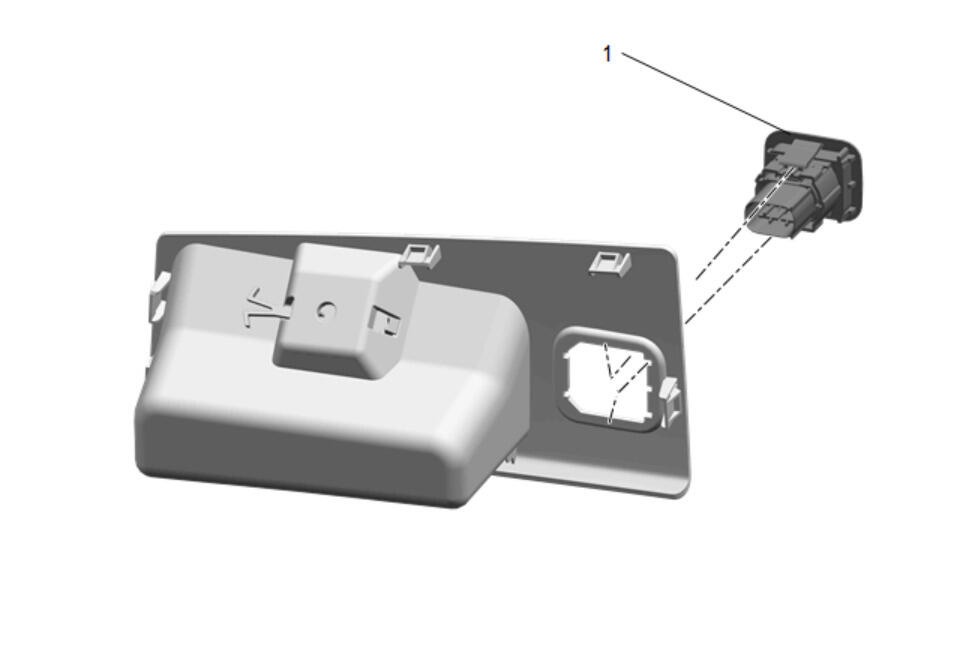

GM5081836Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
Preliminary Procedure
Liftgate Trim Finish Panel Pull Cup Replacement
1 Liftgate Close Switch

Procedure

  1. Disconnect the electrical connector.
  2. Release the liftgate close switch retainers and push out from the liftgate trim finish panel pull cup.
