Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Chevrolet/GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement (Chevrolet/GMC)Front Floor Console Rear Trim Panel Replacement (Storage Structure) .

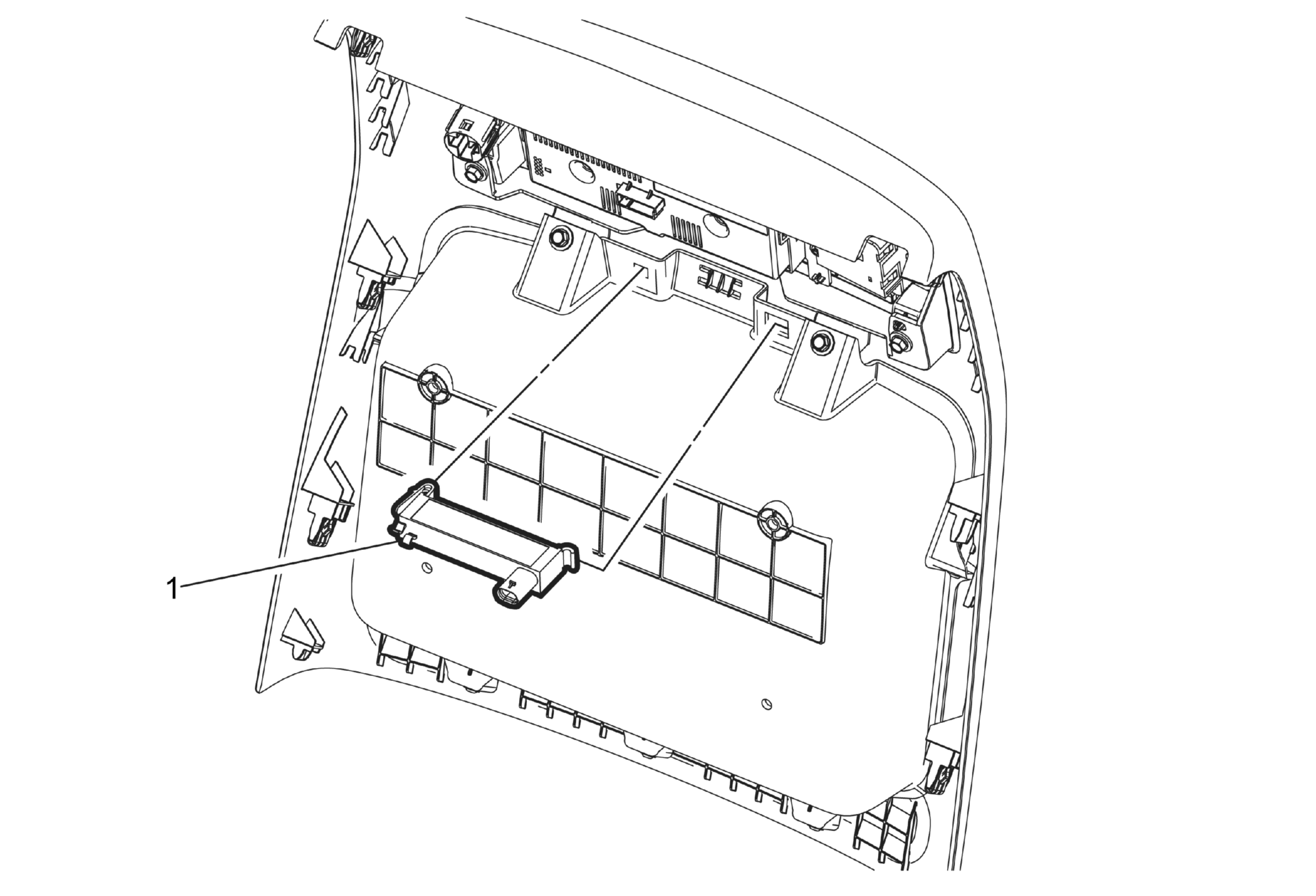

1	Ignition Lock Key Transmitter Antenna Procedure  Unsnap antenna from the floor console trim panel.
