Installation Procedure

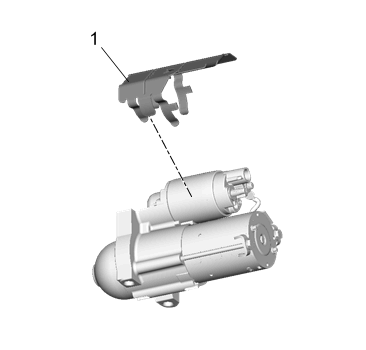

  1. GM4329497Courtesy of GENERAL MOTORS COMPANY

    Starter Heat Shield (1) - Install

  2. GM4212057Courtesy of GENERAL MOTORS COMPANY

    Starter (2) - Install

    3. CAUTION:

    Refer to Fastener Caution

  3. Starter Mounting Bolt (1) - Install and tighten [2X] 50 N.m (37 lb ft)
  4. Lower the vehicle.
  5. GM4212056Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  6. Generator Battery Control Wiring Harness (3) - Install
  7. Generator Battery Control Wiring Harness Nut (2) - Install and tighten 9 N.m (80 lb in)
