Removal Procedure

  1. Generator - Remove - Generator Replacement (L96) Generator Replacement (L83, L86)
  2. Air Conditioning Compressor Belt - Remove - Air Conditioning Compressor Belt Replacement

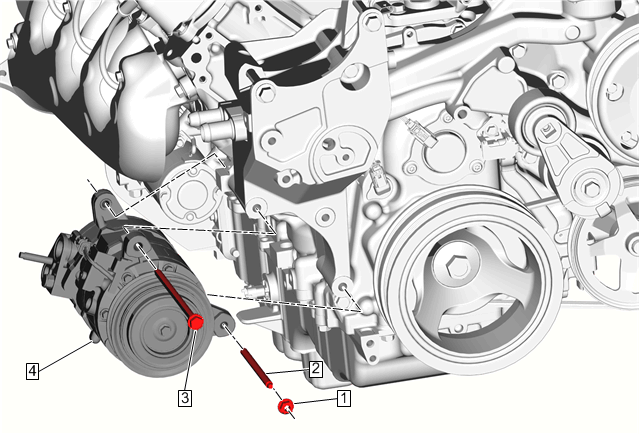

  3. GM3238789Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Nut (1) - Remove

  4. Air Conditioning Compressor Stud (2) - Remove
  5. Air Conditioning Compressor Bolt (3) - Remove
    6. NOTE:

    Do not remove air conditioning compressor hose from air conditioning compressor.

  6. Air Conditioning Compressor (4) - Reposition

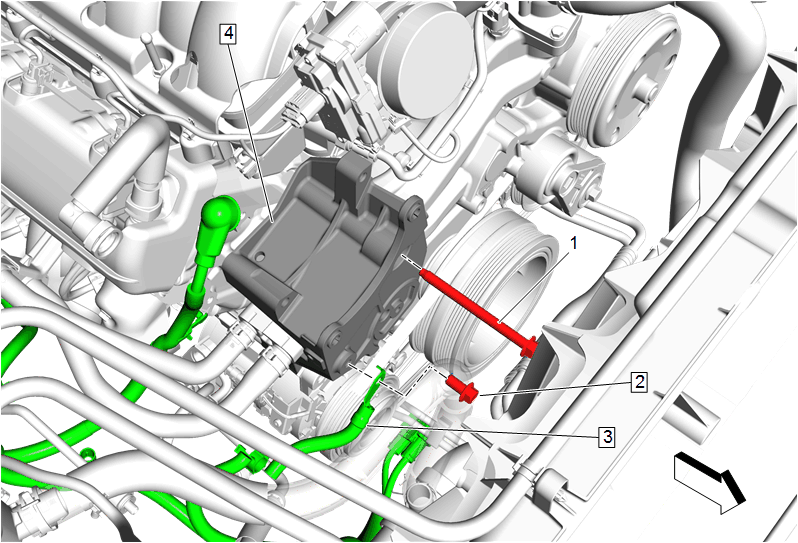

  7. GM5000611Courtesy of GENERAL MOTORS COMPANY

    Generator Battery Control Wiring Harness Ground Cable Bolt (2) - Remove

  8. Generator Battery Control Wiring Harness Ground Cable (3) - Remove
  9. Generator Bracket Bolt (1) - Remove
  10. Generator Bracket (4) - Remove
