Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

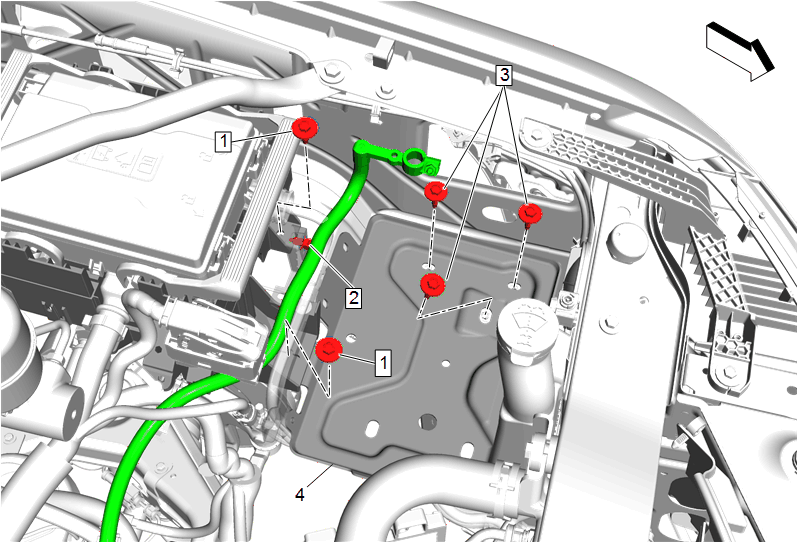

Auxiliary Battery Tray (4) - Install

CAUTION:

Refer to Fastener Caution

Battery Tray Bolt (3) - Install and tighten [3x] 9 N.m (80 lb in)
Engine Wiring Harness Fuse Block Bracket Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
Retainer (2) - Engage
Courtesy of GENERAL MOTORS COMPANY

Engine Control Module Bracket (2) - Install Engine Control Module Bracket Replacement
