Intake Air Pressure and Temperature Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

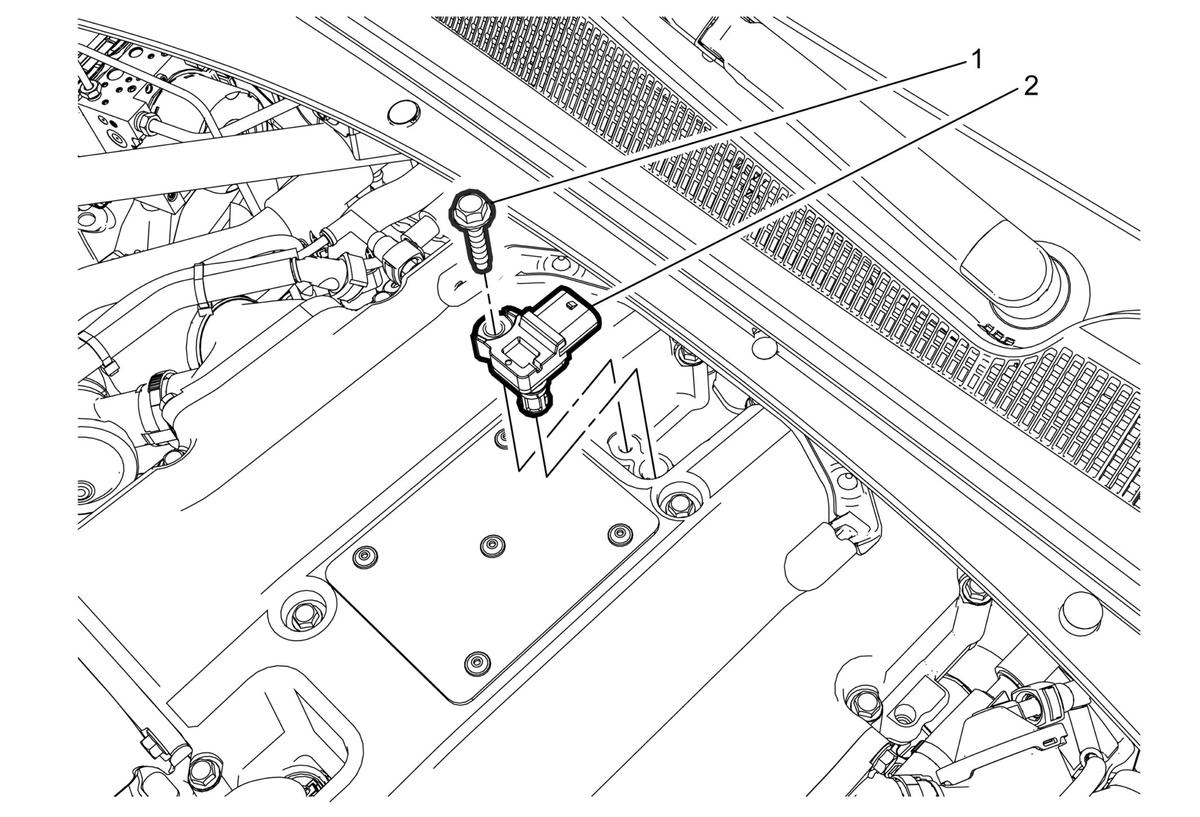

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement (LF3) , or Intake Manifold Cover Replacement (LGX) Disconnect the electrical connector.
1	Intake Air Pressure and Temperature Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Intake Air Pressure and Temperature Sensor

Callout

Component Name

Preliminary Procedures

Intake Air Pressure and Temperature Sensor Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Intake Air Pressure and Temperature Sensor
