Installation Procedure

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

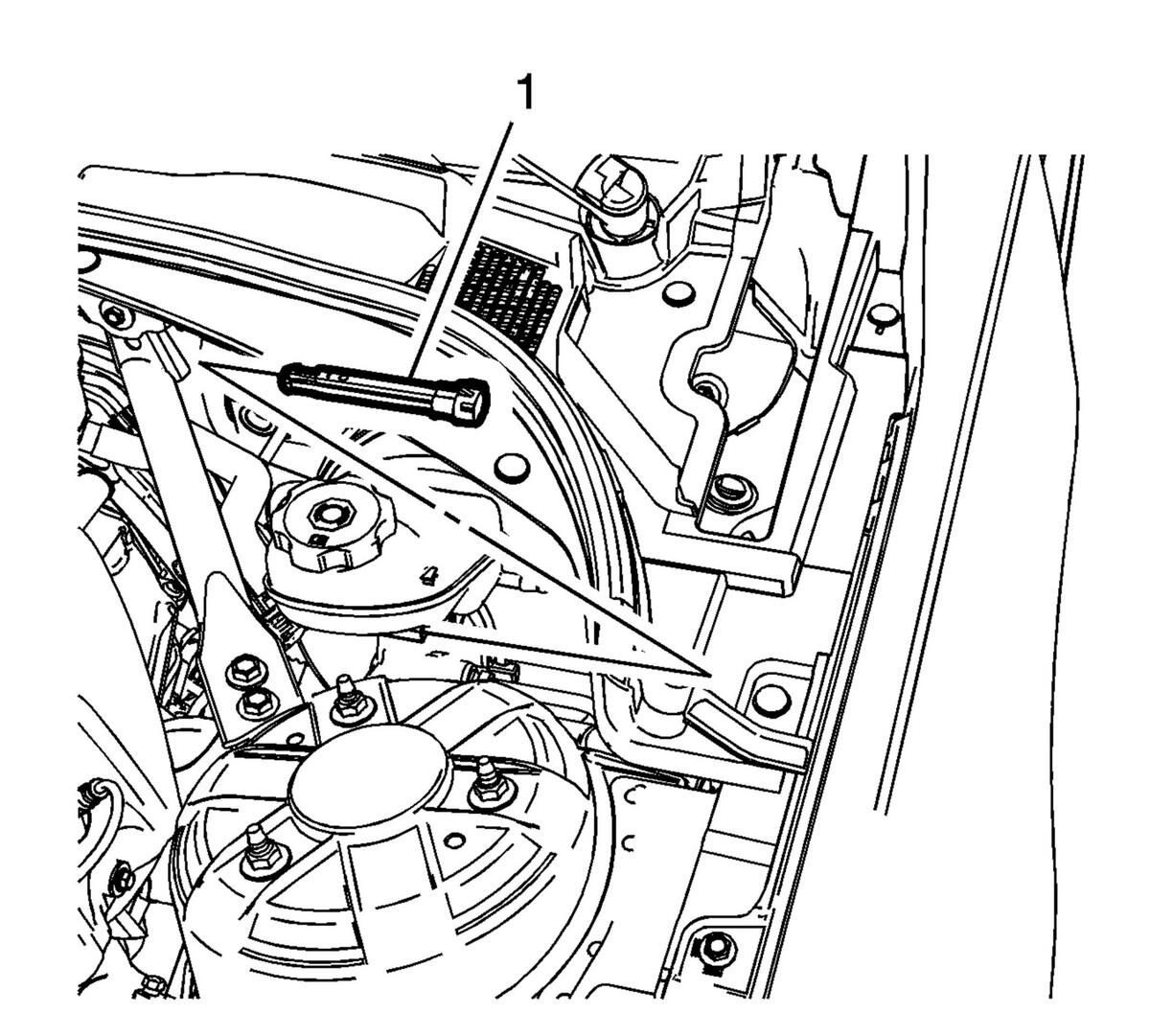

  1. GM2815580Courtesy of GENERAL MOTORS COMPANY

    Install the brake fluid level indicator switch (1).

  2. Ensure the locking tabs of the brake fluid level indicator switch are fully engaged in the master cylinder reservoir.
  3. Connect the brake fluid level indicator switch electrical connector.
