Electronic Suspension Front Position Sensor Replacement: Installation
- NOTE:
Ensure that the level senor is properly seated on the frame rail.

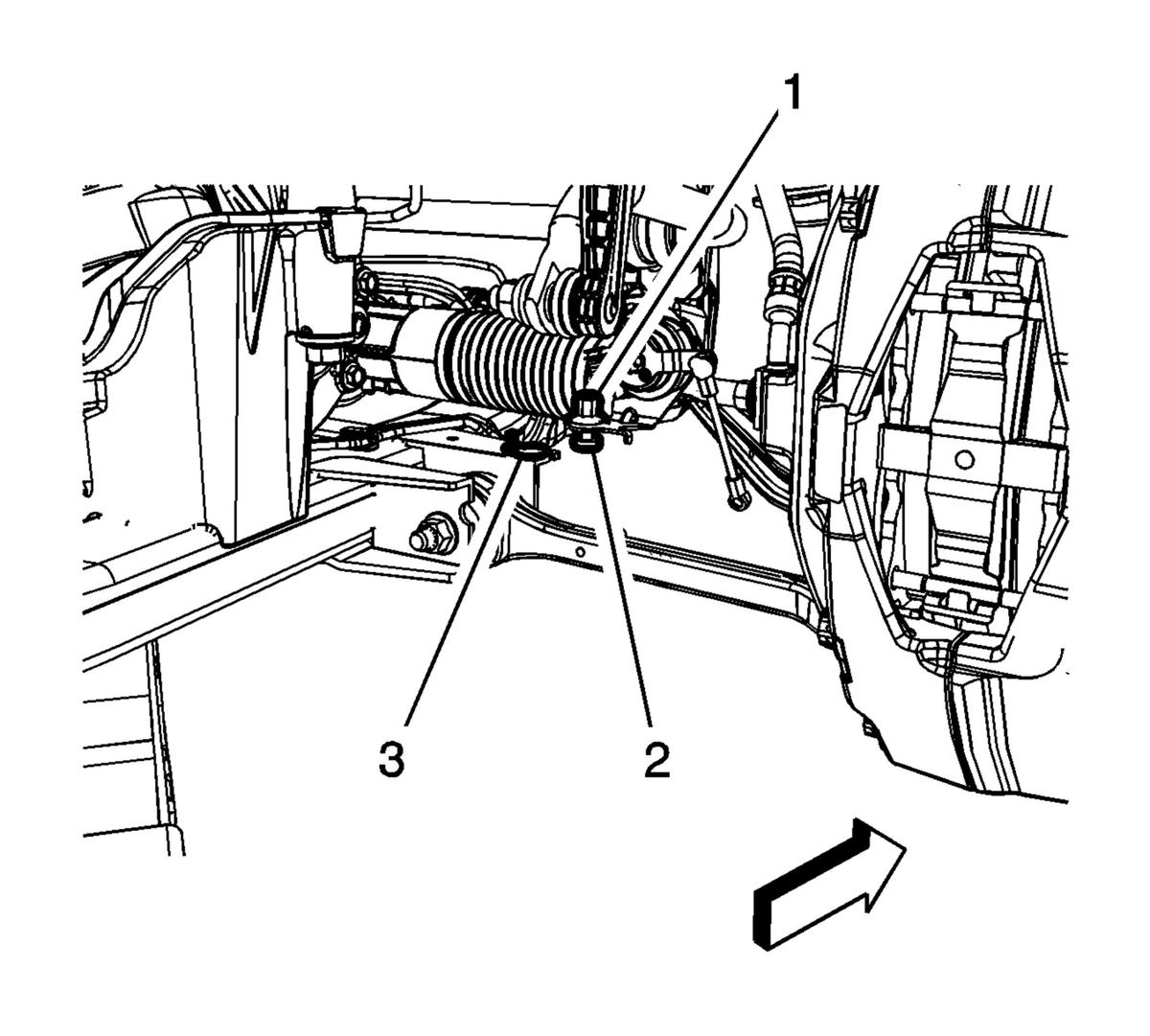

Position the level sensor stud (2) into the slot in frame rail (3) slide it toward the engine.
- Tighten the level senor nut (1) to 9 N.m (80 lb in).

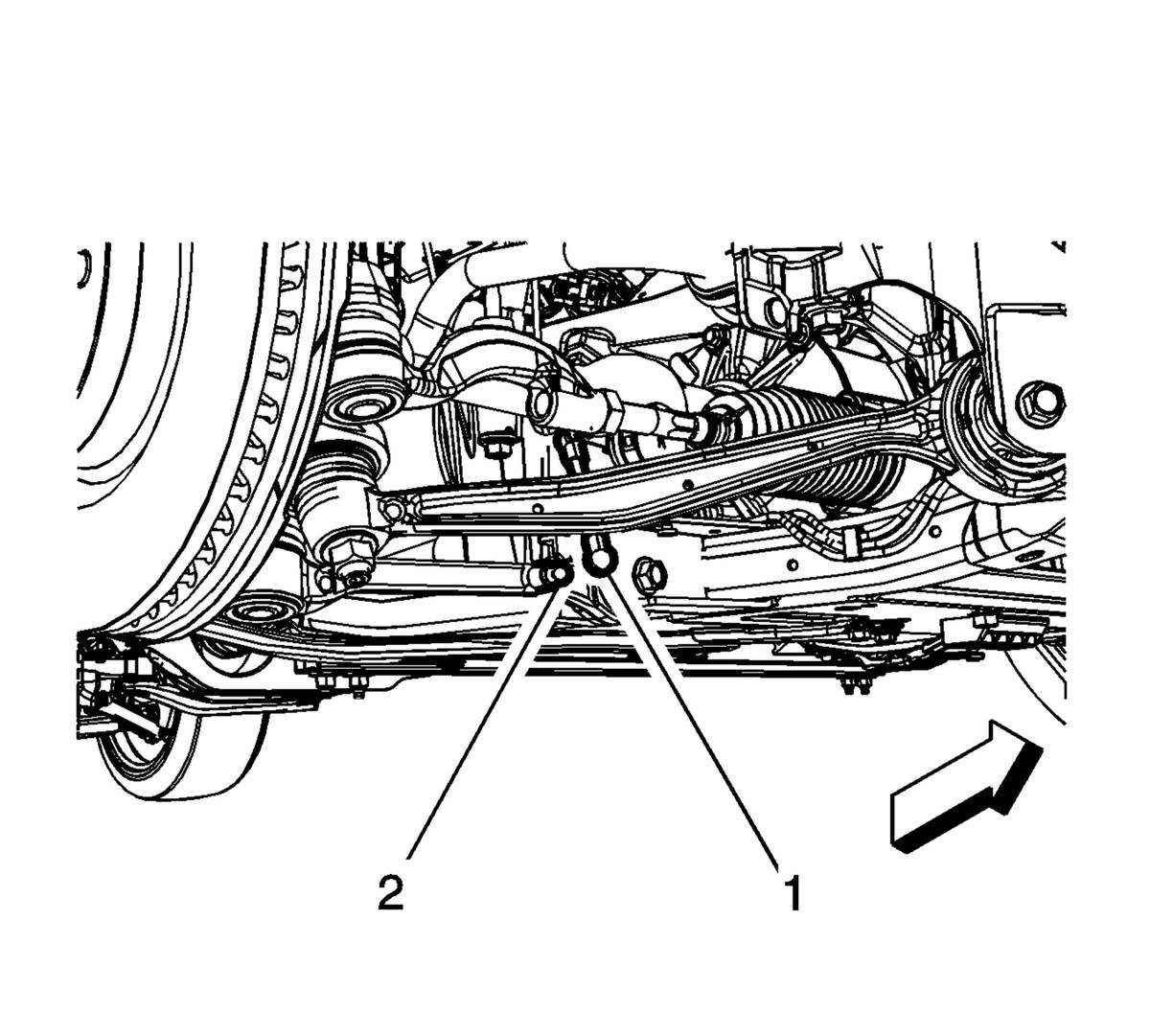

Install the level sensor link (1) on the lower control arm ball stud (2).

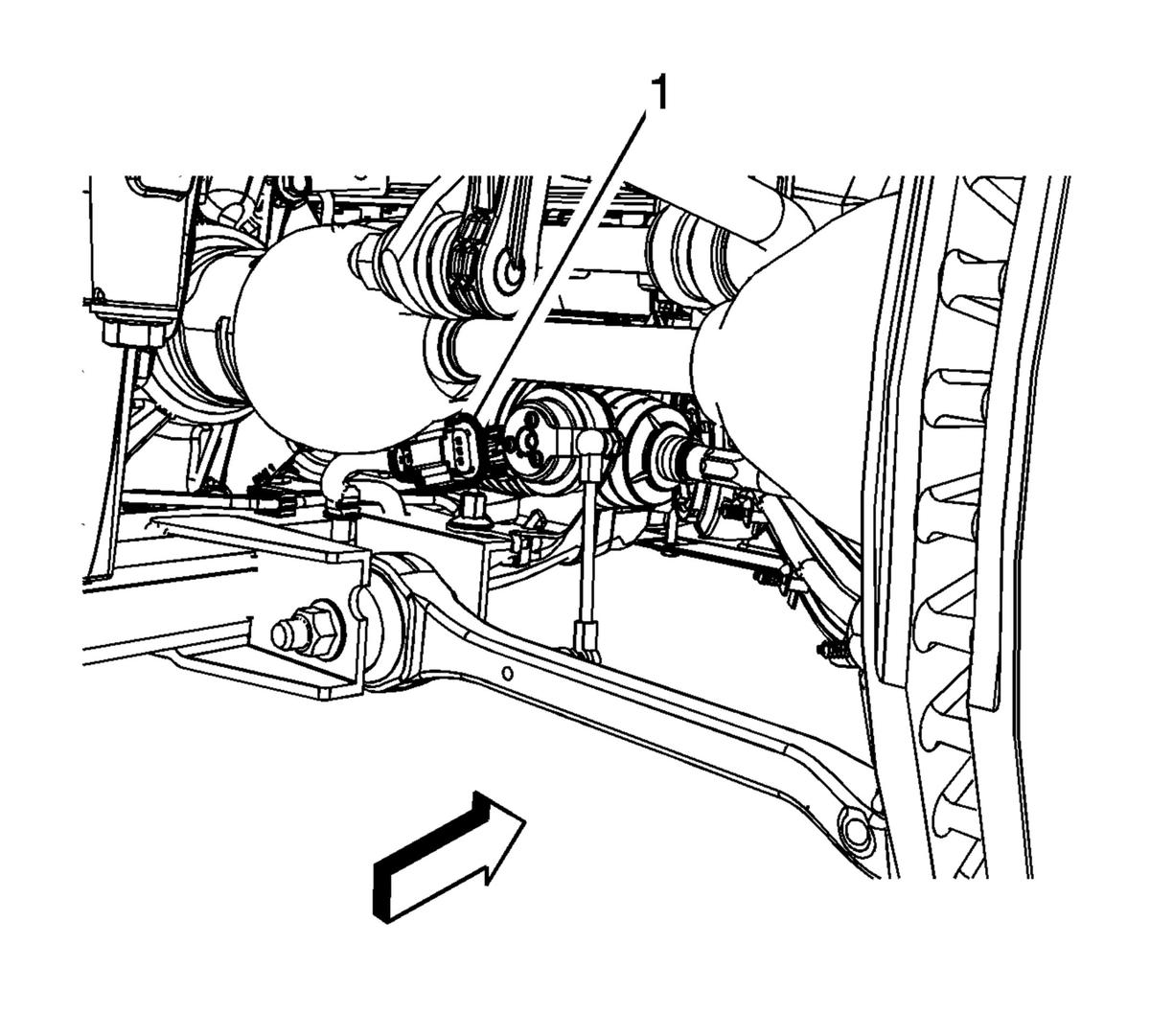

Reconnect the level sensor electrical connector (1) to the electronic level sensor.
- Install the right front wheel house liner. Refer to Front Wheelhouse Liner Replacement (CTS) , or Front Wheelhouse Liner Replacement (CTS-V) .
- Remove the support and lower the vehicle.
- Reprogram the level sensor.
CAUTION:
Refer to Fastener Caution .
